18–4
F4–04DAS–2 4-Channel Isolated 0–5V, 0–10V Output

Setting the Module Jumpers

See the Errata
Sheet at the
beginning of this file.
The module jumpers
shown here were
replaced with jumper
wires.
Output Range
Selection

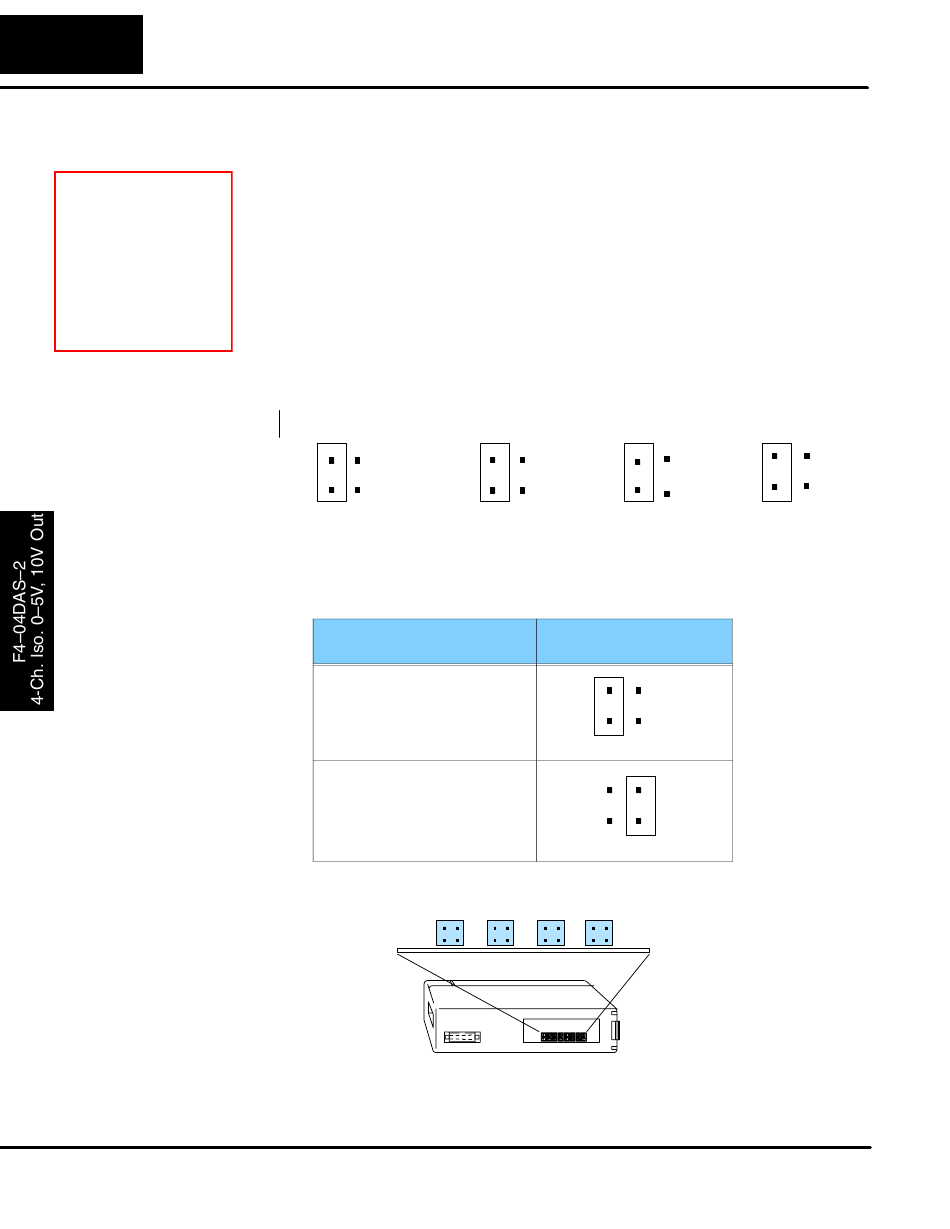

If you examine the rear of the module, you will notice several jumpers. These
jumpers are used to select the signal range for each channel.
The signal range choices are 0 – 5 V and 0 – 10 V. The jumper settings for these
signal ranges are shown in the table below.
The module is set at the factory for a 0–5V signal on all four channels. If this is
acceptable you do not have to change any of the jumpers. The following diagram
shows how the jumpers are set from the factory.
Signal Range Selection For Each Channel
Channel 1
Use the following table to select the output voltage range for each channel.
Channel Signal Range
0–5 VDC
Place Jumper on LEFT
0–10 VDC
Place Jumper on RIGHT
Channel 2 Channel 3
Jumper Setting
Ch1 Ch2 Ch3 Ch4
Channel 4
