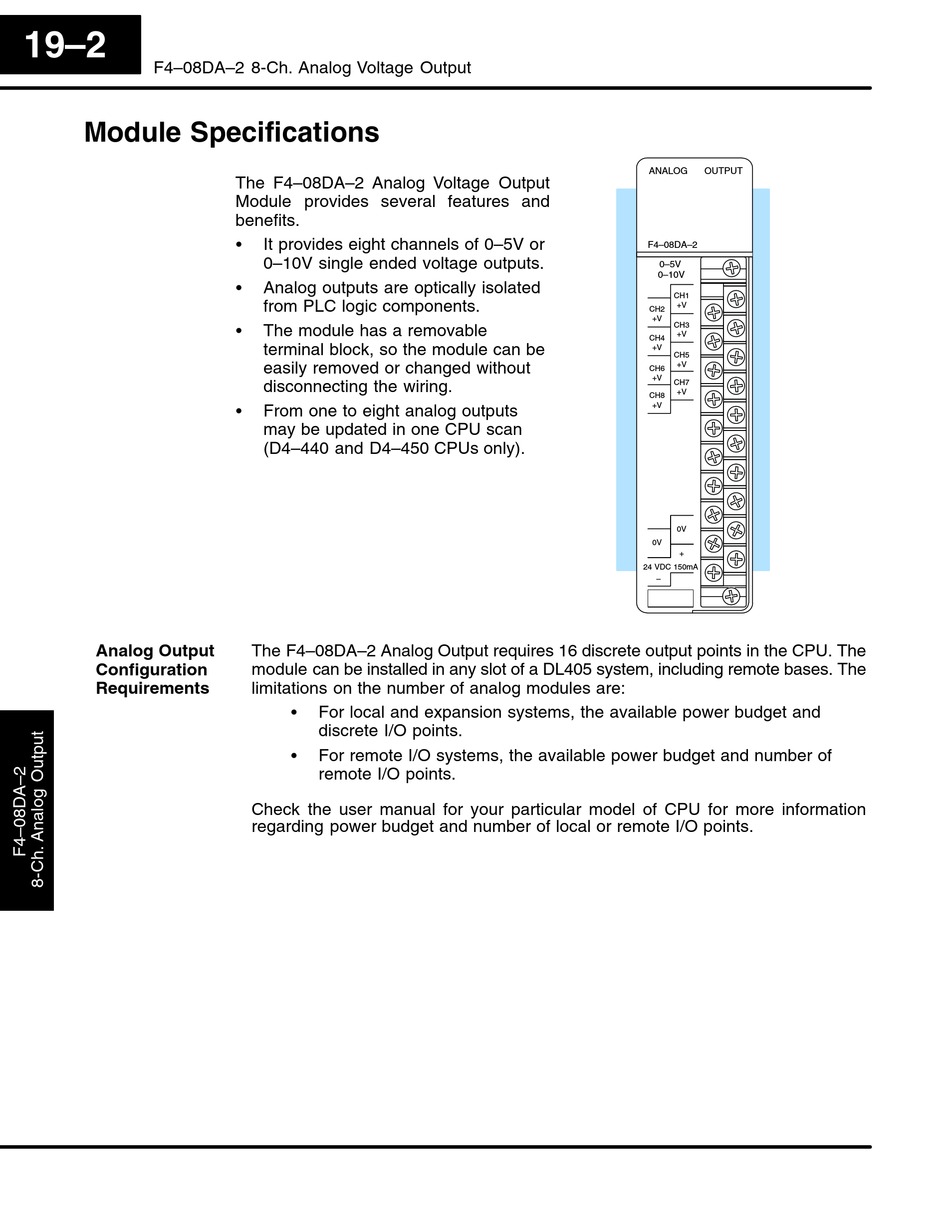

F4–08DA–2 8-Ch. Analog Voltage Output
Module Specifications
Analog Output
Configuration
Requirements
The F4–08DA–2 Analog Voltage Output
Module provides several features and
benefits.
S
It provides eight channels of 0–5V or
0–10V single ended voltage outputs.
S
Analog outputs are optically isolated
from PLC logic components.
S
The module has a removable
terminal block, so the module can be
easily removed or changed without
disconnecting the wiring.
S
From one to eight analog outputs
may be updated in one CPU scan
(D4–440 and D4–450 CPUs only).
The F4–08DA–2 Analog Output requires 16 discrete output points in the CPU. The
module can be installed in any slot of a DL405 system, including remote bases. The
limitations on the number of analog modules are:
S
For local and expansion systems, the available power budget and
discrete I/O points.
S
For remote I/O systems, the available power budget and number of
remote I/O points.
Check the user manual for your particular model of CPU for more information
regarding power budget and number of local or remote I/O points.
ANALOG OUTPUT
F4–08DA–2
0–5V
0–10V
CH1
+V
CH2
+V
CH3
+V
CH4
+V
CH5
+V
CH6
+V
CH7
+V
CH8
+V
0V
0V
+
24 VDC 150mA
–
