4–2
F4-04ADS 4-Channel Isolated Analog Input

Module Specifications

Analog Input
Configuration
Requirements
The F4-04ADS 4-Channel Isolated Analog Input
module provides several features and benefits.
S
It accepts four differential voltage or
current inputs.
S
Inputs have channel-to-channel
isolation.
S
Analog inputs are also optically isolated
from PLC logic components.
S
The module has a removable terminal
block, so the module can be easily
removed or changed without
disconnecting the wiring.
The F4–04ADS Analog Input module requires 16 discrete input points from the
CPU. The module can be installed in any slot of a DL405 system, including remote
bases. The limitations on the number of analog modules are:
S
For local and expansion systems, the available power budget and
discrete I/O points.
S
For remote I/O systems, the available power budget and number of
remote I/O points.
Check the user manual for your particular model of CPU for more information
regarding power budget and number of local or remote I/O points.

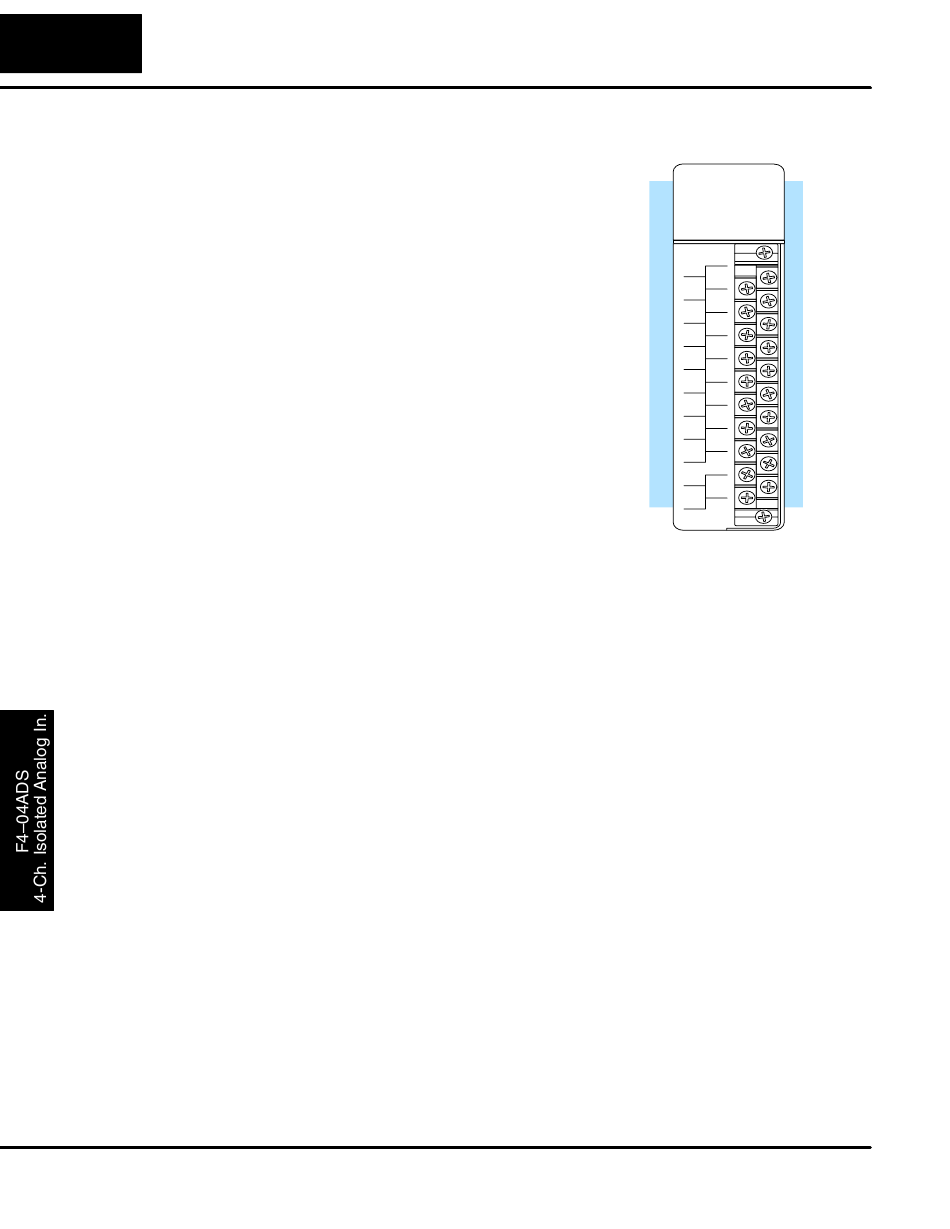

ANALOG INPUT
F4–04ADS
0–10VDC
0–5VDC
4mA–20mA
CH1
+V
CH1
C
CH1
R
CH2
+V
CH2
C
CH2
R
CH3
+V
CH3
C
CH3
R
CH4
+V
CH4
C
CH4
R
24VDC 0.5A
24
V
0
V
