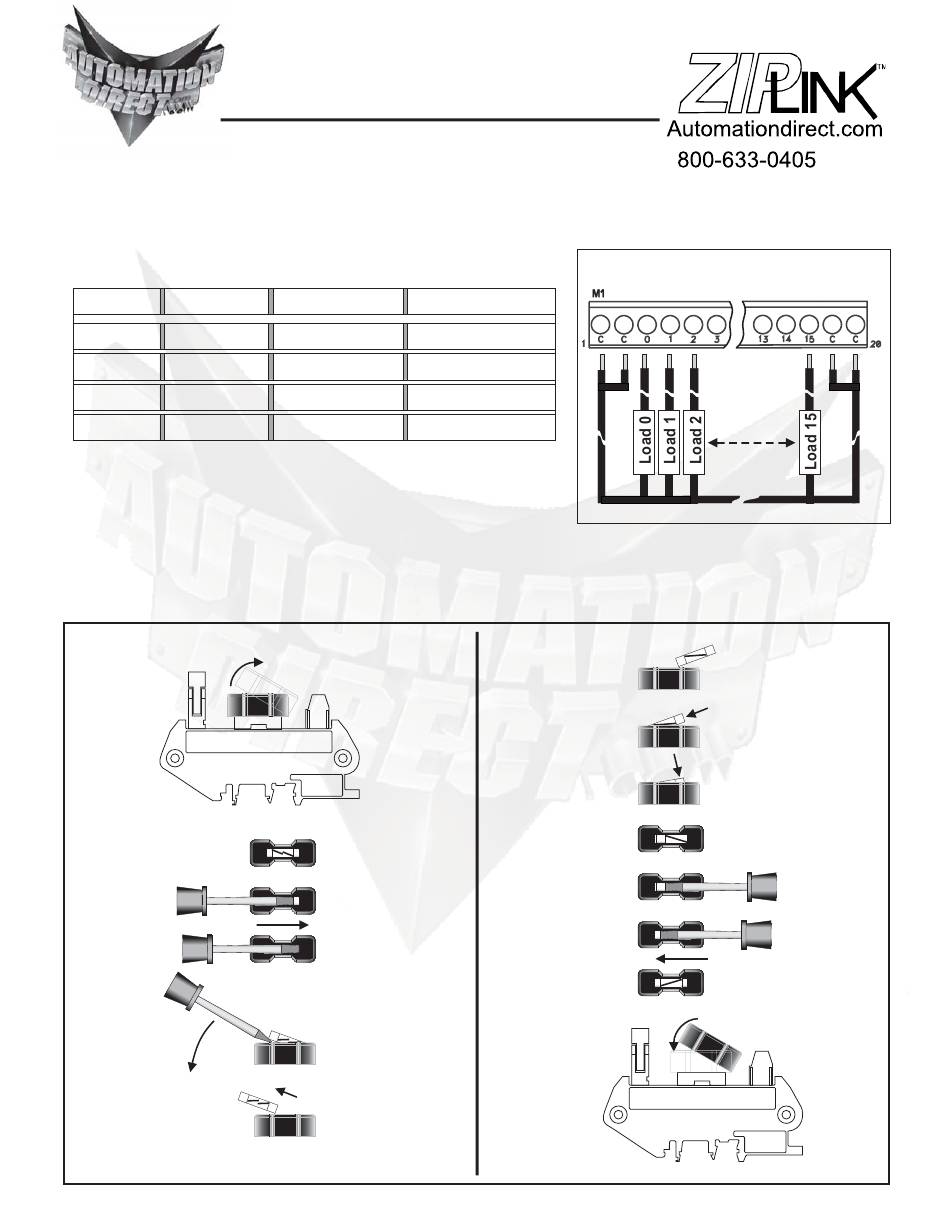

Fuse Connector Module ZL-CM16TF2
Cables and PLC I/O Modules
PLC Type
Cable Type
DL305
ZL-3CBL3FRD16
DL405
ZL-4CBL2
DL405
ZL-4CBL2
DL405
ZL-4CBL2
WARNING : WIRE ONLY ACCORDING TO WIRING DIAGRAMS SHOWN BELOW TO
AVOID CAUSING DAMAGE TO THE PLC OR CONNECTOR MODULE. MATCH THE
CORRECT COMBINATION OF CABLE, PLC I/O MODULE, AND CONNECTOR MODULE AS SHOWN.
Fuse Installation And Removal
REMOVAL
ZL-CM16TF2
PLC I/O Module Type
Connector Module Type
D3-16TD1-2
ZL-CM16TF2
D4-16TA
ZL-CM16TF2
D4-16TD1
ZL-CM16TF2
D4-16TD2
ZL-CM16TF2
Wiring Diagram Output
INSTALLATION
PAG. 1
-
-
-
-
REV 1.1
Advertisement
Related Manuals for Automation Direct ZL-3CBL3FRD16
Summary of Contents for Automation Direct ZL-3CBL3FRD16
- Page 1 Fuse Connector Module ZL-CM16TF2 Cables and PLC I/O Modules Wiring Diagram Output PLC Type Cable Type PLC I/O Module Type Connector Module Type D3-16TD1-2 DL305 ZL-3CBL3FRD16 ZL-CM16TF2 DL405 ZL-4CBL2 D4-16TA ZL-CM16TF2 D4-16TD1 ZL-CM16TF2 DL405 ZL-4CBL2 DL405 ZL-4CBL2 D4-16TD2 ZL-CM16TF2 WARNING : WIRE ONLY ACCORDING TO WIRING DIAGRAMS SHOWN BELOW TO AVOID CAUSING DAMAGE TO THE PLC OR CONNECTOR MODULE.
- Page 2 I/O Module Output Octal Address 15 corresponds to FUSE 13 I/O Module Output Octal Address 16 corresponds to FUSE 14 I/O Module Output Octal Address 17 corresponds to FUSE 15 Cable ZL-3CBL3FRD16 I/O Module Common corresponds to FUSE FC ZL-CM16TF2...
- Page 3 Wiring Diagram power supply and cable PLC DL 405 Type D4-16TD1 DC Output I/O Module I/O Module Output Octal Adress 0 corresponds to FUSE 0 I/O Module Output Octal Adress 1 corresponds to FUSE 1 I/O Module Output Octal Adress 2 corresponds to FUSE 2 I/O Module Output Octal Adress 3 corresponds to FUSE 3 I/O Module Output Octal Adress 4 corresponds to FUSE 4 I/O Module Output Octal Adress 5 corresponds to FUSE 5...
