F4–04AD 4-Channel Analog Input
Input Assignments
for 32 Input Mode
Active Channel
Indicator Inputs,
32 Input Mode
In this mode, the F4–04AD module requires 32-point discrete input points. These
inputs provide:
S
individual active channel bits for each channel.
S
a digital representation of the analog signal in various data formats.
S
individual sign bits for each channel.
S
individual broken transmitter detection bits for each channel.

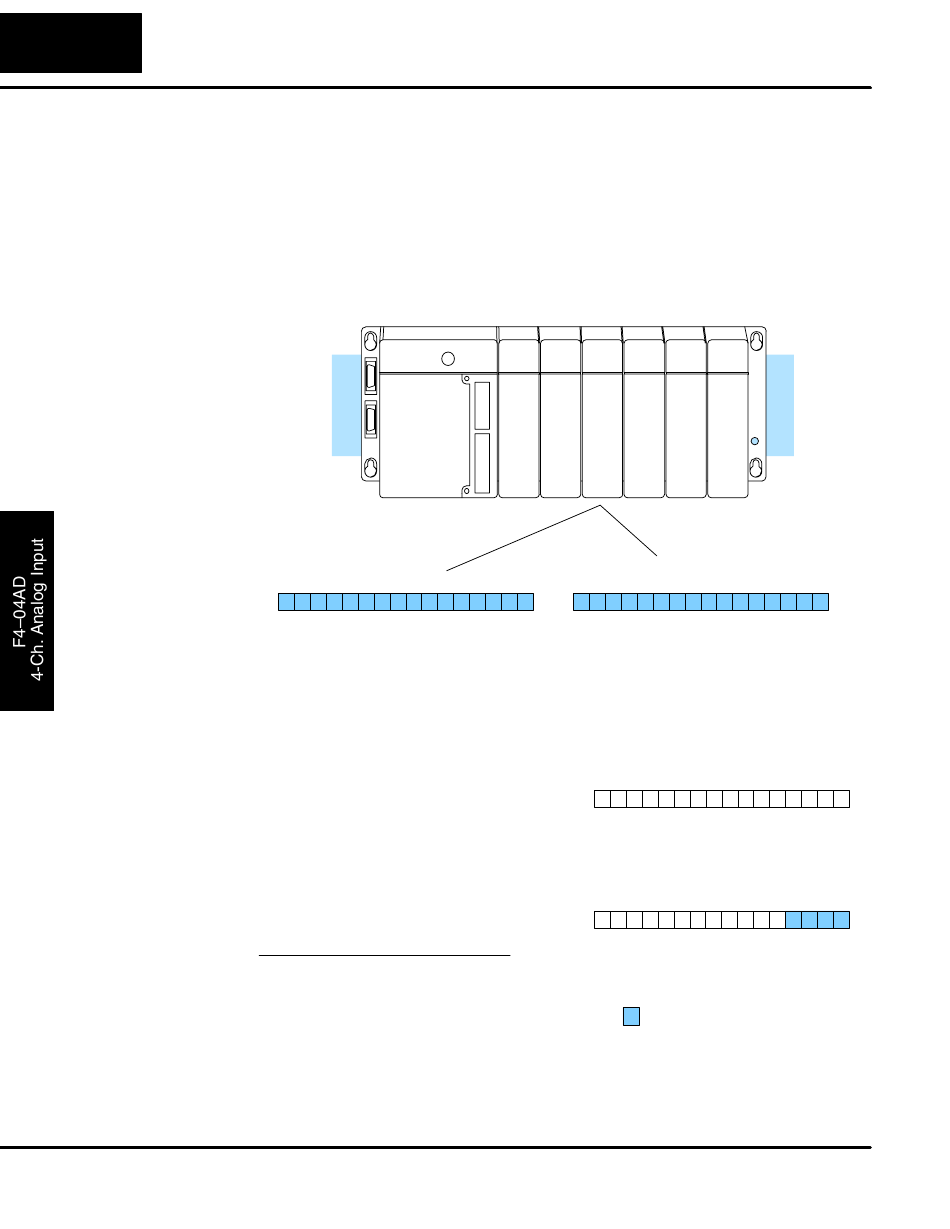

Since all input points are automatically mapped into V-memory, it is very easy to
determine the location of the two data words that will be assigned to the module.
V40402
MSB
Bit 15 14 13 12 11 10 9 8 7 6
X X X
5 5 4
7 0 7
Within these data word locations, the individual bits represent specific information
about the analog signal.
The first four input bits (0–3) of the upper
V-memory location indicate the active
channel. Each bit corresponds to a
single channel to indicate four possible
active channels.
automatically turns these bits on and off
each scan to indicate the active channel
for that scan.
Bits
Scan 3 2 1 0 Channel
N 0 0 0 1
N+1 0 0 1 0
N+2 0 1 0 0
N+3 1 0 0 0
N+4 0 0 0 1
F4–04AD
8pt 8pt 32pt
Input Input Input
X0 X10 X20
– – –
X7 X17 X57
