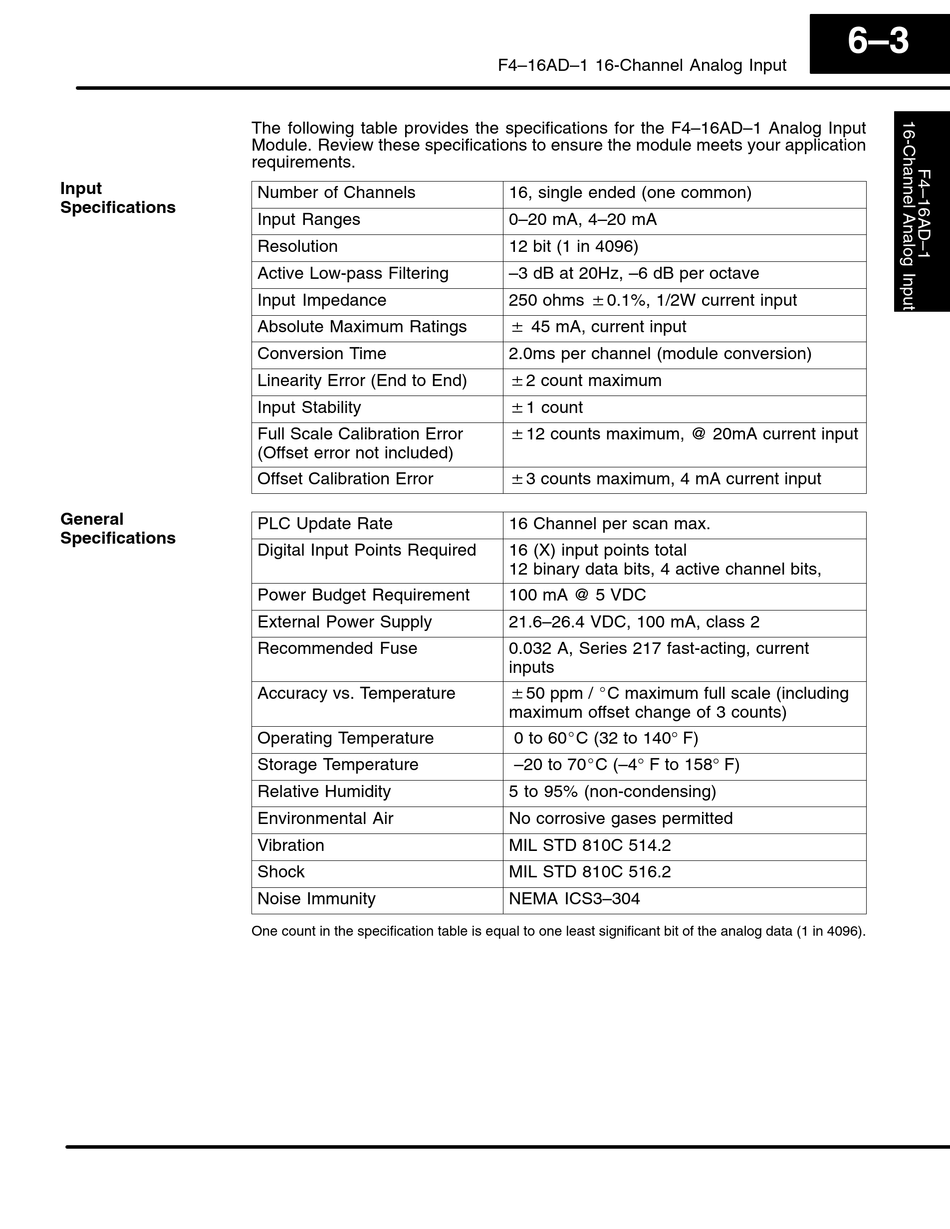

The following table provides the specifications for the F4–16AD–1 Analog Input
Module. Review these specifications to ensure the module meets your application
requirements.
Number of Channels
Input Ranges
Resolution
Active Low-pass Filtering
Input Impedance
Absolute Maximum Ratings
Conversion Time
Linearity Error (End to End)
Input Stability
Full Scale Calibration Error
(Offset error not included)
Offset Calibration Error
PLC Update Rate
Digital Input Points Required
Power Budget Requirement
External Power Supply
Recommended Fuse
Accuracy vs. Temperature
Operating Temperature
Storage Temperature
Relative Humidity
Environmental Air
Vibration
Shock
Noise Immunity
One count in the specification table is equal to one least significant bit of the analog data (1 in 4096).
