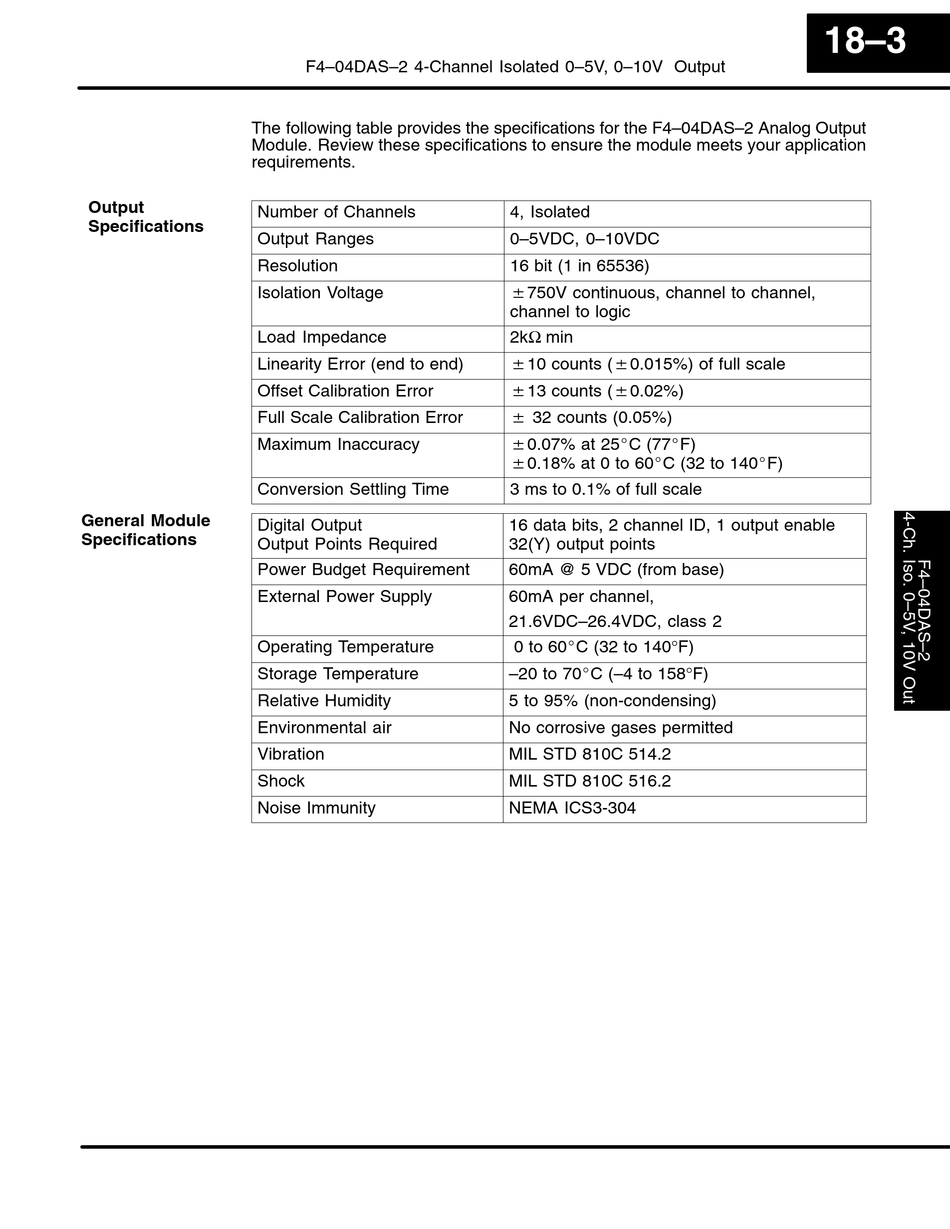

The following table provides the specifications for the F4–04DAS–2 Analog Output
Module. Review these specifications to ensure the module meets your application
requirements.
Output
Number of Channels
Specifications
Output Ranges
Resolution
Isolation Voltage
Load Impedance
Linearity Error (end to end)
Offset Calibration Error
Full Scale Calibration Error
Maximum Inaccuracy
Conversion Settling Time
General Module
Digital Output
Specifications
Output Points Required
Power Budget Requirement
External Power Supply
Operating Temperature
Storage Temperature
Relative Humidity
Environmental air
Vibration
Shock
Noise Immunity
F4–04DAS–2 4-Channel Isolated 0–5V, 0–10V Output
4, Isolated
0–5VDC, 0–10VDC
16 bit (1 in 65536)
$750V continuous, channel to channel,
channel to logic
2kΩ min
$10 counts ($0.015%) of full scale
$13 counts ($0.02%)
$ 32 counts (0.05%)
$0.07% at 25_C (77_F)
$0.18% at 0 to 60_C (32 to 140_F)
3 ms to 0.1% of full scale
16 data bits, 2 channel ID, 1 output enable
32(Y) output points
60mA @ 5 VDC (from base)
60mA per channel,
21.6VDC–26.4VDC, class 2
0 to 60_C (32 to 140°F)
–20 to 70_C (–4 to 158°F)
5 to 95% (non-condensing)
No corrosive gases permitted
MIL STD 810C 514.2
MIL STD 810C 516.2
NEMA ICS3-304
18–3
