15–2
F4–08DA–1 8-Ch. Analog Current Output

Module Specifications

Analog Output
Configuration
Requirements
The F4–08DA–1 Analog Current Output
Module provides several features and
benefits.
S
It provides eight channels of 4–20
mA single ended current outputs.
S
Analog outputs are optically isolated
from PLC logic components.
S
The module has a removable
terminal block, so the module can be
easily removed or changed without
disconnecting the wiring.
S
From one to eight analog outputs
may be updated in one CPU scan
(DL440 and DL450 CPUs only).
S
No jumper settings are required.
The F4–08DA–1 Analog Output requires 16 discrete output points in the CPU. The
module can be installed in any slot of a DL405 system, including remote bases. The
limitations on the number of analog modules are:
S
For local and expansion systems, the available power budget and
discrete I/O points.
S
For remote I/O systems, the available power budget and number of
remote I/O points.
Check the user manual for your particular model of CPU for more information
regarding power budget and number of local or remote I/O points.

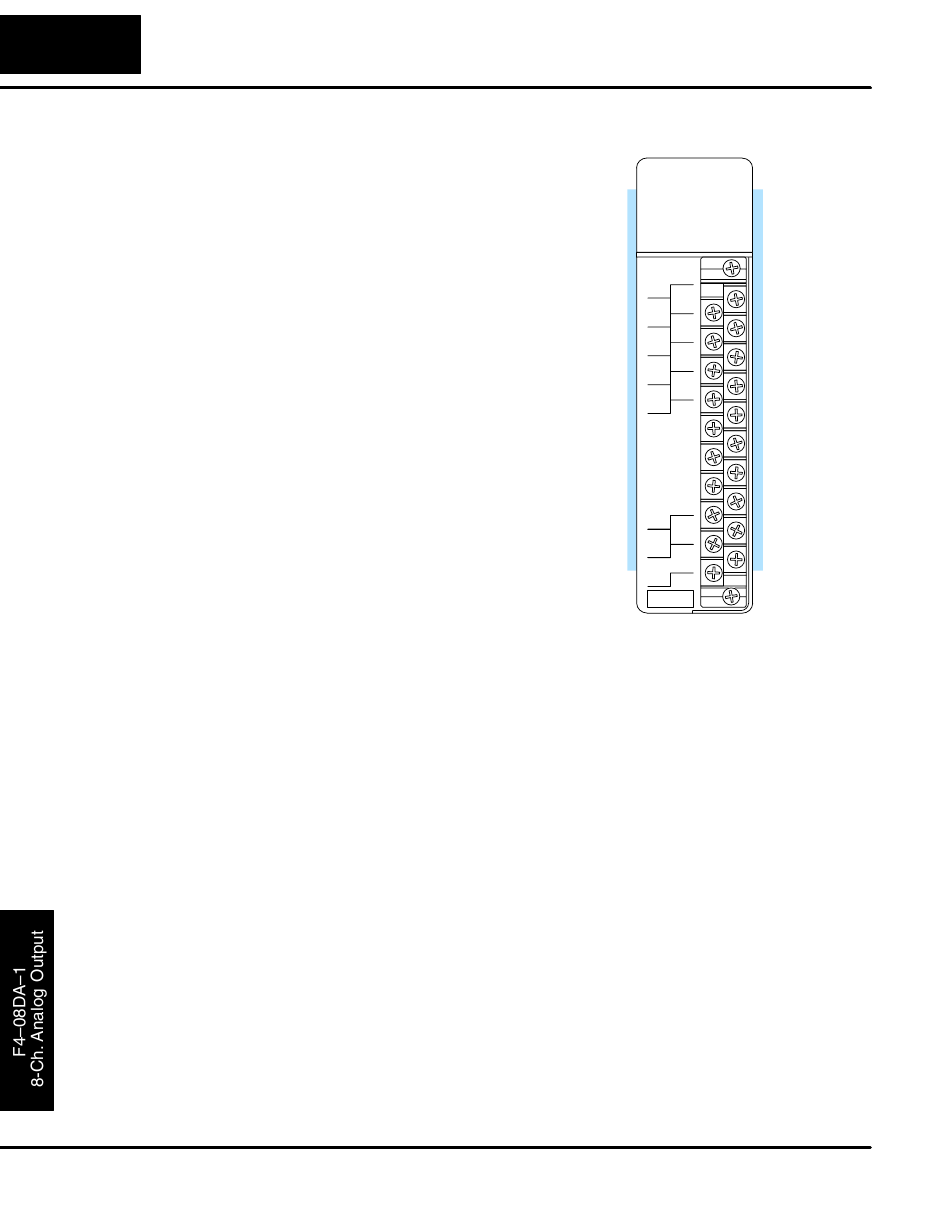

ANALOG OUTPUT
F4–08DA–1
4mA–20mA
CH1
–I
CH2
–I
CH3
–I
CH4
–I
CH5
–I
CH6
–I
CH7
–I
CH8
–I
0V
0V
+
24 VDC 0.1 A
–
