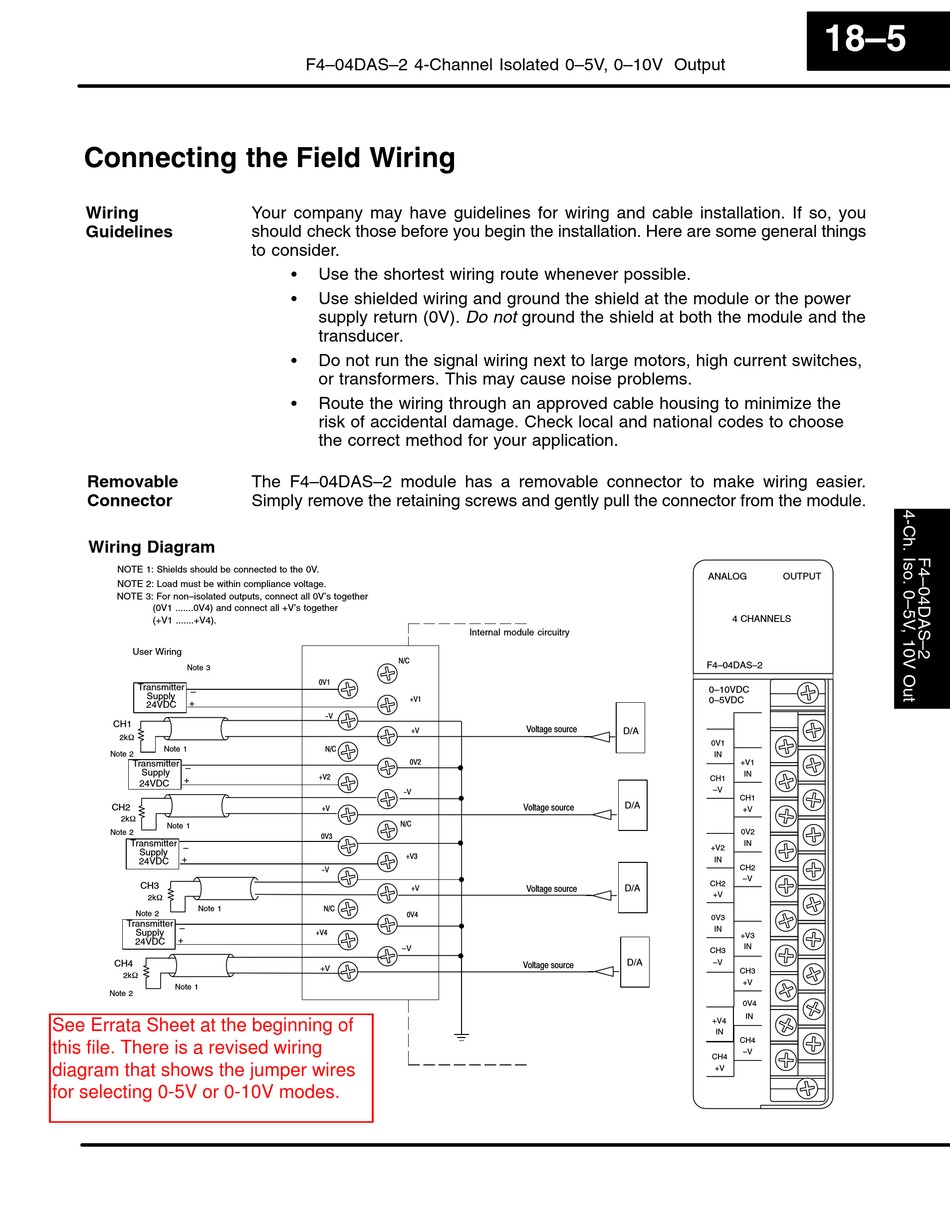

Connecting the Field Wiring

Wiring
Guidelines
Removable
Connector
Wiring Diagram
NOTE 1: Shields should be connected to the 0V.
NOTE 2: Load must be within compliance voltage.
NOTE 3: For non–isolated outputs, connect all 0V's together
(0V1 .......0V4) and connect all +V's together
(+V1 .......+V4).
User Wiring
Note 3
Transmitter
–
Supply
+
24VDC
CH1
2kW
Note 1
Note 2
Transmitter
–
Supply
+
24VDC
CH2
2kW
Note 1
Note 2
Transmitter
–
Supply
+
24VDC
CH3
2kW
Note 1
Note 2
Transmitter
–
Supply
+
24VDC
CH4
2kW
Note 1
Note 2
See Errata Sheet at the beginning of
this file. There is a revised wiring
diagram that shows the jumper wires
for selecting 0-5V or 0-10V modes.
F4–04DAS–2 4-Channel Isolated 0–5V, 0–10V Output
Your company may have guidelines for wiring and cable installation. If so, you
should check those before you begin the installation. Here are some general things
to consider.
S
Use the shortest wiring route whenever possible.
S
Use shielded wiring and ground the shield at the module or the power
supply return (0V). Do not ground the shield at both the module and the
transducer.
S
Do not run the signal wiring next to large motors, high current switches,
or transformers. This may cause noise problems.
S
Route the wiring through an approved cable housing to minimize the
risk of accidental damage. Check local and national codes to choose
the correct method for your application.
The F4–04DAS–2 module has a removable connector to make wiring easier.
Simply remove the retaining screws and gently pull the connector from the module.
N/C
0V1
+V1
-V
+V
N/C
0V2
+V2
-V
+V
N/C
0V3
+V3
-V
+V
N/C
0V4
+V4
–V
+V
Internal module circuitry
Voltage source
D/A
Voltage source D/A
Voltage source
D/A
D/A
Voltage source
18–5
ANALOG OUTPUT
4 CHANNELS
F4–04DAS–2
0–10VDC
0–5VDC
