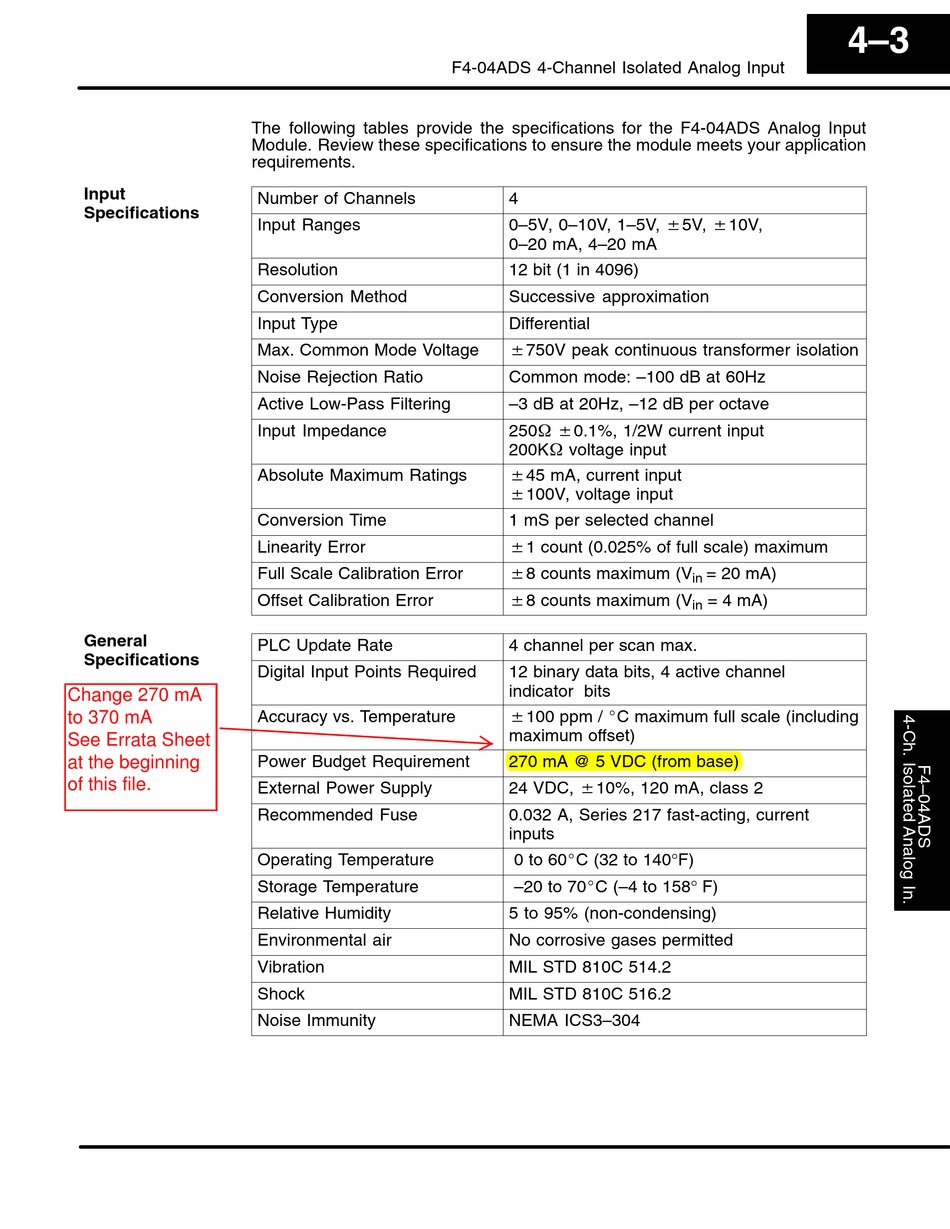

The following tables provide the specifications for the F4-04ADS Analog Input
Module. Review these specifications to ensure the module meets your application
requirements.
Number of Channels
Input Ranges
Resolution
Conversion Method
Input Type
Max. Common Mode Voltage
Noise Rejection Ratio
Active Low-Pass Filtering
Input Impedance
Absolute Maximum Ratings
Conversion Time
Linearity Error
Full Scale Calibration Error
Offset Calibration Error
PLC Update Rate
Digital Input Points Required
Accuracy vs. Temperature
Power Budget Requirement
External Power Supply
Recommended Fuse
Operating Temperature
Storage Temperature
Relative Humidity
Environmental air
Vibration
Shock
Noise Immunity
F4-04ADS 4-Channel Isolated Analog Input
4
0–5V, 0–10V, 1–5V, $5V, $10V,
0–20 mA, 4–20 mA
12 bit (1 in 4096)
Successive approximation
Differential
$750V peak continuous transformer isolation
Common mode: –100 dB at 60Hz
–3 dB at 20Hz, –12 dB per octave
250W $0.1%, 1/2W current input
200KW voltage input
$45 mA, current input
$100V, voltage input
1 mS per selected channel
$1 count (0.025% of full scale) maximum
$8 counts maximum (V
$8 counts maximum (V
4 channel per scan max.
12 binary data bits, 4 active channel
indicator bits
$100 ppm / _C maximum full scale (including
maximum offset)
270 mA @ 5 VDC (from base)
24 VDC, $10%, 120 mA, class 2
0.032 A, Series 217 fast-acting, current
inputs
0 to 60_C (32 to 140°F)
–20 to 70_C (–4 to 158° F)
5 to 95% (non-condensing)
No corrosive gases permitted
MIL STD 810C 514.2
MIL STD 810C 516.2
NEMA ICS3–304
