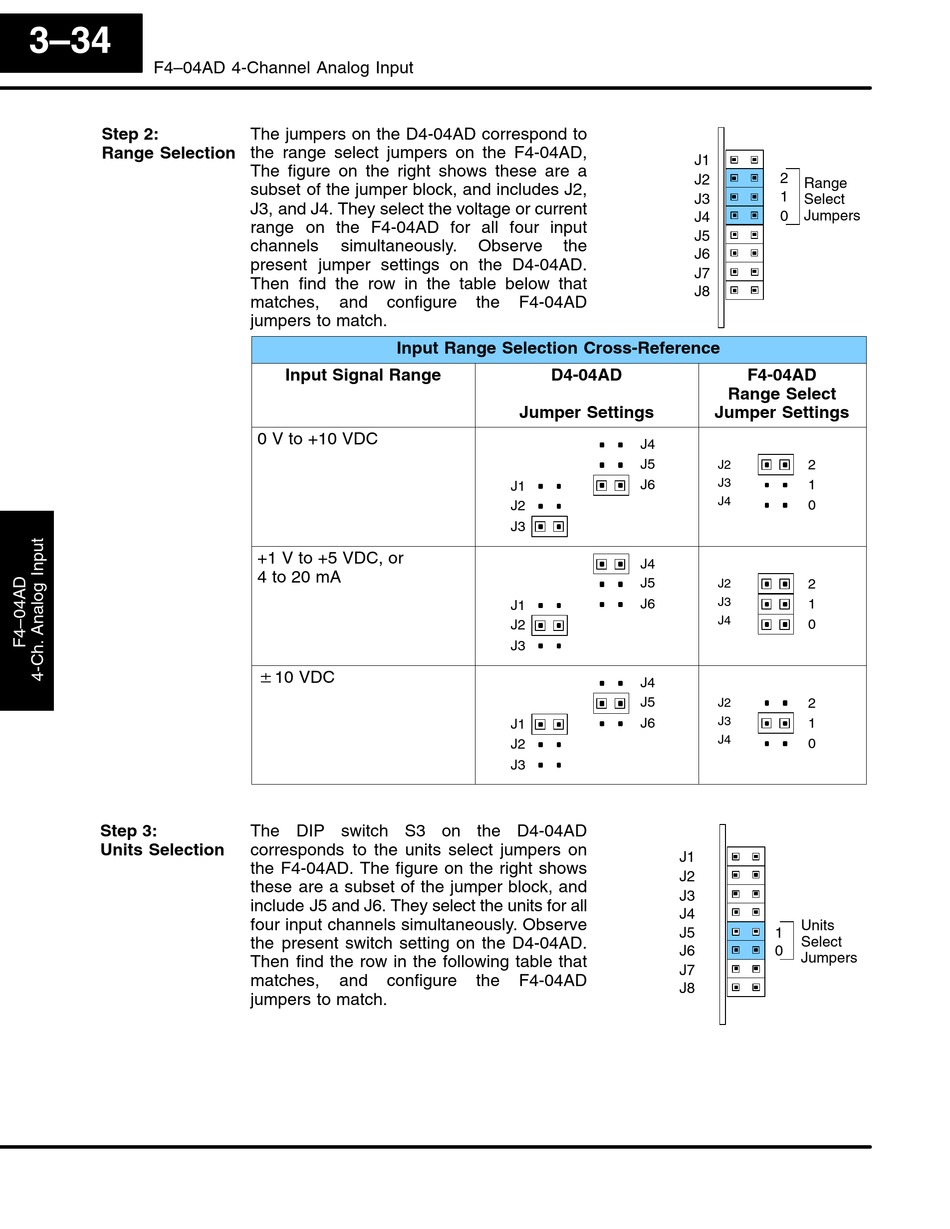

F4–04AD 4-Channel Analog Input
Step 2:
Range Selection
Step 3:
Units Selection
The jumpers on the D4-04AD correspond to
the range select jumpers on the F4-04AD,
The figure on the right shows these are a
subset of the jumper block, and includes J2,
J3, and J4. They select the voltage or current
range on the F4-04AD for all four input
channels simultaneously.
present jumper settings on the D4-04AD.
Then find the row in the table below that
matches, and configure
jumpers to match.
Input Range Selection Cross-Reference
Input Signal Range
0 V to +10 VDC
+1 V to +5 VDC, or
4 to 20 mA
$10 VDC
The DIP switch S3 on the D4-04AD
corresponds to the units select jumpers on
the F4-04AD. The figure on the right shows
these are a subset of the jumper block, and
include J5 and J6. They select the units for all
four input channels simultaneously. Observe
the present switch setting on the D4-04AD.
Then find the row in the following table that
matches, and configure
jumpers to match.
