17–2
F4–04DAS–1 4-Channel Isolated 4–20mA Output

Module Specifications

Analog Output
Configuration
Requirements
The F4–04DAS–1
Analog Output module provides several
features and benefits.
S
Each analog output is isolated from the
other outputs.
S
Analog outputs are optically isolated
from PLC logic components.
S
The module has a removable terminal
block, so the module can be easily
removed or changed without
disconnecting the wiring.
S
All four analog outputs may be set in
one CPU scan (DL440 and DL450
CPUs only).
S
Provides four channels of isolated
current outputs if used with independent
loop power supplies.
Firmware Requirements:
When using this module with an H4–EBC, the
H4–EBC must have firmware version 2.1.46
or later.
The F4–04DAS–1 Analog Output requires 32 discrete output points in the CPU.
The module can be installed in any slot of a DL405 system, including remote bases.
The limitations on the number of analog modules are:
S
For local and expansion systems, the available power budget and
discrete I/O points.
S
For remote I/O systems, the available power budget and number of
remote I/O points.
Check the user manual for your particular model of CPU for more information
regarding power budget and number of local or remote I/O points.

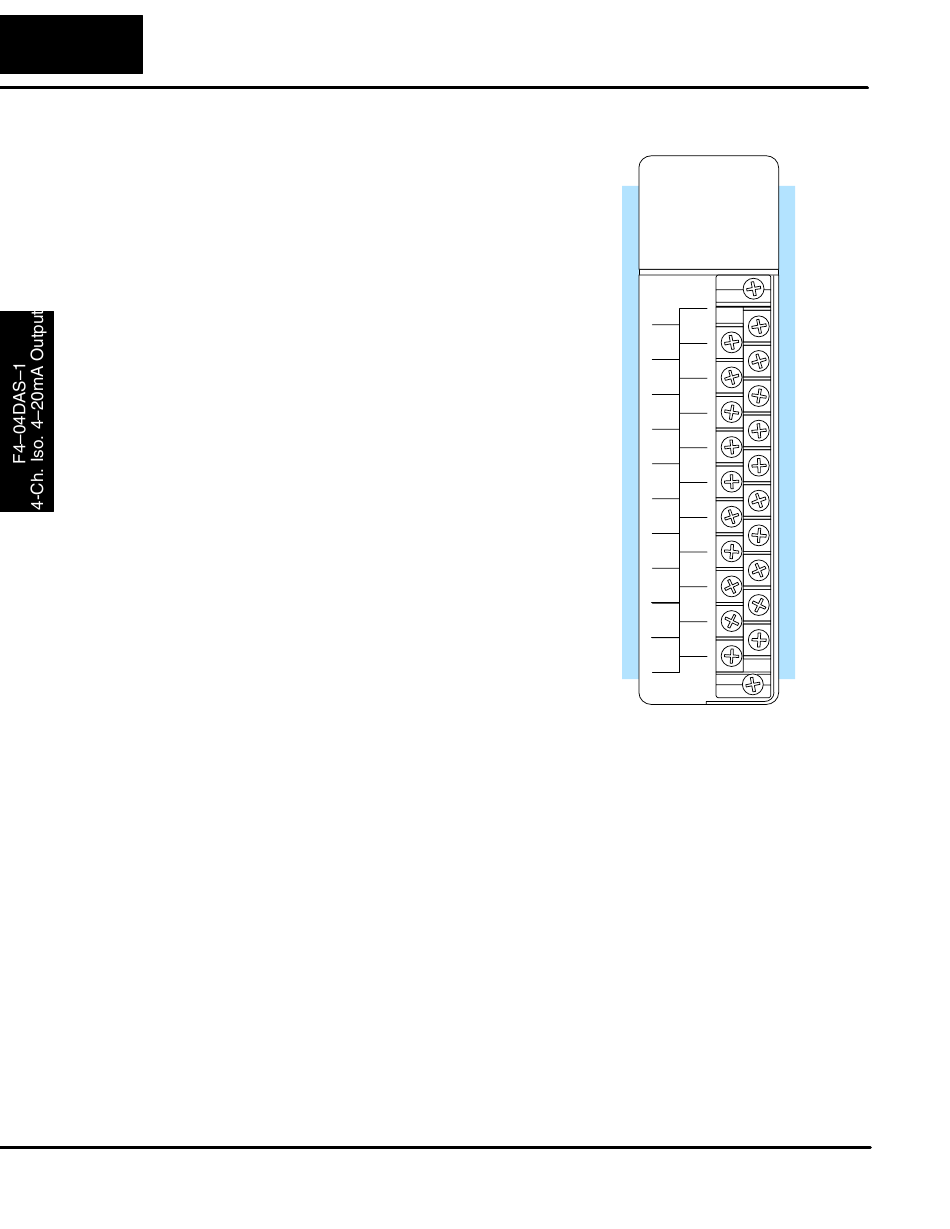

4-channel Isolated
ANALOG OUTPUT
4 CHANNELS
F4–04DAS–1
4mA–20mA
0V1
+V1
–I1
+I1
0V2
+V2
–I2
+I2
0V3
+V3
–I3
+I3
0V4
+V4
–I4
+I4
