F4–08AD 8-Channel Analog Input

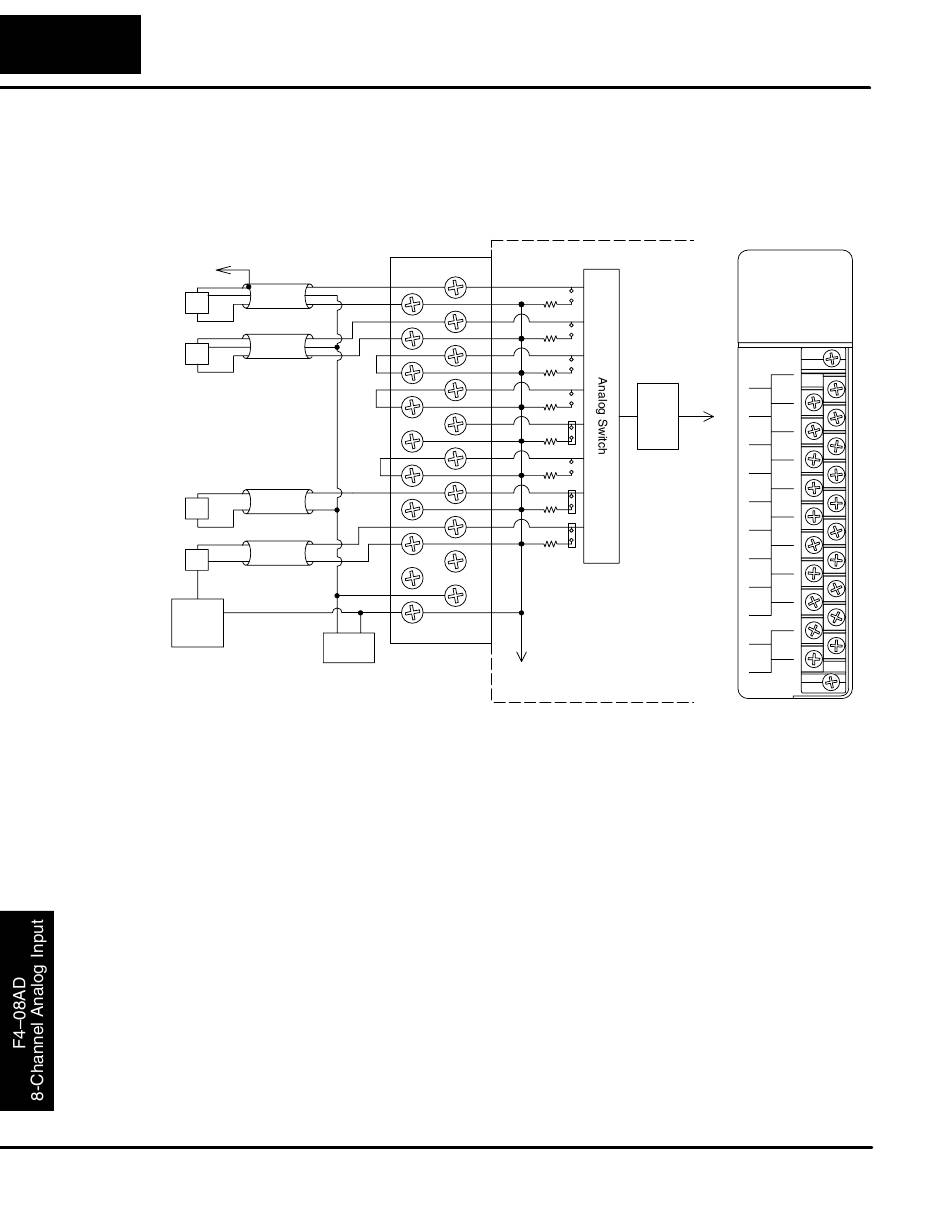

Wiring Diagram

NOTE 1: Shields should be grounded at the signal source.
NOTE 2: Unused channels should be connected to 0V
or have current jumpers installed.
See NOTE 1
CH1
+
Voltage
–
Transmitter
CH2 +
Voltage
–
Transmitter
Channels 3–6 are not used,
See NOTE 2
CH7
2-wire
4–20mA
Transmitter
CH8
3-wire
4–20mA
Transmitter
+
Optional
External
P/S
(24VDC
typical)
More than one external power supply can be used (see channel 8).
If the power supply common of an external power supply is not connected to 0V on the
module, then the output of the external transmitter must be isolated. To avoid "ground loop"
errors, recommended 4–20mA transmitter types are:
2 or 3 wire: Isolation between input signal and power supply.
4 wire: Isolation between input signal, power supply, and 4–20mA output.
CH3
CH4
CH5
CH6
–
+ –
18-30VDC
CH1
IN
250 ohms
CH1
0V
CH2
IN
250 ohms
CH2
0V
CH3
IN
250 ohms
CH3
0V
CH4
IN
250 ohms
CH4
0V
CH5
IN
250 ohms
CH5
0V
CH6
IN
250 ohms
CH6
0V
CH7
IN
250 ohms
CH7
0V
CH8
IN
250 ohms
CH8
0V
Jumpers for
CH5, 7 & 8
24V
are installed
0V
OV
Internal
ANALOG
Module
Wiring
8 CHANNELS
F4–08AD
0–10VDC
0–5VDC
A to D
1–5VDC
+10VDC
Convertor
+5VDC
4–20mA
CH1
IN
CH1
COM
CH2
IN
CH2
COM
CH3
IN
CH3
COM
CH4
IN
CH4
COM
CH5
IN
CH5
COM
CH6
IN
CH6
COM
CH7
IN
CH7
COM
CH8
IN
CH8
COM
24VDC 0.1A
24
V
0
V
INPUT
