17–4
F4–04DAS–1 4-Channel Isolated 4–20mA Output

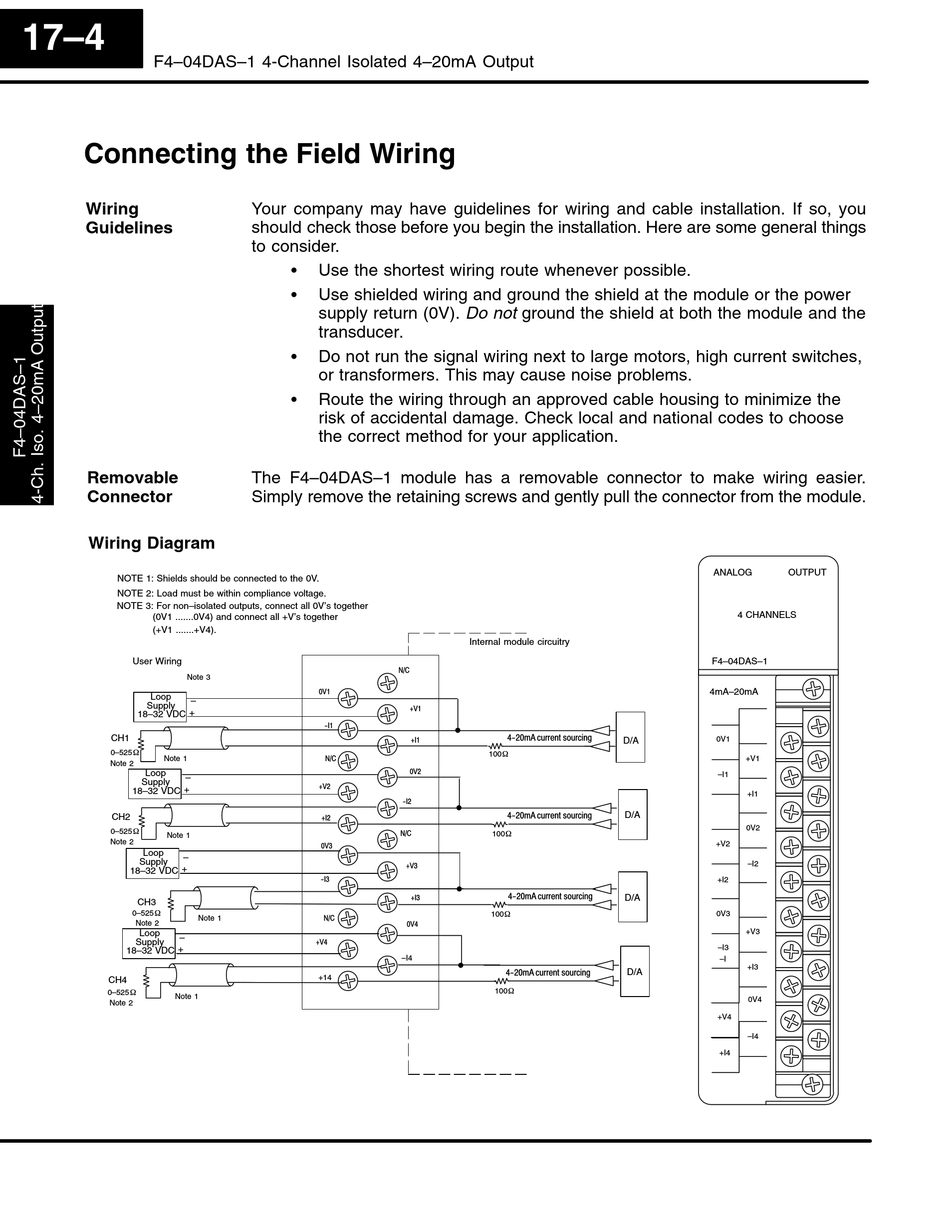

Connecting the Field Wiring

Wiring
Guidelines
Removable
Connector

Wiring Diagram

NOTE 1: Shields should be connected to the 0V.
NOTE 2: Load must be within compliance voltage.
NOTE 3: For non–isolated outputs, connect all 0V's together
(0V1 .......0V4) and connect all +V's together
(+V1 .......+V4).
User Wiring
Note 3
Loop
–
Supply
+
18–32 VDC
CH1
0–525W
Note 1
Note 2
Loop
–
Supply
+
18–32 VDC
CH2
0–525W
Note 1
Note 2
Loop
–
Supply
+
18–32 VDC
CH3
0–525W
Note 1
Note 2
Loop
–
Supply
+
18–32 VDC
CH4
0–525W
Note 1
Note 2
Your company may have guidelines for wiring and cable installation. If so, you
should check those before you begin the installation. Here are some general things
to consider.
S
Use the shortest wiring route whenever possible.
S
Use shielded wiring and ground the shield at the module or the power
supply return (0V). Do not ground the shield at both the module and the
transducer.
S
Do not run the signal wiring next to large motors, high current switches,
or transformers. This may cause noise problems.
S
Route the wiring through an approved cable housing to minimize the
risk of accidental damage. Check local and national codes to choose
the correct method for your application.
The F4–04DAS–1 module has a removable connector to make wiring easier.
Simply remove the retaining screws and gently pull the connector from the module.
N/C
0V1
+V1
-I1
+I1
N/C
0V2
+V2
-I2
+I2
N/C
0V3
+V3
-I3
+I3
N/C
0V4
+V4
–I4
+14
Internal module circuitry
4-20mA current sourcing
D/A
100W
4-20mA current sourcing
D/A
100W
4-20mA current sourcing
D/A
100W
4-20mA current sourcing
D/A
100W
ANALOG OUTPUT
4 CHANNELS
F4–04DAS–1
4mA–20mA
0V1
+V1
–I1
+I1
0V2
+V2
–I2
+I2
0V3
+V3
–I3
–I
+I3
0V4
+V4
–I4
+I4
