Unipolar Ranges
0 VDC to 5 VDC
0 VDC to 10 VDC

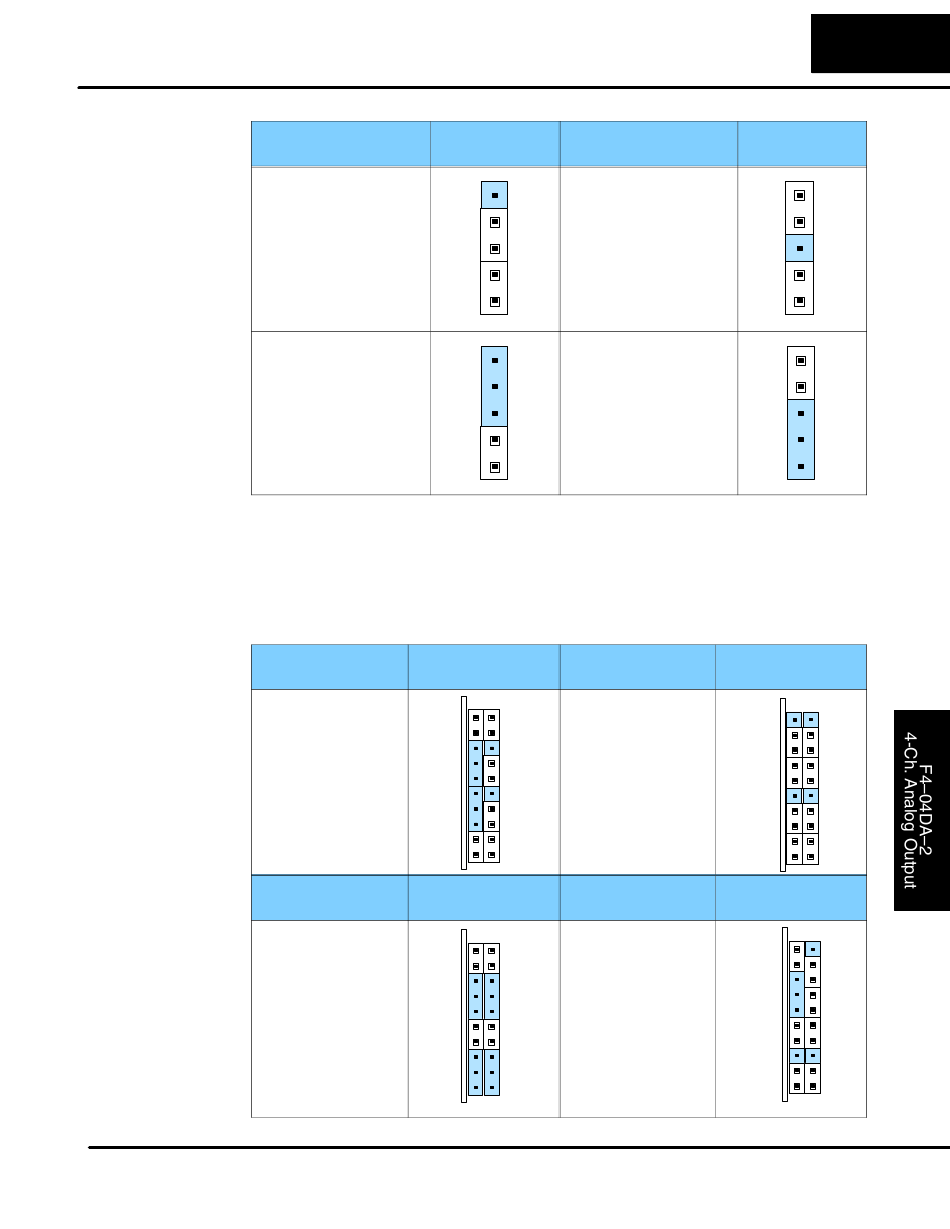

The table above shows how to set any output channel for one of four voltage
ranges. Since each channel may be set independently of the others, there are
many possible combinations. The following examples show how the whole voltage
range jumper block will appear after setting all four channels for the ranges listed.
Example 1
Ch. 1 "10 VDC
"5 VDC
Ch. 2
Ch. 3 0 to 5 VDC
Ch. 4 0 to 10VDC
Example 3
Ch. 1 "10 VDC
Ch. 2 (same)
Ch. 3 (same)
Ch. 4 (same)
F4–04DA–2 Analog Voltage Output
Jumper Bipolar Ranges
Settings
–5 VDC to +5 VDC
–10 VDC to +10 VDC
Jumper Example 2
Settings
Ch. 1 0 to 5 VDC
Ch. 2 (same)
Ch. 3 (same)
Ch. 4 (same)
Jumper Example 4
Settings
Ch. 1 "10 VDC
Ch. 2 0 to 5 VDC
Ch. 3 "5 VDC
Ch. 4 (same)
14–5
Jumper
Settings
Jumper
Settings
Jumper
Settings
