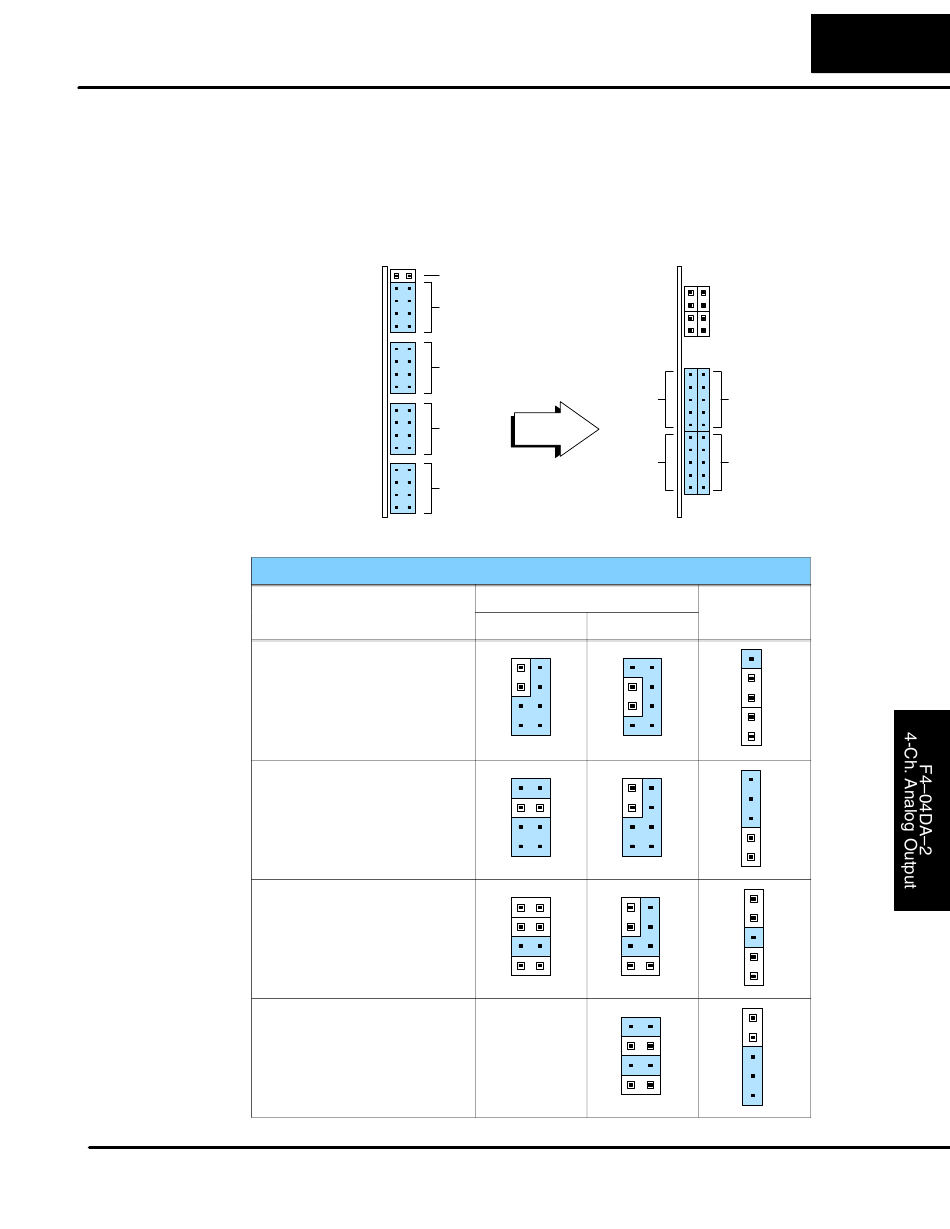

Now we set the F4–04DA–2 voltage range selection to match the F4–04DA
Step 2:
settings. Both modules have four sets of jumper blocks corresponding to each of
Voltage Range
four channels, as shown in the following diagram. First you will need to see whether
Selection
the F4–04DA's current jumper is installed. Then use the appropriate column in the
table to translate each channel's jumper settings to their equivalent on the
F4–04DA–2.
0 – 5VDC
0 – 10 VDC
$5 VDC
$10 VDC
Current Jumper
F4–04DA
Ch. 3
Ch. 4
Ch. 2
Ch. 1
Output Range Selection Cross-Reference
Output Voltage Range
F4–04DA–2 Analog Voltage Output
Ch. 1
Ch. 4
F4–04DA, Current Jumper
Installed Removed
Not
supported
with current
jumper
installed
14–29
F4–04DA-2
Ch. 2
Ch. 3
F4–04DA–2
