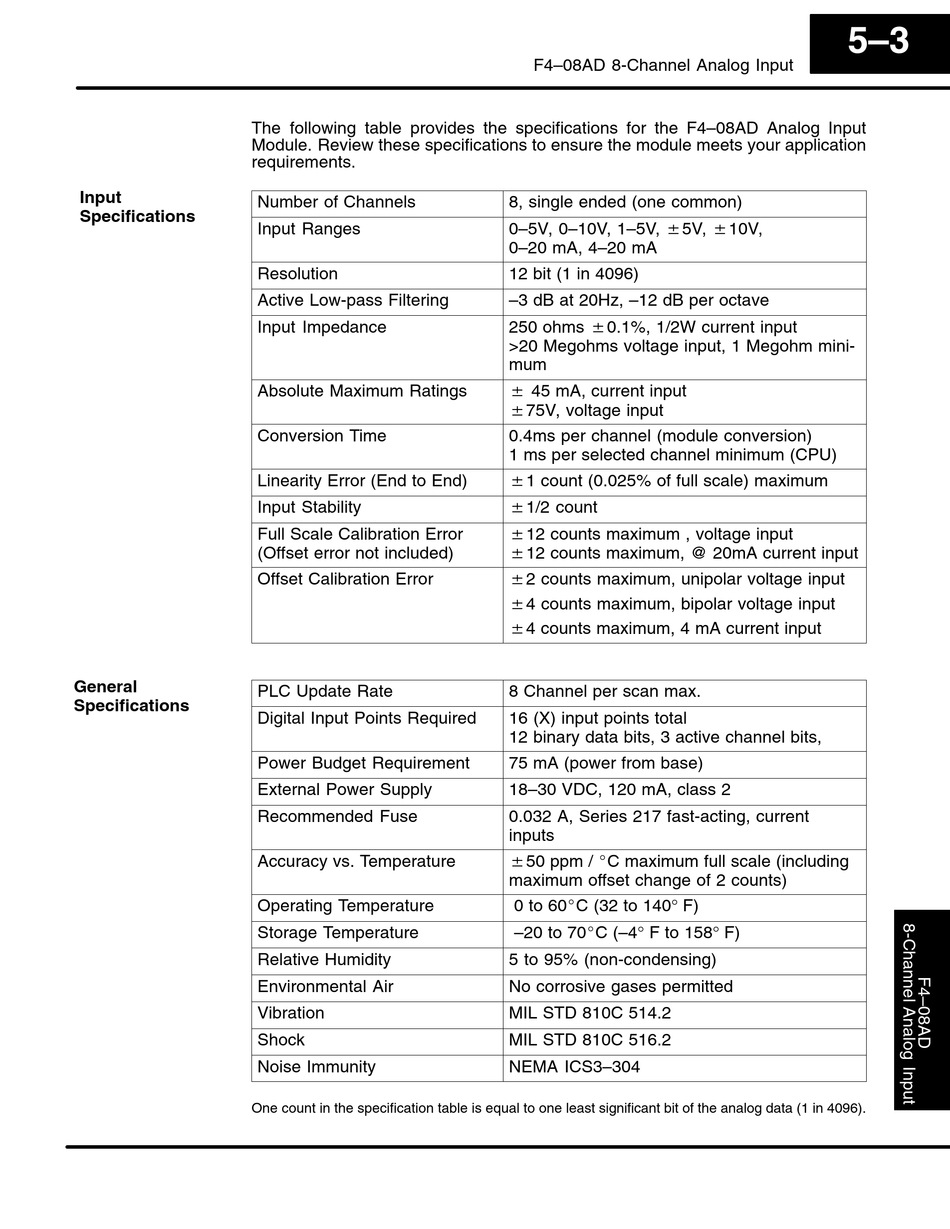

The following table provides the specifications for the F4–08AD Analog Input
Module. Review these specifications to ensure the module meets your application
requirements.
Input
Specifications
General
Specifications
One count in the specification table is equal to one least significant bit of the analog data (1 in 4096).
Number of Channels
Input Ranges
Resolution
Active Low-pass Filtering
Input Impedance
Absolute Maximum Ratings
Conversion Time
Linearity Error (End to End)
Input Stability
Full Scale Calibration Error
(Offset error not included)
Offset Calibration Error
PLC Update Rate
Digital Input Points Required
Power Budget Requirement
External Power Supply
Recommended Fuse
Accuracy vs. Temperature
Operating Temperature
Storage Temperature
Relative Humidity
Environmental Air
Vibration
Shock
Noise Immunity
F4–08AD 8-Channel Analog Input
8, single ended (one common)
0–5V, 0–10V, 1–5V, $5V, $10V,
0–20 mA, 4–20 mA
12 bit (1 in 4096)
–3 dB at 20Hz, –12 dB per octave
250 ohms $0.1%, 1/2W current input
>20 Megohms voltage input, 1 Megohm mini-
mum
$ 45 mA, current input
$75V, voltage input
0.4ms per channel (module conversion)
1 ms per selected channel minimum (CPU)
$1 count (0.025% of full scale) maximum
$1/2 count
$12 counts maximum , voltage input
$12 counts maximum, @ 20mA current input
$2 counts maximum, unipolar voltage input
$4 counts maximum, bipolar voltage input
$4 counts maximum, 4 mA current input
8 Channel per scan max.
16 (X) input points total
12 binary data bits, 3 active channel bits,
75 mA (power from base)
18–30 VDC, 120 mA, class 2
0.032 A, Series 217 fast-acting, current
inputs
$50 ppm / _C maximum full scale (including
maximum offset change of 2 counts)
0 to 60_C (32 to 140° F)
–20 to 70_C (–4° F to 158° F)
5 to 95% (non-condensing)
No corrosive gases permitted
MIL STD 810C 514.2
MIL STD 810C 516.2
NEMA ICS3–304
5–3
