Selecting Notice the eight jumpers for selecting current or voltage settings for each individual
channel. For each channel install the jumper when you are using a current input or
Current or
Voltage remove the jumper if using a voltage input.

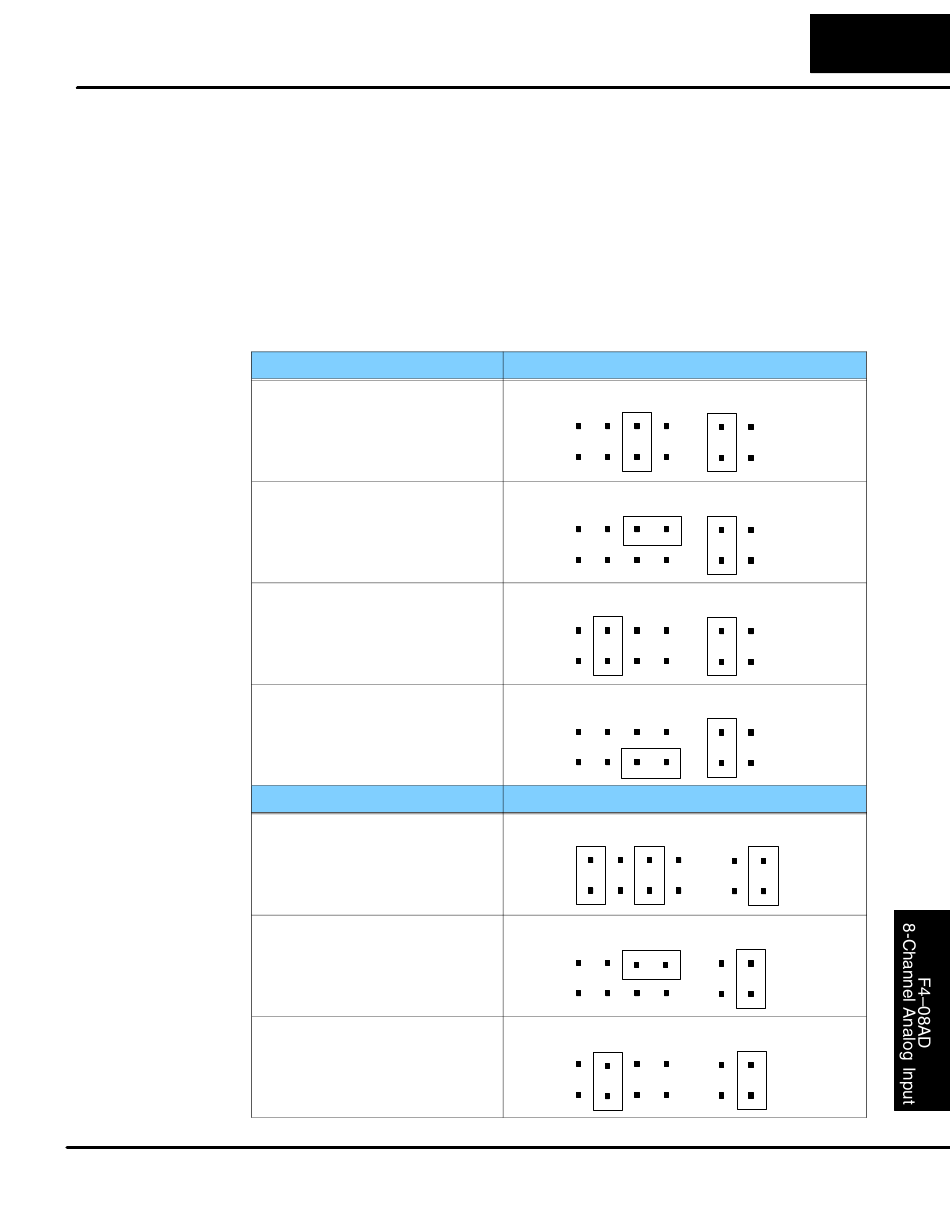

Selecting Input The following table shows the jumper selections for the various ranges and are
Signal and grouped by bipolar and unipolar. The top portion of the table shows signal range
settings for when the polarity jumper is installed in the Bi (bipolar) position, and the
Ranges
lower portion of the table shows settings for when the polarity jumper is installed in
the Uni (unipolar) position. These settings will apply to all active channels.
–2 VDC to +2 VDC
(–8mA to +8 mA)
–2.5 VDC to +2.5 VDC
(–10mA to +10 mA)
–5 VDC to +5 VDC
(–20mA to +20 mA)
–10 VDC to +10 VDC
4 to 20mA
(1 VDC to 5 VDC)
0 to +5 VDC
(0 to +20 mA)
0 to +10 VDC
Bipolar Signal Range
Unipolar Signal Range
F4–08AD 8-Channel Analog Input
Jumper Settings
Signal Range
Signal Range Polarity
Signal Range
Signal Range
Jumper Settings
Signal Range
Signal Range Polarity
Bi
Signal Range
5–5
Polarity
Bi Uni
Bi Uni
Polarity
Bi Uni
Polarity
Bi Uni
Polarity
Bi Uni
Uni
Polarity
Bi Uni
