Changes to Chapter 9: F4-08RTD 8-Channel RTD Input
Page 9-7. Connecting the Field Wiring; RTD - Resistance Temperature Detector; Lead Detection for RTD Sensors

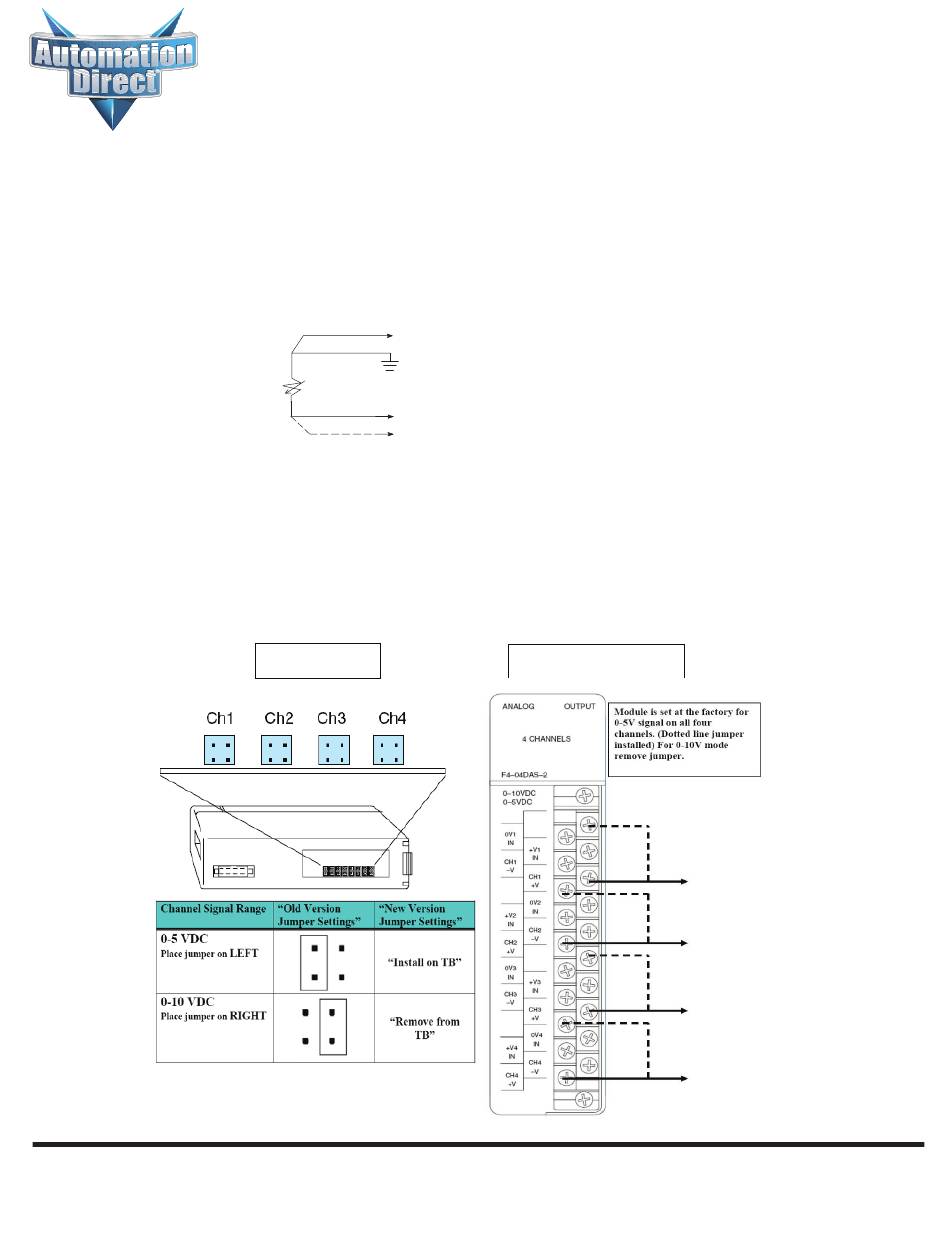

Replace the wiring diagram with this one. The wire lead colors changed. (The two black leads changed to red and the two
red leads changed to white.)
Changes to Chapter 18: F4-04DAS-2 4-Channel Isolated 0–5V, 0–10V Output
Page 18-4. Setting the Module Jumpers
In 2008 the module was redesigned and the range selection jumpers on the back of the module (as described below on
the left and on page 18-4) were eliminated. The range selection is now done by a wire jumper on the terminal block as
shown here on the right.
Errata Sheet
Red
To CH--
Red
To COM
Sensor
White
To CH+
White (if applicable)
No Connection
(if sensor has 4 leads, only
connect one lead to CH+)
"Old Version"
"New Version"
