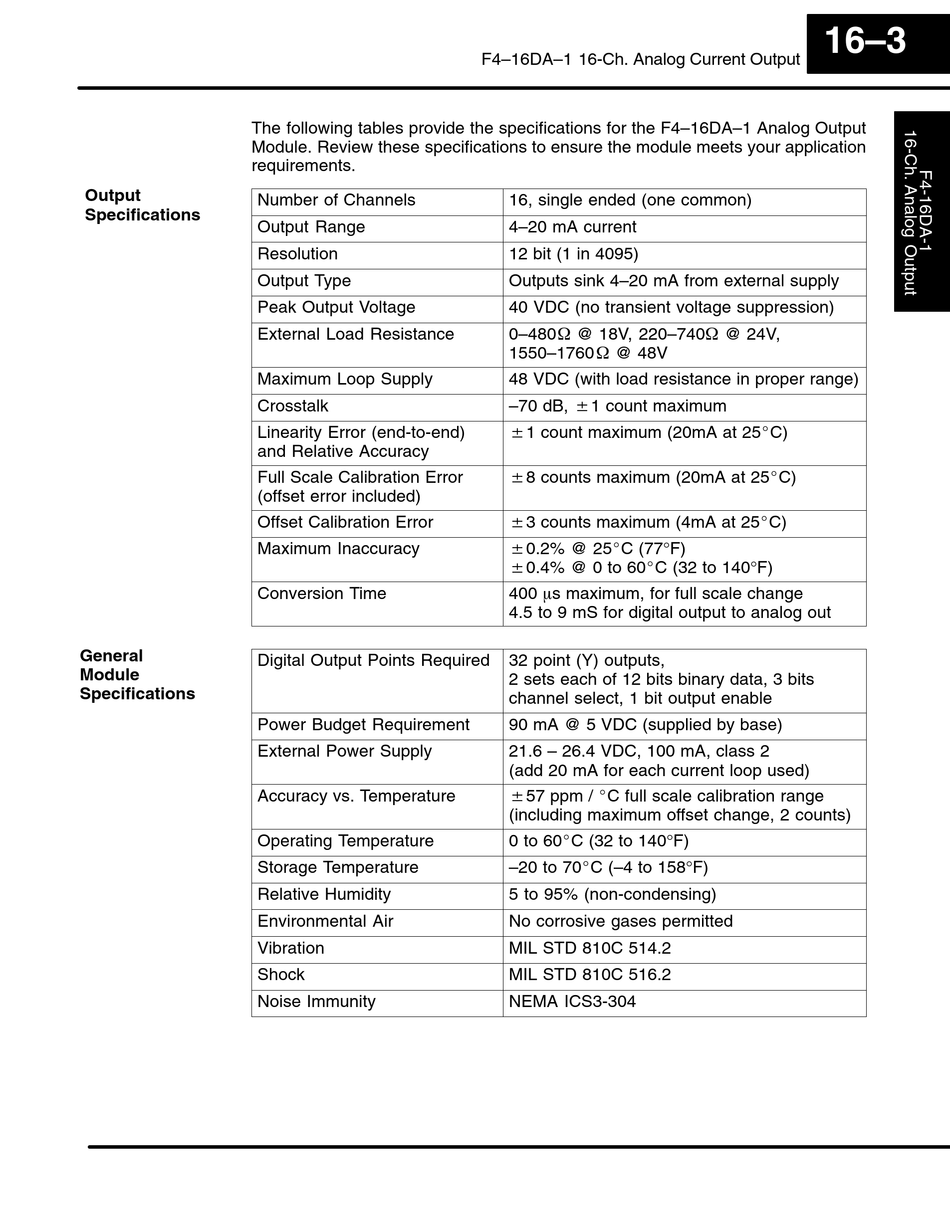

The following tables provide the specifications for the F4–16DA–1 Analog Output
Module. Review these specifications to ensure the module meets your application
requirements.
Output
Number of Channels
Specifications
Output Range
Resolution
Output Type
Peak Output Voltage
External Load Resistance
Maximum Loop Supply
Crosstalk
Linearity Error (end-to-end)
and Relative Accuracy
Full Scale Calibration Error
(offset error included)
Offset Calibration Error
Maximum Inaccuracy
Conversion Time
General
Digital Output Points Required
Module
Specifications
Power Budget Requirement
External Power Supply
Accuracy vs. Temperature
Operating Temperature
Storage Temperature
Relative Humidity
Environmental Air
Vibration
Shock
Noise Immunity
F4–16DA–1 16-Ch. Analog Current Output
16, single ended (one common)
4–20 mA current
12 bit (1 in 4095)
Outputs sink 4–20 mA from external supply
40 VDC (no transient voltage suppression)
0–480W @ 18V, 220–740W @ 24V,
1550–1760 W @ 48V
48 VDC (with load resistance in proper range)
–70 dB, $1 count maximum
$1 count maximum (20mA at 25_C)
$8 counts maximum (20mA at 25_C)
$3 counts maximum (4mA at 25_C)
$0.2% @ 25_C (77°F)
$0.4% @ 0 to 60_C (32 to 140°F)
400 ms maximum, for full scale change
4.5 to 9 mS for digital output to analog out
32 point (Y) outputs,
2 sets each of 12 bits binary data, 3 bits
channel select, 1 bit output enable
90 mA @ 5 VDC (supplied by base)
21.6 – 26.4 VDC, 100 mA, class 2
(add 20 mA for each current loop used)
$57 ppm / _C full scale calibration range
(including maximum offset change, 2 counts)
0 to 60_C (32 to 140°F)
–20 to 70_C (–4 to 158°F)
5 to 95% (non-condensing)
No corrosive gases permitted
MIL STD 810C 514.2
MIL STD 810C 516.2
NEMA ICS3-304
