7–2
F4–16AD–2 16-Channel Analog Input

Module Specifications

Analog Input
Configuration
Requirements
The F4-16AD–2 Analog Input module
provides several features and benefits.
S
It accepts 16 single-ended voltage
inputs.
S
Analog inputs are optically isolated
from PLC logic components.
S
The module has a removable
terminal block, so the module can
be easily removed or changed
without disconnecting the wiring.
S
All 16 analog inputs may be read in
one CPU scan (D4–440 and
D4–450 CPUs only).
The F4–16AD–2 Analog Input module requires 16 discrete input points. The
module can be installed in any slot of a DL405 system, including remote bases. The
limitations on the number of analog modules are:
S
For local and expansion systems, the available power budget and
discrete I/O points.
S
For remote I/O systems, the available power budget and number of
remote I/O points.
Check the user manual for your particular model of CPU for more information
regarding power budget and number of local or remote I/O points.

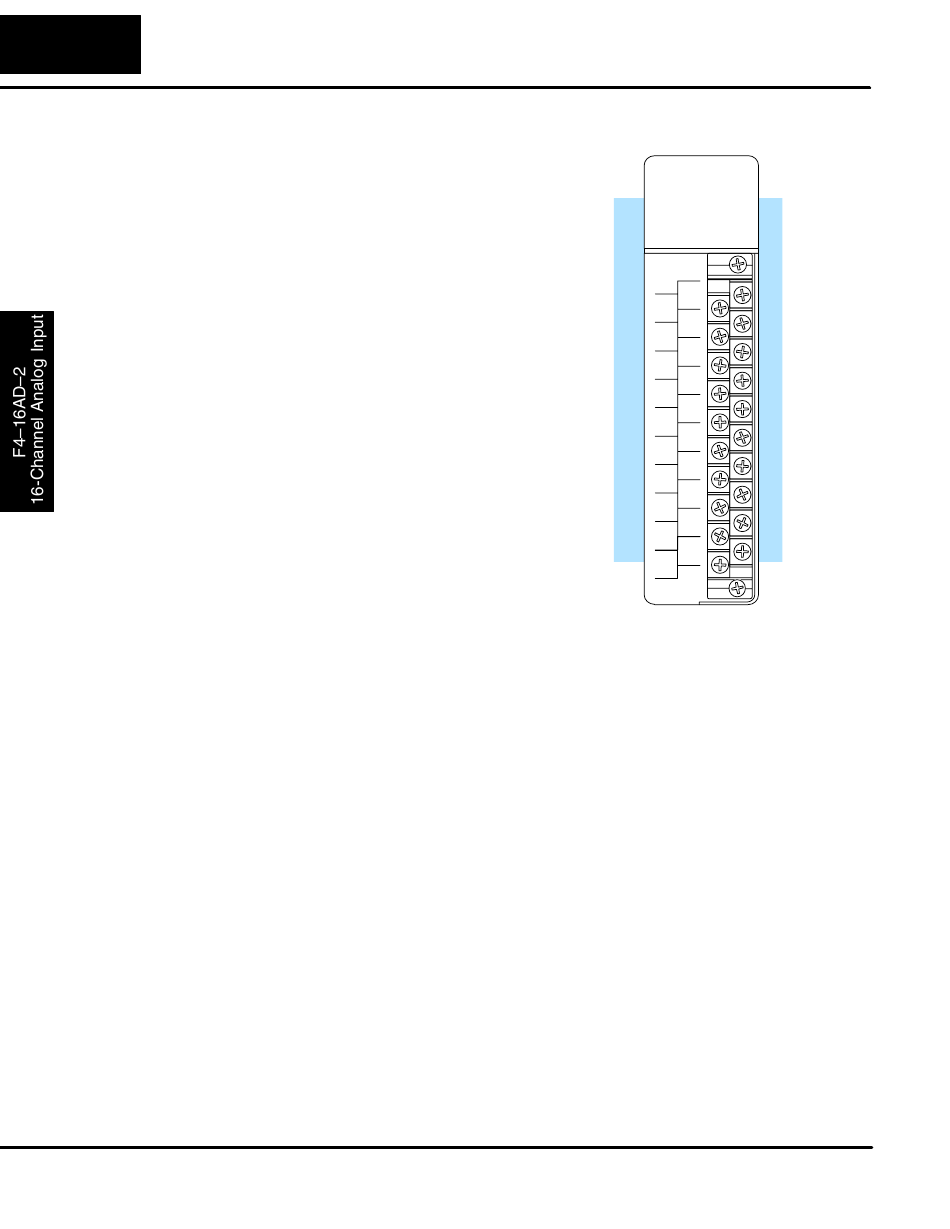

ANALOG INPUT
16 CHANNELS
F4–16AD–2
0–5V
0–10V
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
0V
0V
CH9
CH10
CH11
CH12
CH13
CH14
CH15
CH16
24V
0V
24VDC @0.1A
F4–16AD–2
