Wiring Diagram

The D4–02DA module has a removable connector to make wiring easier. Simply
remove the retaining screws and gently pull the connector from the module.

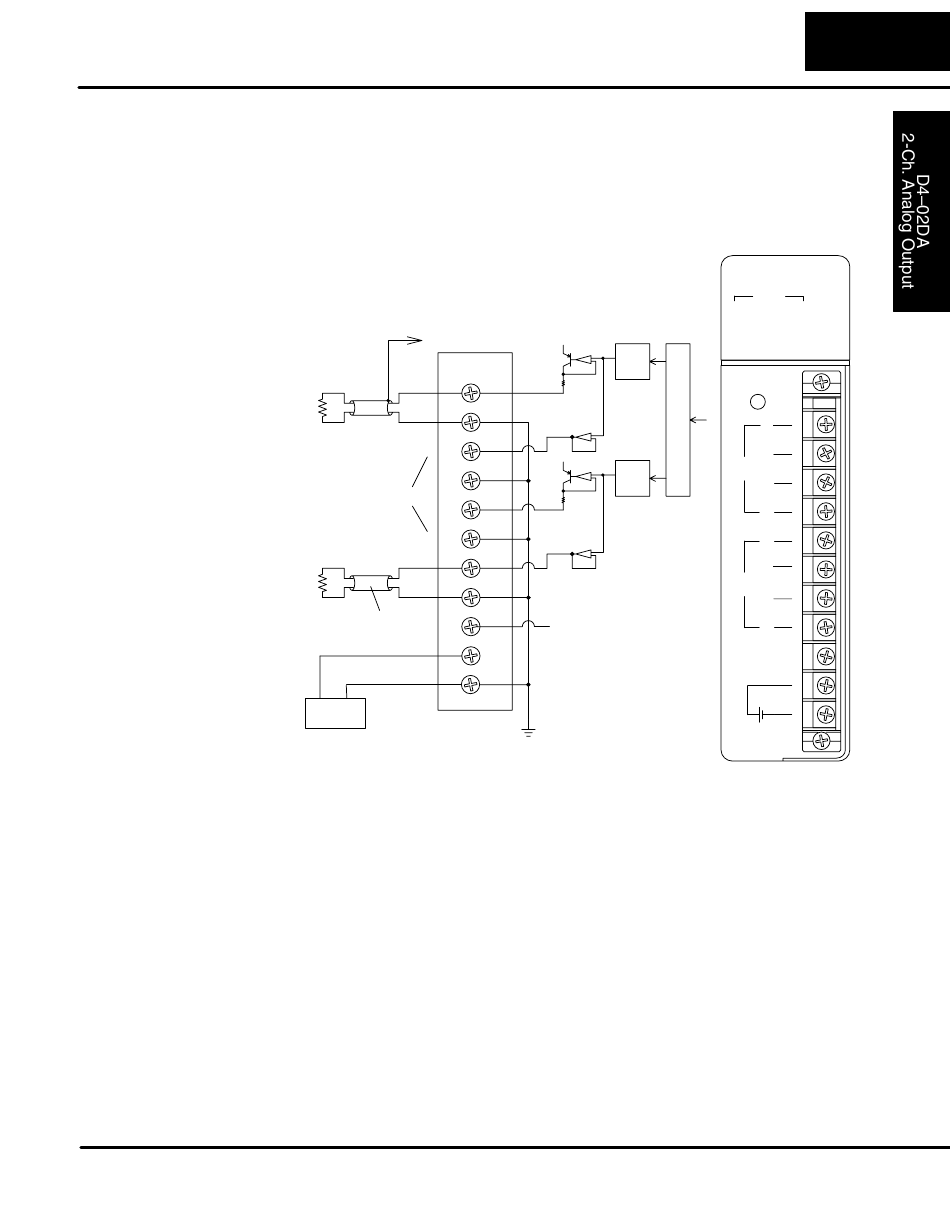

Channel 1 is wired for
User Load
5 to 550 ohms
Channel 2 is wired for
User Load
NOTE 1: Shields should be connected to the 0V
terminal of the module or power supply.
NOTE 2: Unused voltage and current outputs
should remain open (no connections).
See NOTE 1
current output
Shielded
See NOTE 2
voltage output
2K ohms
or greater
Shielded
+
–
User
Supply
21.6 – 26.4 VDC
D4-02DA 2-Channel Analog Output
CH1
V+
D/A
+I
–I
+V
CH2
V+
–V
D/A
+I
–I
+V
–V
NC
24V
0V
OV
11–5
ANALOG OUTPUT
TB 24V CH1 CH2
DATA
1 16 256
2 32 512
4 64 1024
8 128 2048
D4–02DA
DISPLAY
CH
+I
–I
CH1
+V
–V
+I
–I
CH2
+V
–V
0–10VDC
1–5VDC
4mA–20mA
24VDC 0.3A
CLASS 2
D4–02DA
