20–2
F4–16DA–2 16-Ch. Analog Voltage Output
Module Specifications
Analog Output
Configuration
Requirements
The F4–16DA–2 Analog Voltge Output
module provides several features and
benefits.
S
It provides sixteen channels of
0–5VDC or 0–10VDC single
ended voltage outputs, or a
combination of 8 channels of
0–5VDC and 8 channels of
0–10VDC outputs.
S
Analog outputs are optically
isolated from PLC logic
components.
S
The module has a removable
terminal block, so the module
can be easily removed or
changed without disconnecting
the wiring.
S
From two to sixteen analog
outputs may be updated in one
CPU scan (D4–440 and
D4–450 CPUs only).
The F4–16DA–2 Analog Output module requires 32 discrete output points from the
CPU. The module can be installed in any slot of a DL405 system, including remote
bases. The limitations on the number of analog modules are:
S
For local and expansion systems, the available power budget and
discrete output points.
S
For remote I/O systems, the available power budget and remote I/O
points.

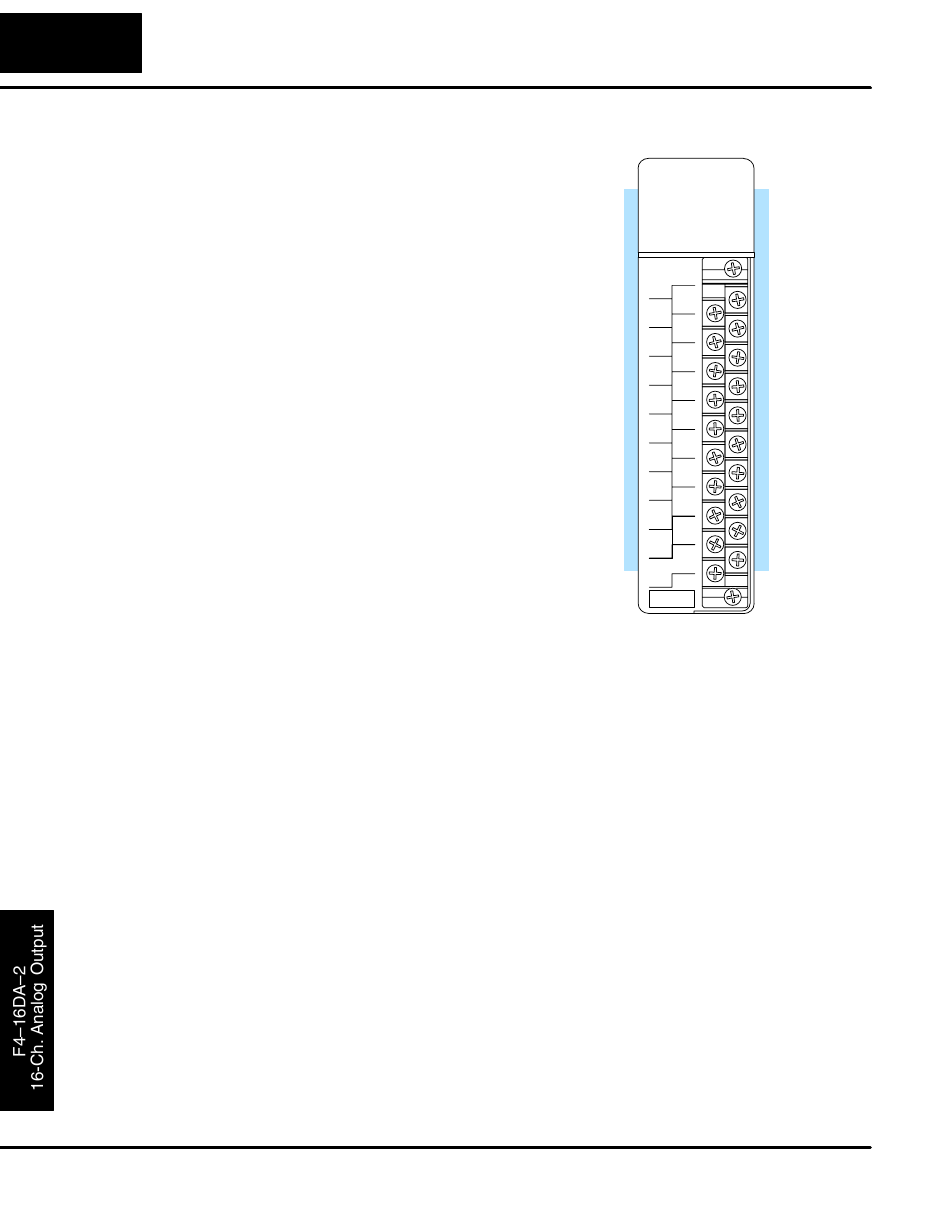

ANALOG OUTPUT
F4–16DA–2
0–5VDC
0–10VDC
CH1
+V
CH2
+V
CH3
+V
CH4
+V
CH5
+V
CH6
+V
CH7
+V
CH8
+V
CH9
+V
CH10
+V
CH11
+V
CH12
+V
CH13
+V
CH14
+V
CH15
+V
CH16
+V
0V
0V
+
24 VDC 275mA
–
