Automation Direct PRODUCTIVITY 2000 Manual

Analog input
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

General Specifications

Operating Temperature
0º to 60ºC (32º to 140ºF)
Storage Temperature
-20º to 70ºC (-4º to 158ºF)
Humidity
5 to 95% (non-condensing)
Environmental Air
No corrosive gases permitted
Vibration
IEC60068-2-6 (Test Fc)
Shock
IEC60068-2-27 (Test Ea)
Field to Logic Side Isolation
1800VAC applied for 1 second
Heat Dissipation
500mW
Enclosure Type
Open Equipment
UL508 File E139594, Canada & USA
Agency Approvals
CE (EN61131-2*)
Module Keying to Backplane
Electronic
Module Location
Any I/O slot in a Productivity2000 System
Removable terminal block (included).
Field Wiring
The P2-08THM module is not compatible with the
ZIPLink wiring system.
See the "EU Directive" topic in the Productivity2000
EU Directive
Help File. Information can also be obtained at:
www.productivity2000.com
Connector Type (included)
18-position removable terminal block
Weight
90g (3.2 oz)
*Meets EMC and Safety requirements. See the D.O.C. for details.
Sales 800-633-0405

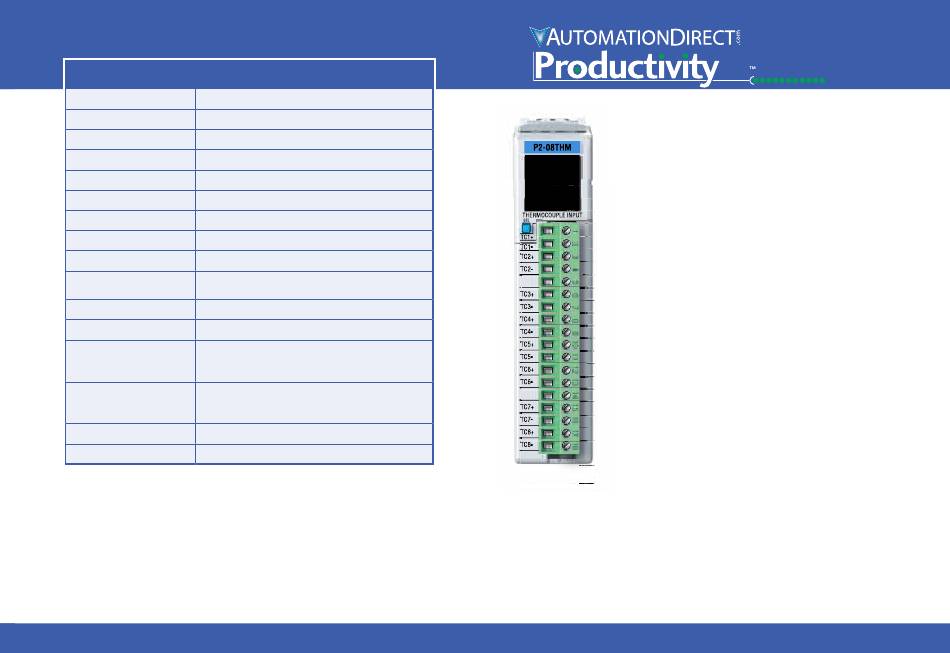

P2-08THM Analog Input
The P2-08THM Thermocouple Input Module
1
OVER
2J 0526
°
C
provides eight differential channels for receiving
3E 1000
°
F
4
UNDER
thermocouple and voltage input signals for use
5
OVER
6 21.35
M
V
with the Productivity2000 System.
7 1.245
M
V
8
SPARE
General Specifications . . . . . . . . . . . . . . . . . . . . . . 1
T/C Input Specifications . . . . . . . . . . . . . . . . . . . . . 2
Voltage Input Specifications . . . . . . . . . . . . . . . . . . 2
Configuration/Diagnostics . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Typical Application Example . . . . . . . . . . . . . . . . . . 6
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 7
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Terminal Block Included. Not Compatible with ZIPLink.
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity2000.com for details).
www.productivity2000.com
2000
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRODUCTIVITY 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Automation Direct PRODUCTIVITY 2000

Summary of Contents for Automation Direct PRODUCTIVITY 2000

  • Page 1: Table Of Contents

    General Specifications 2000 Operating Temperature 0º to 60ºC (32º to 140ºF) Storage Temperature -20º to 70ºC (-4º to 158ºF) P2-08THM Analog Input Humidity 5 to 95% (non-condensing) Environmental Air No corrosive gases permitted The P2-08THM Thermocouple Input Module OVER 2J 0526 °...

  • Page 2: T/C Input Specifications

    T/C Input Specifications Voltage Input Specifications 0-39.0625 mVDC, Input Channels 8 Differential +/-39.0625 mVDC, Data Format Floating Point +/-78.125 mVDC, Linear mV Device Input Ranges Common Mode Range ±1.25 V 0-156.25 mVDC, +/-156.25 mVDC, Common Mode Rejection 100dB @ DC and 130dB @ 60Hz 0-1250 mVDC Input Impedance >5MΩ...

  • Page 3: Wiring Diagram And Schematic

    Wiring Diagram Schematic Thermocouple Input Circuits Voltage Input Circuits Ungrounded/Shielded INTERNAL Thermocouple MODULE CIRCUITRY 4-wire Voltage TC1+ Transmitter CH1 T/C TC1- INPUT TC2+ Transmitter AC or DC CH2 T/C Power Supply TC2- INPUT Grounded/Shielded TC3+ Thermocouple CH3 T/C TC3- Load Cell INPUT TC4+ Strain Gauge...

  • Page 4: Module Installation Procedure

    Module Installation QR Code WARNING: Do not apply field power until the following steps are completed. See rotate hot-swapping procedure for to seated exceptions. position Step One: Align module catch with base slot and rotate module into connector. Align with slot Step Two: Pull top locking tab toward module face.

  • Page 5: Wiring Options

    Module Configuration Wiring Options Using the Hardware Configuration tool in the Productivity Suite Screw Terminal Block (Included) programming software, drag and drop the P2-08THM module into the base configuratio P2-RTB Select Automatic Module Verification or No Verification and Enable Hot Swap. Specify Temperature Scale and Burnout (Quantity 1) Detection, and use the drop down menu to select module range and resolution.

  • Page 6: Typical Application Example

    Typical Application Example User’s Desired Setpoint Output Heat Controller Heater Process Thermocouple Variable Oven to P2-08THM (feedback) Temperature P2-08THM Module www.productivity2000.com Tech Support 770-844-4200...

  • Page 7: Oled Panel Display Menus

    OLED Panel Display Power On Hold SEL button down to cycle through primary screens. Release button to Appears DISPLAY PASSED DISPLAY DISPLAY select initially UNITS SELF SETUP STATUS screen. DECIMAL TEST INFO INFO COUNTS These screens will then auto cycle This screen will Momentarily Note: Volts, Celsius, or...

  • Page 8: Warning

    WARNING: To minimize the risk of potential safety problems, you should follow all applicable local and national codes that regulate the installation and operation of your equipment. These codes vary from area to area and it is your responsibility to determine which codes should be followed, and to verify that the equipment, installation, and operation are in compliance with the latest revision of these codes.
