F4–16AD–2 16-Channel Analog Input

Setting the Module Jumpers

Jumper
Locations

Jumper Locations

See Errata Sheet at the
beginning of this file for
a revised drawing
showing the jumper
locations. They are no
longer in a straight line
as shown here.

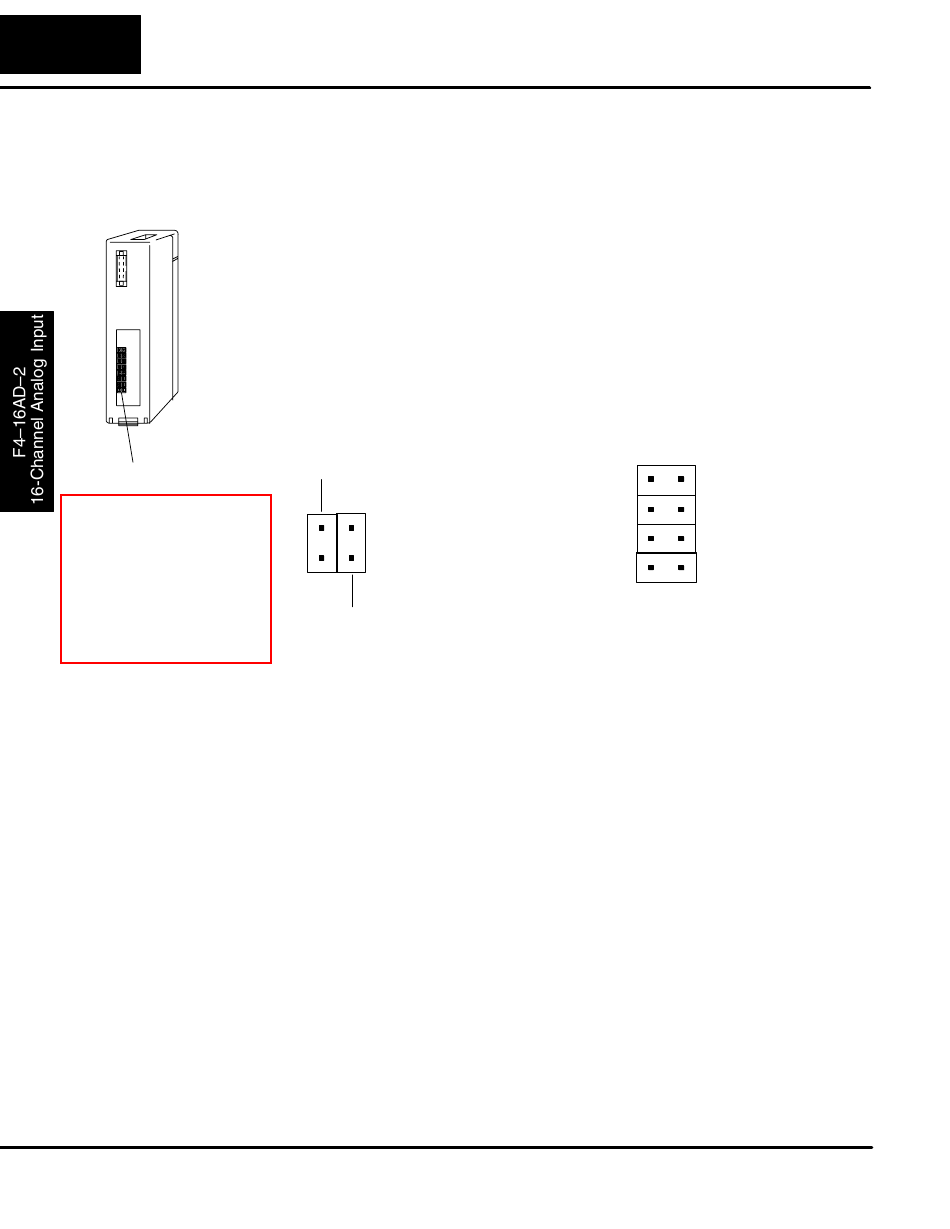

If you examine the rear of the module, you will notice two banks of jumpers. The
module has several options that you can select by installing or removing these
jumpers:
S
A bank of two jumpers to set voltage input range for each bank of 8
channels.
S
A bank of four jumpers to select the number of channels used.
The module is set at the factory for a 0–10 VDC signal range on all sixteen
channels. The following diagram shows how the jumpers are set at the factory and
describes the function of each jumper. When removing a jumper, store it by placing
it on a single pin to prevent losing it.
Voltage Input Range
Select
Channels 9–16
Jumper On = 10VDC
Channels 1–8
+8
+4
+2
Off = 5VDC
+1
Number of
Channels
