Engineering via SICAM WEB

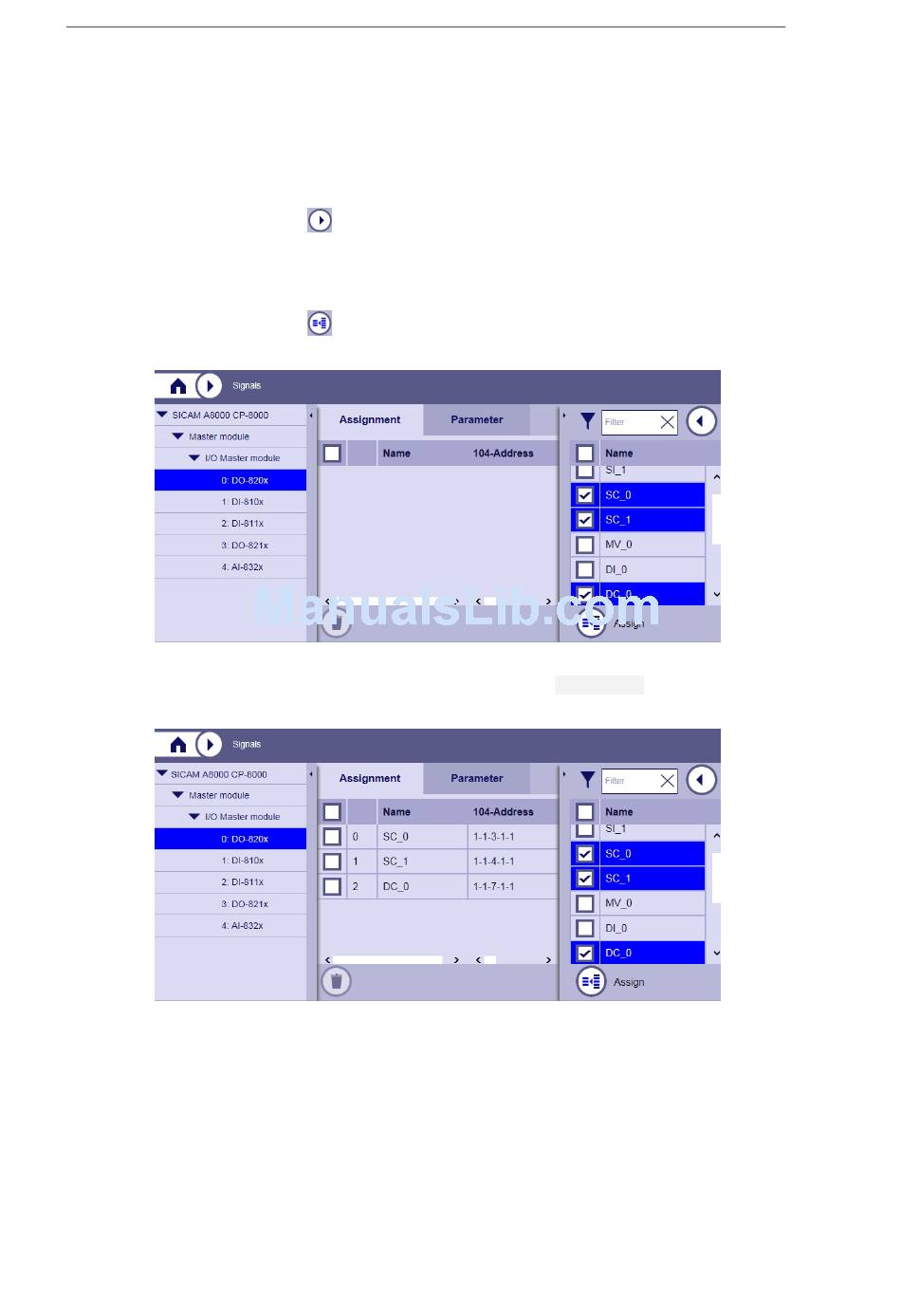

9.1.11.4 Assigning Signals to the I/O Module

If you have already defined signals, these can be assigned to the I/O Modules.
This is how to assign signals to the I/O Master Module:
·
Click on the button
tion
·
Select the directory
<0...7>: <module name>
·
Mark on the right side the signals to be assigned
·
Click on the button
The assigned signals are now listed in a table under the tab Assignment.
370
Unrestricted
right above in order to close the work area for the signal genera-
SICAM A8000 CP-80xx | Master Module | I/O Master Module |
(Assign)
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
