Locking Hook - Siemens CP-8000 User Manual

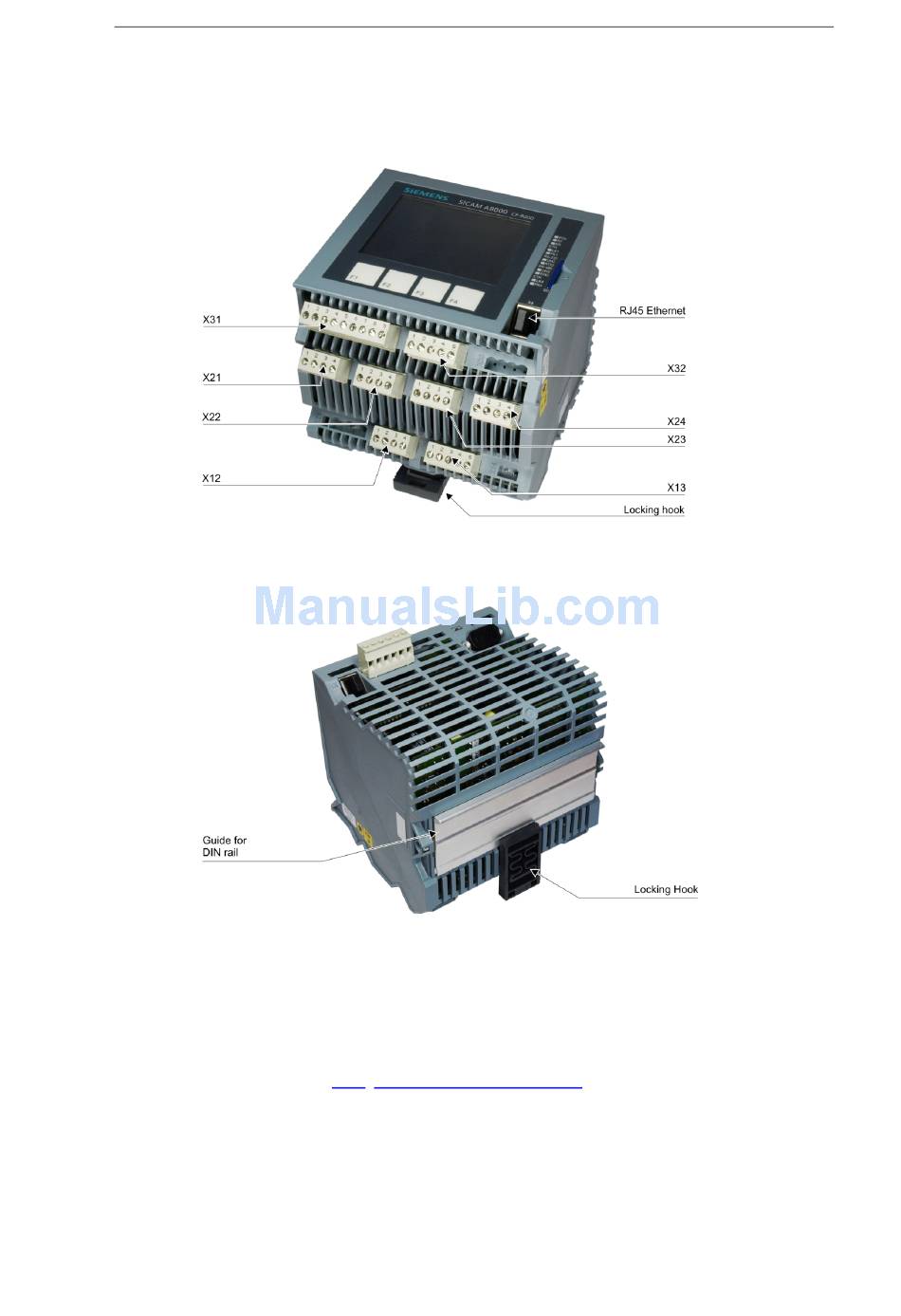

On the bottom side of the device are the connections for the process signals as well as for the
supply voltage.
At the back is the DIN rail mounting.
6.1.1.1

Locking Hook

The device is locked onto the DIN rail and also removed again using the locking hook.
Details see section 6.4.2,
