Installation and Circuitry
6.5.4

Coupling of external SICAM I/O Modules

CP-802x can be expanded by up to 8 external SICAM I/O Modules. Thereto the following
steps are essential:
·

Mounting of the bus connector for SICAM I/O Modules

·
Mounting of the SICAM I/O Modules
6.5.4.1 Mounting of the Bus Connector for SICAM I/O Modules
Each SICAM I/O Module is equipped with a bus connector (CM-8812). This must be equipped
separately from the I/O Module. You must disconnect the bus connector before mounting.

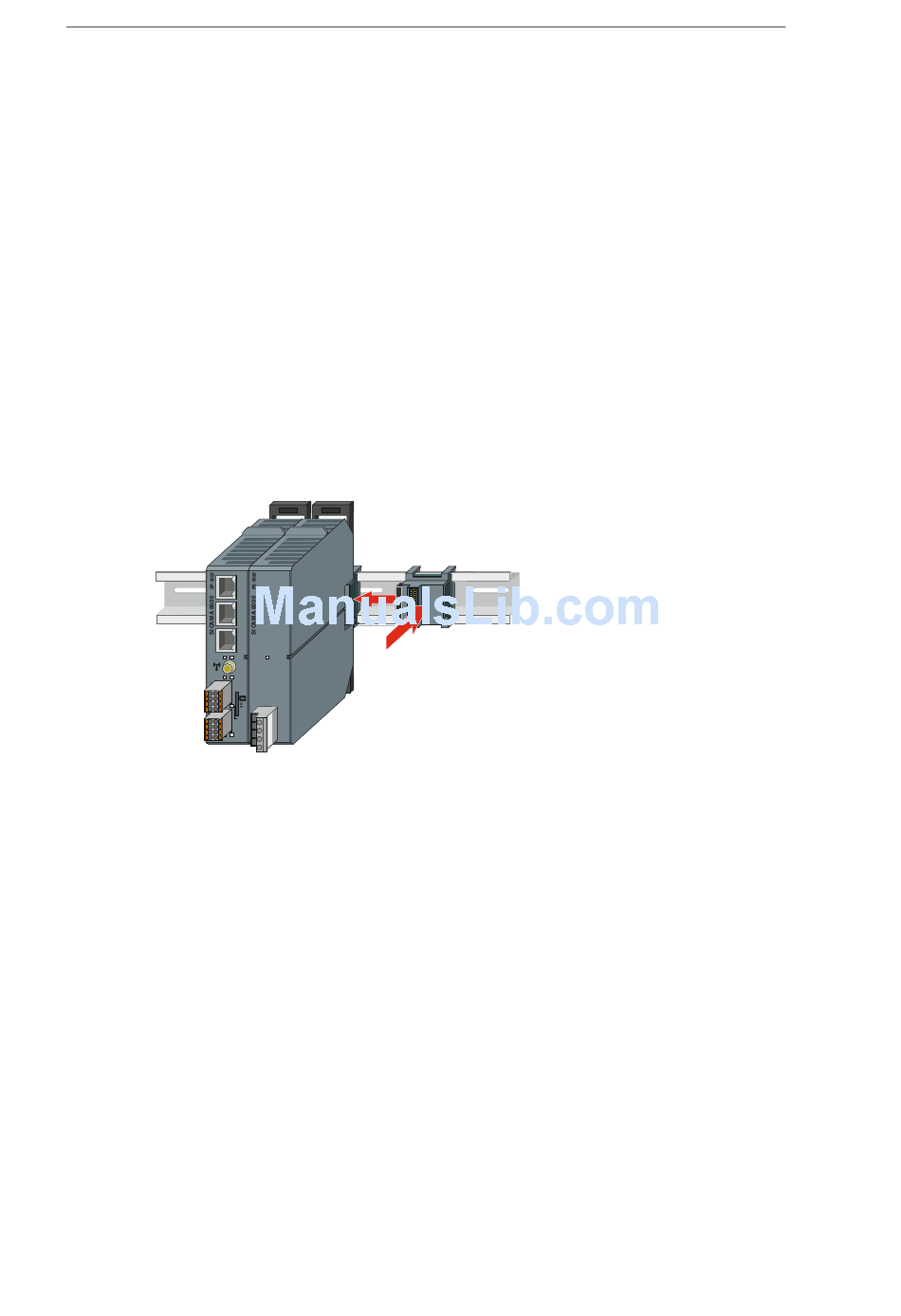

Click the first bus connector right beside the Power Supply Module on the DIN rail
push it into the bus plug of the Power Supply Module
seamlessly.
LK1
ETH
X1
PK1
LK4
ETH
X4
PK4
O H2
RS-2 3 2
X2
RTX2
RY ER
X7
LK7 PK7
X3
RTX3
OH3
X6
RTX6 OH6
Afterwards you can attach the bus connectors of further SICAM I/O Modules in the same way.
192
Unrestricted
k
j
RY ER
-
X1
+
k
. Both elements must be aligned
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
j
and
