Removal of the Lamp House

W
ARNING
W
ARNING
least 15 minutes before proceeding to remove the Lamp House.
C
AUTION
handled.
Necessary tools
10mm nut driver or flat screw driver.
How to remove the Lamp House from the projector?
1. Make sure the projector is switched off and cooled down.
2. Remove the cover of the Lamp House compartment.
3. Release the two retaining screws (reference 1 image 4-7) at the base of the Lamp House. Use a 10mm nut driver or a flat screw
driver.
4. Remove the Lamp House as follows:
a) Grip the Lamp House by the bottom handle and partially slide it out of the lamp compartment
b) Grip the Lamp House by both handles and remove it completely from the projector.
c) Place the Lamp House on a stable support.
Caution: Be aware of the weight of the lamp assembly. Take the necessary precautions to avoid personal injury.

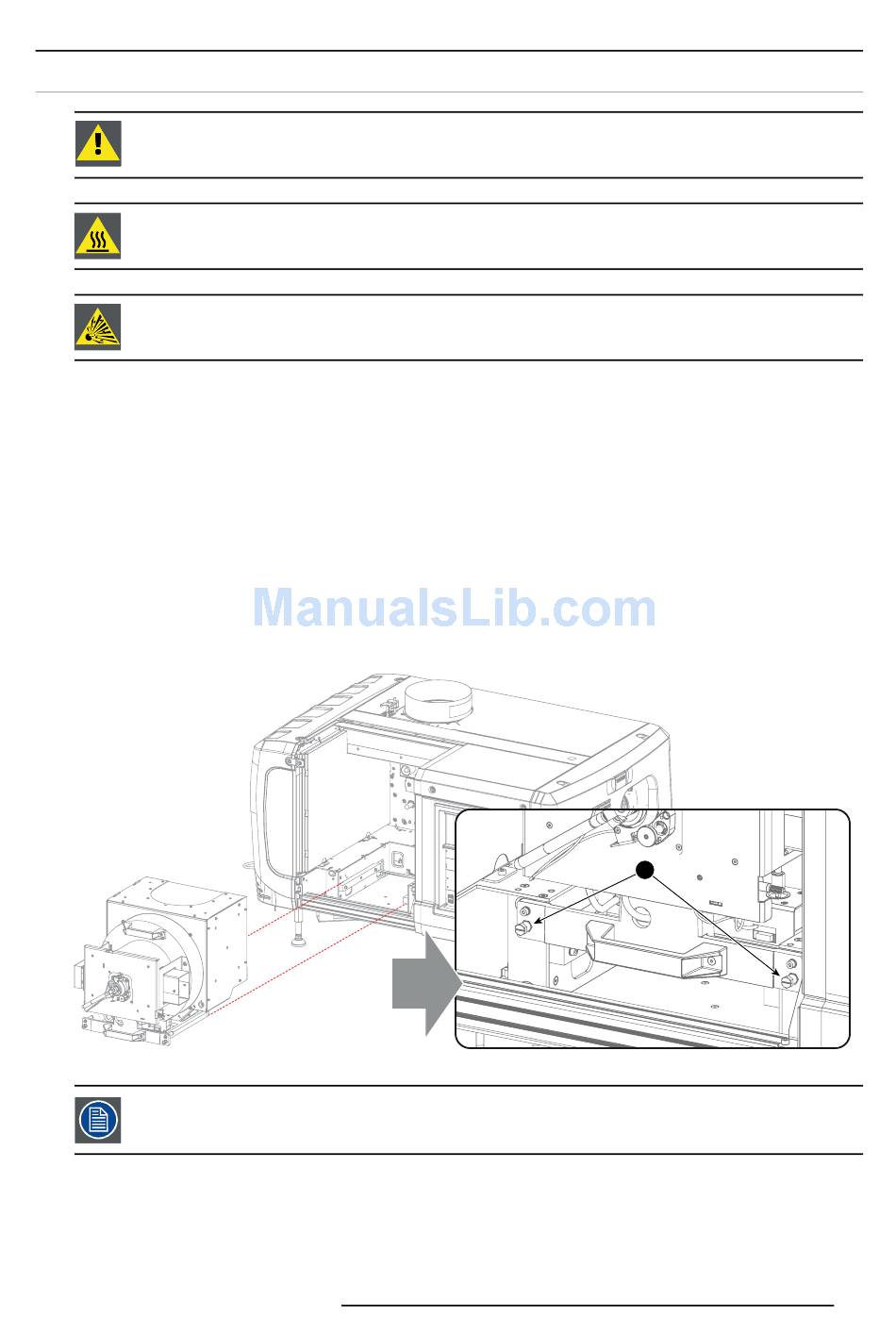

Image 4-7
This procedure is illustrated with a Motorized Lamp House. Nevertheless, the instructions are also applicable
for the manual Lamp House.
