10.10 Installation of the side cover

How to install
1. Place the top of the side cover on its place.
Close the cover as follow:
a) Gently move the bottom side of the cover towards the projector
b) Push both lock to each other and push at the same time the cover against the projector frame.
c) Release both locks so that they lock in their receivers.

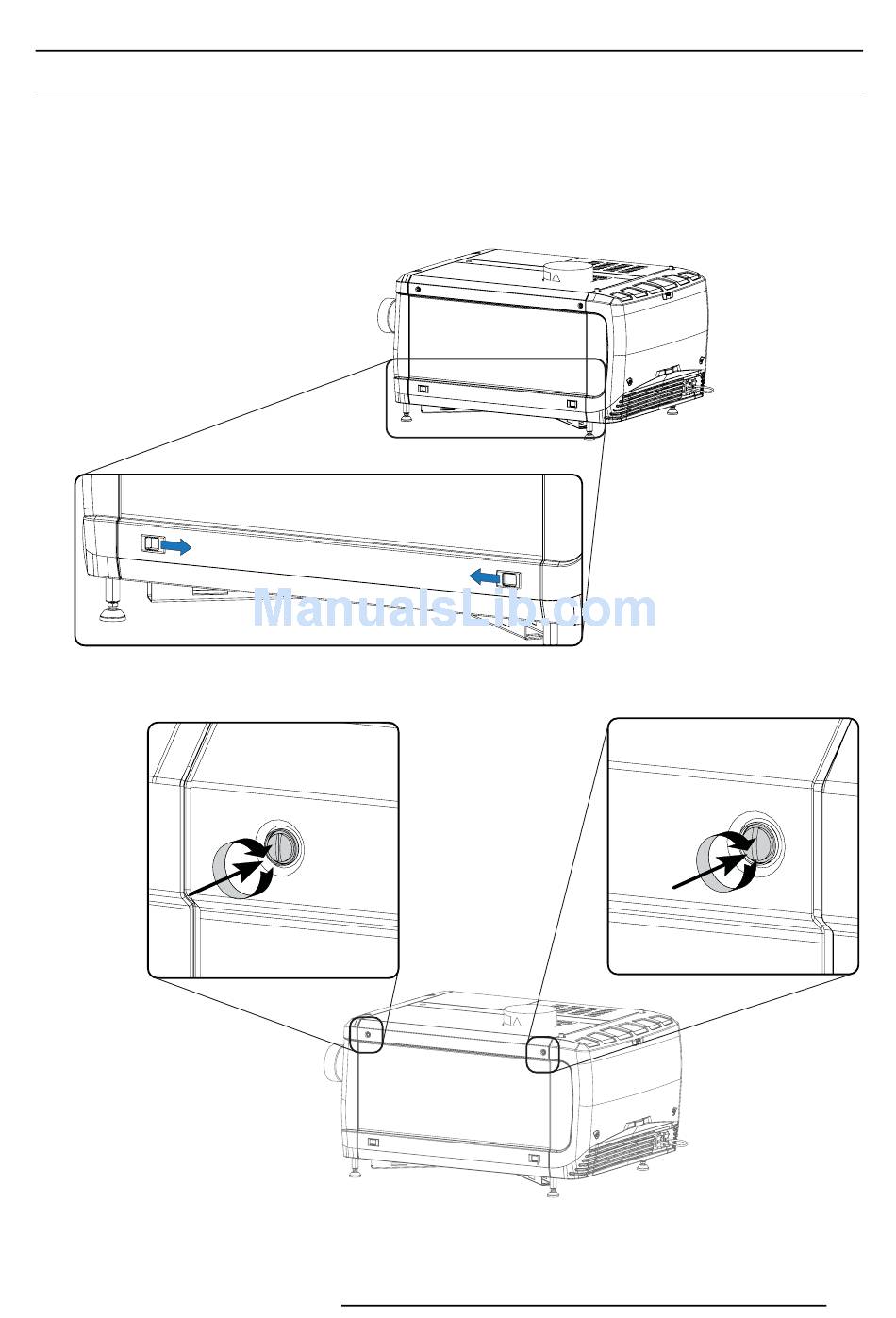

Image 10-20
2. Secure the cover by fasting both captive screws.
Image 10-21
Lock side cover
