Barco Prometheus I Safety & Instruction Manual page 64

4. Lamp & Lamp House
Image 4-38
Tip: Write down the serial number of the xenon lamp. You will need this while updating the lamp parameters after installation
of the xenon lamp. The serial number of the xenon lamp is engraved in the neck of the xenon lamp.

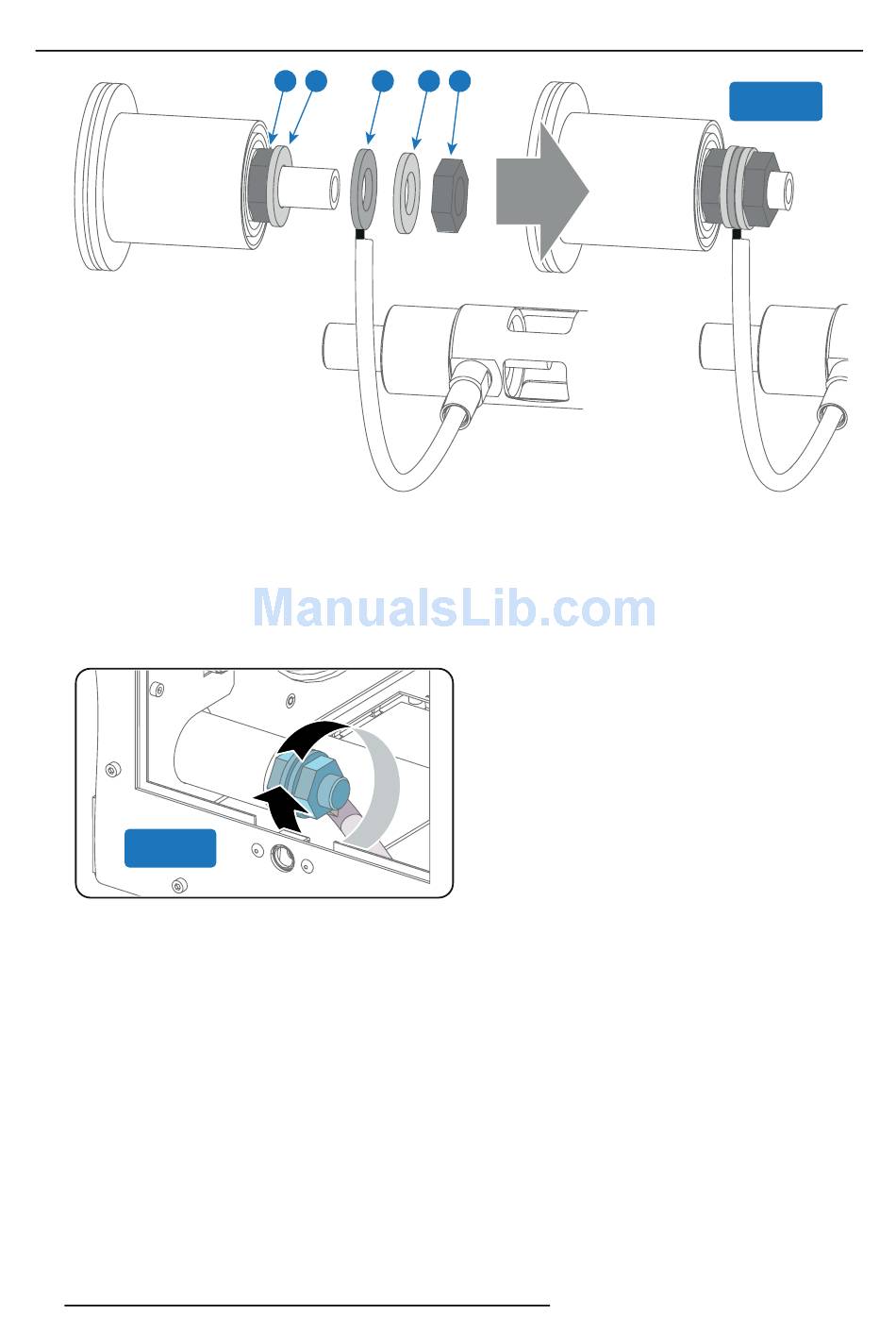

4. Check the cathode connection inside the lamp house. Use an 22 mm open-end wrench to hold the first nut while fastening the
second nut on the rod with a torque of 25Nm (18.4 lbf*ft) using a torque wrench with 22 mm hexagon socket. Ensure that there
is a flat washer at both sides of the wire lug. It's safer to do this check before the xenon lamp is installed to avoid accidental
bumping against the xenon lamp.
Tip: The cathode socket can easily pulled out from the Lamp House as a whole to perform this check.
Caution: These cathode connections must be checked with every lamp change!
25 Nm
Image 4-39
5. Check the cathode connection inside the lamp house. Use an 22 mm open-end wrench to hold the first nut while fastening the
second nut on the rod with a torque of 25Nm (18.4 lbf*ft) using a torque wrench with 22 mm hexagon socket. Ensure that there
is a flat washer at both sides of the wire lug.
Caution: These cathode connections must be checked with every lamp change!
6. Requires the lamp an anode adaptation bushing inside the anode support?
Tip: See supported xenon bulb lamps to know if your lamp requires an anode adaptation bushing.
60
5 6 7 8 9
R5905963 PROMETHEUS SERIES 09/03/2015
25 Nm
