12. Convergence

12.5 Green on blue convergence

Necessary tools
No tools.
Converging the GREEN pattern onto the BLUE pattern
Next , align the GREEN DMD in the vertical directions [4] and [5] and then proceed with the horizontal direction [6].
1. To translate GREEN vertically in the Y + direction, turn both [4] and [5] clockwise. Turn screws in equal increments.
2. To translate GREEN vertically in the Y - direction, turn both [4] and [5] anti-clockwise. Turn screws in equal increments.
3. For clockwise rotations of GREEN, turning [5] anti-clockwise would generally suffice. If much rotation is required, [4] may also
be turned in the opposite direction. Slight corrections to Y may be required after rotation.
4. For anti-clockwise rotations of GREEN, turning [5] clockwise would generally suffice. If much rotation is required, [4] may also
be turned in the opposite direction. Slight corrections to Y may be required after rotation.
5. To translate GREEN horizontally in the X + direction, turn [6] clockwise.
6. To translate GREEN horizontally in the X - direction, turn [6] anti-clockwise.

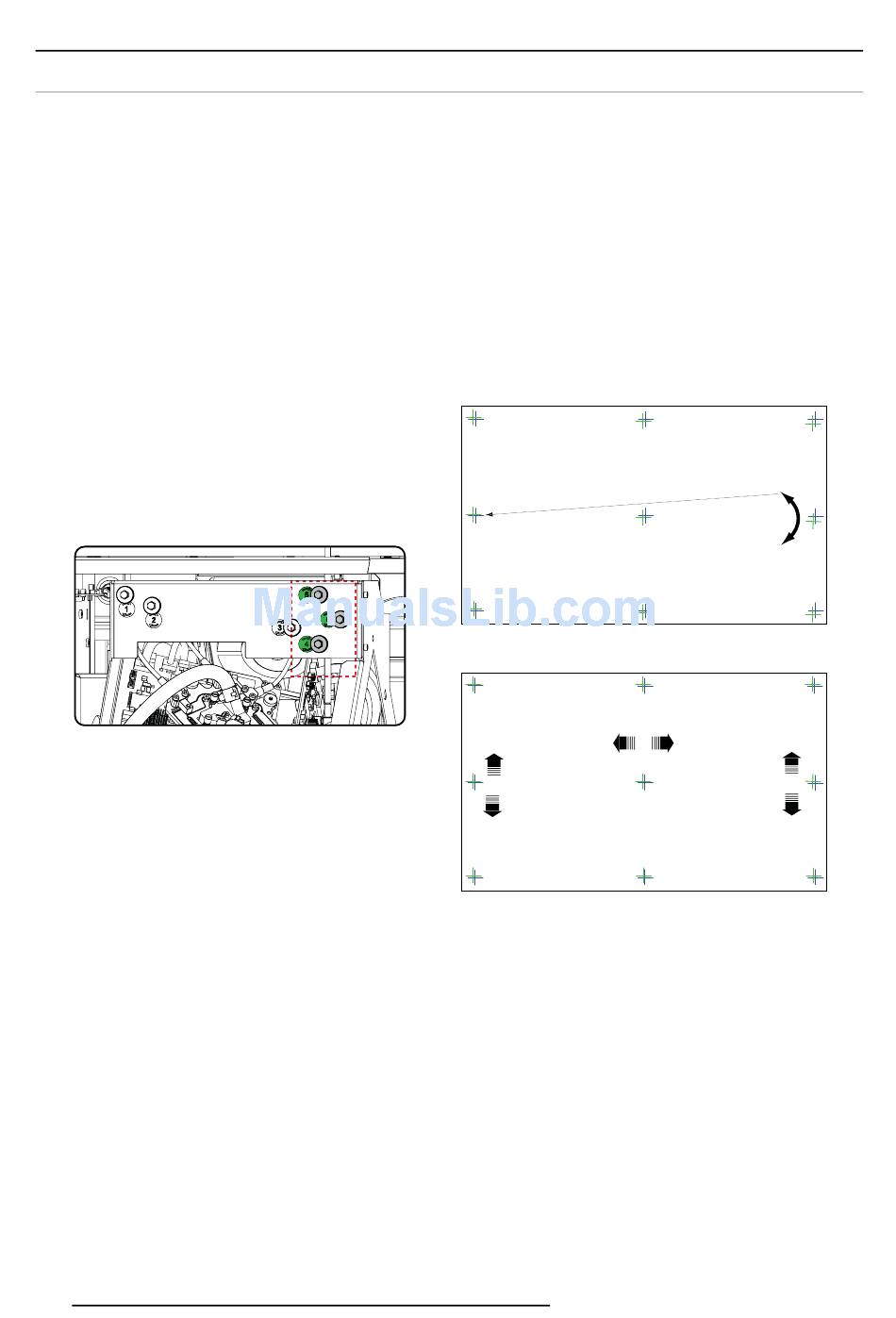

Image 12-8
Green on blue convergence
