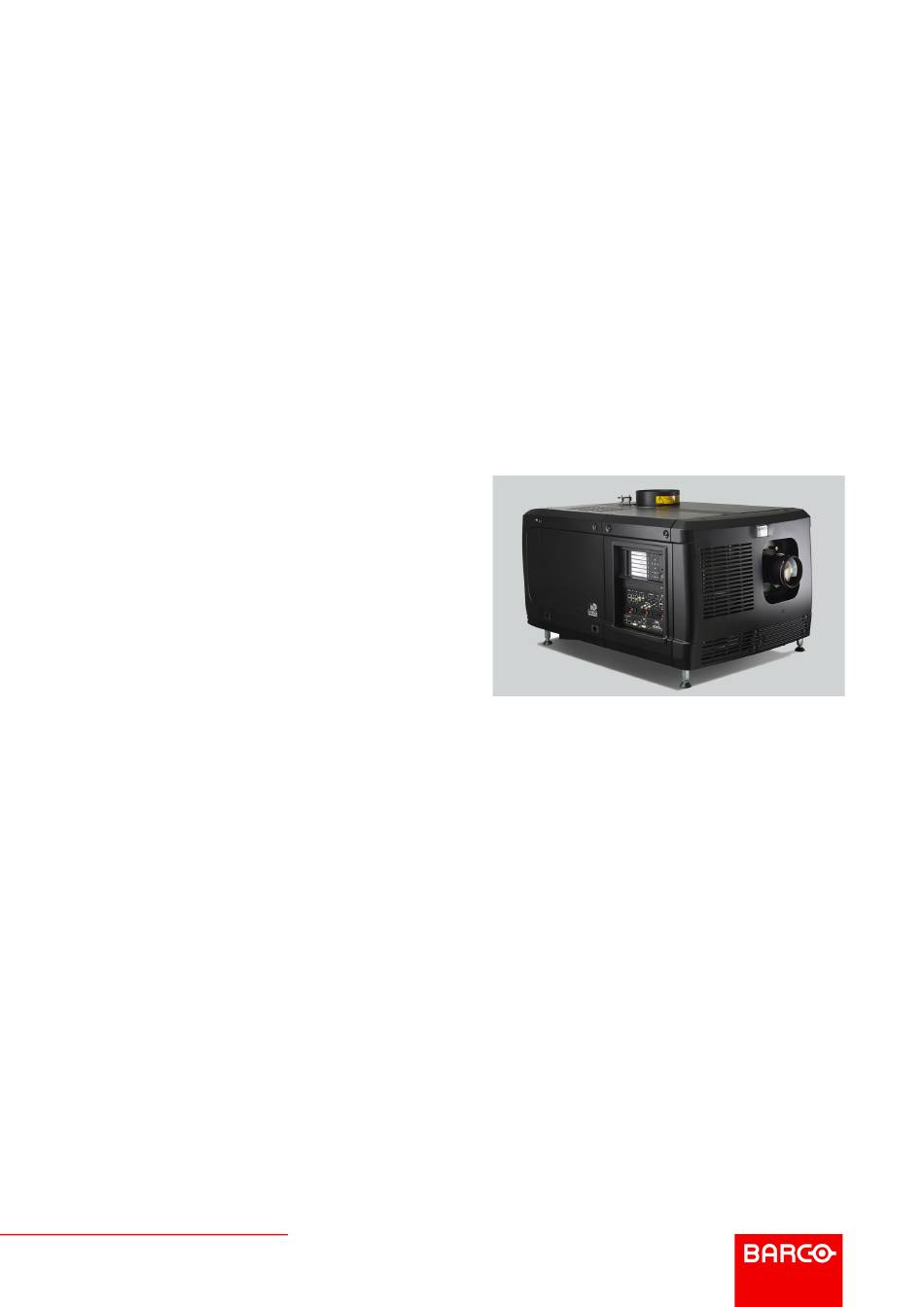

DPxK-32B
For DP2K-32B and DP4K-32B
User and Installation manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP K-32B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco DP K-32B Series

Summary of Contents for Barco DP K-32B Series

  • Page 1 DPxK-32B For DP2K-32B and DP4K-32B User and Installation manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 This software and the accompanying files are sold “as is” and without warranties as to performance or merchantability or any other warranties whether expressed or implied. In no event shall Barco be liable for damage of any kind, loss of data, loss of profits, business interruption or other pecuniary loss arising directly or indirectly.

  • Page 5: Table Of Contents

    Table of contents 1 Safety............................................9 General considerations .................................10 Important safety instructions ..............................11 2 General ..........................................15 Installation requirements ................................16 Unpacking the projector ................................17 Initial inspection ....................................20 Installation process overview ..............................20 3 Physical installation.....................................23 Positioning the DPxK-32B at port window ..........................24 Installation of the exhaust system ............................26 Access to the power connection...............................28 Power input setup of the DPxK-32B............................29...
  • Page 6 7.11 ICMP device certificate................................115 7.12 ICMP configuration via Communicator..........................117 7.13 ICMP reset......................................118 7.14 Obtaining the Barco ICMP certificate ..........................119 7.15 Removing a HDD from the ICMP............................120 7.16 Installing a HDD into the ICMP............................... 121 8 Communicator Touch Panel................................123 Introduction......................................
  • Page 7 12 Convergence ......................................... 155 12.1 Open the sealed compartment............................... 156 12.2 Close the sealed compartment .............................. 157 12.3 Convergence controls ................................. 158 12.4 Red on blue convergence ................................. 159 12.5 Green on blue convergence ..............................160 A Specifications........................................ 163 Specifications of the DP2K-32B ............................164 Specifications of the DP4K-32B ............................
  • Page 8 R5905754 /13 DPxK-32B...

  • Page 9: Safety

    Safety About this chapter Read this document attentively. It contains important information to prevent personal injury while installing and using the DPxK-32B projector. Furthermore, it includes several cautions to prevent damage to the DPxK-32B projector. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the DPxK-32B projector.

  • Page 10: General Considerations

    Owner's record The part number and serial number are printed on a label which is stuck on the respective part. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Barco dealer regarding this product.

  • Page 11: Important Safety Instructions

    Safety Product article number Product serial number Dealer 1.2 Important safety instructions To prevent the risk of electrical shock • This projector should be operated from an AC power source. Ensure that the mains voltage and capacity matches the projector electrical ratings. If you are unable to install the AC requirements, contact your electrician.
  • Page 12 Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 13 Safety should never be placed near or over a radiator or heat register. This projector should not be placed in a built-in installation or enclosure unless proper ventilation is provided. • Projection rooms must be well ventilated or cooled in order to avoid build up of heat. It is necessary to vent hot exhaust air from console to the outside of the building.
  • Page 14 Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.

  • Page 15: General

    Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. Observing the specification mentioned in this chapter is critical for projector performance.

  • Page 16: Installation Requirements

    General 2.1 Installation requirements Environmental conditions The table below summarizes the physical environment in which the DPxK-32B series projector may be safely operated or stored. Operating Non-Operating Environment Ambient Temperature 10 °C (50 °F) to 35 °C (95 °F) -15°C (5°F) to 60°C (140°F) Air cleanliness Clean office environment (equivalent with n.a.

  • Page 17: Unpacking The Projector

    Projector weight Do not underestimate the weight of the Barco DPxK-32B. The projector weights about ±140 kg (±309 lb.) without lens. Be sure that the pedestal on which the projector has to be installed is capable of handling five (5) times the complete load of the system.
  • Page 18 General Image 2-1: Open banding Open the box. Take out the small box between the outer and inner box containing the manuals. Remove the outer carton box Image 2-2: Remove outer carton Remove the inner carton box. R5905754 /13 DPxK-32B...
  • Page 19 General Image 2-3: Remove inner carton Loosen the banding by pulling the free end of the banding loop in the clip. Take off the upper carton plate (1) Remove from the wooden pallet (2) Image 2-4: Remove wooden pallet Take the projector from the wooden board by gripping the bottom of the projector and place the projector on the pedestal.

  • Page 20: Initial Inspection

    This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents and scratches, and that the operating panel is not scratched or cracked. The Barco Sales and Service office should be notified as soon as possible if this is not the case.
  • Page 21 Brightness lens is swapped with a High Contrast lens or vice versa. See user guide of the Communicator for detail SCC calibration instructions. Registration of the projector. The DPxK-32B is DCI compliant and should be registered by Barco. Therefore, the digital certificate inside the projector will be used to secure encryption key communication between the projector and the rest of the theatre system (server and theatre management system).
  • Page 22 General In case the projector is equipped with a HD-SDI input module apply a single or dual channel SMPTE (HD-SDI) source to the input ports of the HD-SDI input module and start up the projector. See chapter “Input & communication”, page 77. Use the Communicator (Touch Panel) to configure the applied source. See the user guide of the Communicator (Touch Panel) for more detailed information.

  • Page 23: Physical Installation

    Physical installation About this chapter This chapter describes how the mechanical and electrical set up of the projector has to be done. Overview • Positioning the DPxK-32B at port window • Installation of the exhaust system • Access to the power connection •...

  • Page 24: Positioning The Dpxk-32B At Port Window

    20 cm Image 3-1: Positioning at port window Barco offers a pedestal for the DPxK-32B series projector. This universal pedestal allows a solid and easy setup of the projector. The universal pedestal has a separate compartment to install the UPS unit (if available) for the DPxK-32B series projector. Futhermore, the universal pedestal contains a standard 19”...
  • Page 25 Physical installation Image 3-2: Projector centering Proceed to level the projector by adjusting the feet of the projector as follows: • Loosen the nuts (A), using a wrench of 24 mm, on the threaded rod. • Adjust the height of the 4 legs (B) to level the projector, using a 17 mm wrench. •...

  • Page 26: Installation Of The Exhaust System

    CAUTION: The projector may tilt maximum 15° forward and maximum 15° backwards. This includes the tilt created by the projector feet and the tilt created by the pedestal. Barco offers a pedestal for the DPxK-32B projector. This universal pedestal allows you to easily tilt the projector forward up to 6°.
  • Page 27 Physical installation WARNING: The exhaust system must match the duct of the projector seamless. No gap may exist between the connection of the duct and the exhaust system. This to prevent personal injury due to the UV light that comes out of the duct of the projector. Never look into the exhaust output on the top of the projector.

  • Page 28: Access To The Power Connection

    Physical installation Optional electrical connection of the fan to the projector The exhaust fan may electrically be connected with the projector. When that is done, the blower starts working when the lamp is switched on and stops working after the cool period is completed. The power socket is located next to exhaust output and may only be used to connect the external exhaust fan.

  • Page 29: Power Input Setup Of The Dpxk-32B

    Physical installation Image 3-8 The terminal barrier strip and Ү/Δ configuration block is accessible. 3.4 Power input setup of the DPxK-32B About the power input The projector power input can be configured for a power supply of 230/400V 3W+N+PE (Υ-connection) or for 208V 3W+PE (Δ-connection).

  • Page 30: Connecting The Dpxk-32B With The Power Net

    Physical installation How to switch from a Υ-connection to Δ-connection Loosen the 6 top nuts on the Υ/Δ configuration block. (1 to 6) Image 3-10: Υ to Δ connection Take off the mounted lins (A, B and C). Two links above each other or mounted between the upper and middle pin (A, B) and one link between the middle pin and lower pin (C).
  • Page 31 Physical installation CAUTION: The cross-sectional area of the conductors in the Power Supply Cord shall not be less than 4 mm or AWG 10. Required tools • Flat torque screw driver 4 mm • Adjustable wrench Required parts • (for 3W+N+PE, 230/400V) Certified power cable, minimum 4 mm² or AWG 10, 500V rated, cable diameter between 11 mm and 21 mm or •...

  • Page 32: Power Loop Through To The Projector Electronics

    Short power link cable with plug type C13/C14 How to loop through the power Plug in the short power cable (1) which was delivered with the projector. Warning: Always use the Barco short power cable which is delivered with the projector. R5905754 /13 DPxK-32B...

  • Page 33: Connecting A Ups To The Projector Electronics

    Physical installation Image 3-14: Power loop through connection Secure both plugs of the short cable with a fixation spring (2). Handle as follow: • Squeeze the fixation spring together. • Slide the fixation spring on the fixation pins (3) while squeezing together and push it against the power plug.
  • Page 34 Physical installation Image 3-15: UPS connection Secure the UPS inlet socket with a fixation spring. Handle as follow: • Squeeze the fixation spring together. • Slide the fixation spring on the fixation pins while squeezing together and push it against the power plug. •...

  • Page 35: Lamp & Lamp House

    Lamp & Lamp House About this chapter This chapter describes how to insert a lamp house in the projector and how to replace a lamp inside the lamp house. WARNING: DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY PHASE OF XENON LAMP HANDLING OR SERVICE.

  • Page 36: Introduction

    Lamp & Lamp House 4.1 Introduction Lamp and Lamp House The DPxK-32B projector is delivered with a manual or motorized XL Lamp House without lamp. The xenon bulb lamp is delivered separately and has to be installed on site by a qualified service technician. The xenon bulb lamp is packed in a protective container or wrapped in a protective cloth.

  • Page 37: Supported Xenon Lamps For The Xl Lamp House

    Communicator software if the lamp is listed in the list of supported lamps for this projector. Supported lamp types and their respective anode/cathode adapters for the XL Lamp House: Lamp type / Anode adaptation Cathode adapter Anode adapter Barco Ord bushing Supplier 3000W DHS OFR R8436061K R859987K R9855...
  • Page 38 Lamp & Lamp House Lamp type / Anode adaptation Cathode adapter Anode adapter Barco Ord bushing Supplier DXL-30BA R859984K R859985K R9855 USHIO DXL-45BA R8436111K R9855 USHIO DXL-60BA2 R8436111K R9806 USHIO DXL-65BA R8436111K R9855 USHIO DXL-65BA2 R8436111K R9855 USHIO DXL-70BA R8436111K...

  • Page 39: Removal Of The Lamp House

    R 8436111K R 8436061K Image 4-5 The shortest cathode adapter R8436101K is no longer needed for xenon lamps supported by Barco. For that this adapter has become obsolete. 4.3 Removal of the Lamp House WARNING: This procedure may only be performed by qualified technical service personnel.

  • Page 40: Removal Of The Xenon Lamp From Manual Xl Lamp House

    Lamp & Lamp House Image 4-6 This procedure is illustrated with a Motorized Lamp House. Nevertheless, the instructions are also applicable for the manual Lamp House. 4.4 Removal of the xenon lamp from manual XL Lamp House WARNING: DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY PHASE OF XENON LAMP HANDLING OR SERVICE.
  • Page 41 Lamp & Lamp House • Flat blade screw driver. • 2.5mm Allen wrench. How to remove the xenon lamp out of the manual XL Lamp House? Remove the hexagon socket head cap screw (reference 1 Image 4-7) which fastens the cathode of the xenon lamp.
  • Page 42 Lamp & Lamp House Support the xenon lamp inside the Lamp House with one hand while removing the UV blocker assembly from the lamp house. Warning: Supporting the xenon lamp with one hand prevents the xenon lamp from dropping and colliding with the chassis of the Lamp House.
  • Page 43 Lamp & Lamp House Image 4-12 Place the xenon lamp in its protective container or wrap the xenon lamp in a protective cloth and secure with two binders. Image 4-13: Left: Xenon lamp wrapped in a protective cloth. Right: Xenon lamp captured in a protective container. Remove the anode wire lug (reference 7 Image 4-14) from the anode socket.
  • Page 44 Lamp & Lamp House Image 4-14 Remove the cathode adapter from the xenon lamp by releasing the hexagon socket head set screw (reference 9 Image 4-15) of the adapter as illustrated. Use a 2.5mm Allen wrench. Note: Some xenon lamps have a cathode pin with screw threat (reference 10 Image 4-15. Image 4-15 Remove the anode adapter from the xenon lamp by releasing the hexagon socket head set screw (reference 13 Image 4-16) of the lamp adapter as illustrated.

  • Page 45: Installation Of The Xenon Lamp In Manual Xl Lamp House

    Lamp & Lamp House Image 4-16 Reinstall the UV blocker assembly and the side cover in case you do not intend to install another xenon lamp immediately in the Lamp House. CAUTION: Expired xenon lamps. Dispose of expired bulbs that are beyond warranty according the national regulations. See also related user manual of the lamp supplier for more guidance.
  • Page 46 Lamp & Lamp House WARNING: Always wear protective clothing (welder's jacket) when handling xenon lamps. WARNING: Always wear clean leather gloves with wrist protectors when handling xenon lamps. This procedure assumes that the anode support assembly and the side cover are already removed from the Lamp House due to the removal of the xenon lamp.
  • Page 47 Lamp & Lamp House Image 4-18 If no, make sure that there is no anode adapter installed on the anode of the xenon lamp. Install the anode wire lug (reference 7 Image 4-19) on the anode socket of the Lamp House as illustrated. Use an open-end wrench of 22 mm to hold the first nut (reference 5 Image 4-19) while fastening the second nut (reference 9 Image 4-19) with a torque of 25Nm (18.4 lbf*ft) using a torque wrench.
  • Page 48 Lamp & Lamp House Check the cathode connection inside the lamp house. Use an 22 mm open-end wrench to hold the first nut while fastening the second nut on the rod with a torque of 25Nm (18.4 lbf*ft) using a torque wrench with 22 mm hexagon socket.
  • Page 49 Lamp & Lamp House Tip: Write down the serial number of the xenon lamp. You will need this while updating the lamp parameters after installation of the xenon lamp. The serial number of the xenon lamp is engraved in the neck of the xenon lamp. Image 4-22 Slide the anode connector in its position on the Lamp House as illustrated.
  • Page 50 Lamp & Lamp House Secure the UV blocker by fastening the four quarter turn screws (reference 5 Image 4-25) as illustrated. Note: Ensure that the quarter turn screws turning wires are flush with the cover or interference will occur while inserting the Lamp House into the projector. Image 4-25 Install the side cover of the Lamp House and fasten the three quarter turn screws (reference 4 Image 4-26) of the cover.

  • Page 51: Check If Anode Support Must Be Provided With A Plain Washer

    Lamp & Lamp House Image 4-27 CAUTION: The “LAMP INFO” parameters which are stored on a chip inside the Lamp House MUST be updated after each installation of an xenon lamp inside the Lamp House. Neglecting this update will result in poor performance and short life time of the xenon lamp. A realignment of the xenon lamp in its reflector is required after the installation of the xenon lamp in the Lamp House.

  • Page 52: Installation Of The Lamp House

    Lamp & Lamp House Image 4-28 In case the anode pin drops out the anode support place a plain washer (reference 3) between the UV blocker and anode support (reference 4). Use a 2.5mm Allen wrench to loosen/fasten the screw (reference 1) of the anode support.

  • Page 53: Resetting The Lamp Parameters

    Lamp & Lamp House How to install the Lamp House in the projector? Check if the six quarter turn screws turning wires (reference 1Image 4-30) are flush with the cover or interference will occur while inserting the Lamp House into the projector. Image 4-30 Grip the Lamp House by both handles and place the front of the Lamp House on the base plate inside the lamp compartment of the projector, lining up the foot of the Lamp House with the slots on the base.
  • Page 54 Lamp & Lamp House Image 4-32: Reset lamp info, new lamp A Reset lamp parameters selection window opens (2). To get new lamps, click on From new list (3). The lamp article and serial number opens (4). Fill out the article number of the new lamp (5a) click on Select (5b) to display a list of possible article numbers (6).
  • Page 55 Lamp & Lamp House For a used lamp, how to set back the original values While the Lamp information window is displayed, click on Change lamp (1). Image 4-33: Reset lamp info, used lamp A Reset lamp parameters window opens (2). To get history of the used lamps, click from history (3).

  • Page 56: Realignment Of The Lamp In Its Reflector (Manual Lamp House)

    Lamp & Lamp House Select the desired lamp (7) and click OK (8). The article number and serial number of the selected lamp is added to the Reset lamp parameters window (10). The lamp run time and number of strikes of this lamp are added in Lamp parameter preview (12). The lamp parameters can be edited by the user under personnel maintenance and responsibility.
  • Page 57 Lamp & Lamp House Image 4-35: Light mode selection Adjust the X-axis (ref X Image 4-36), the Y-axis (ref Y Image 4-36) and the Z-axis (ref Z Image 4-36) for maximum current light output (Footlambert Measured). Carefully turn the thumbscrew for maximum light output.
  • Page 58 Lamp & Lamp House R5905754 /13 DPxK-32B...

  • Page 59: Lenses & Lens Holder

    Lenses & lens holder About this chapter This chapter gives an overview of available lenses for the DPxK-32B and explains how you can select the best suited lens for your specific situation using the lens calculator. Also, it is explained how to install and remove a lens from the projector lens holder and how you can shift, zoom and focus the lens.

  • Page 60: Available Lenses

    Lenses & lens holder 5.1 Available lenses Which lenses are available for my projector? The table below is subject to changes and was last updated on 22/12/2017. Consult Barco's web site for the most recent information about available lenses. Throw Range...

  • Page 61: Lens Installation

    Lenses & lens holder The lens calculator allows you to have an overview of which lenses are suitable for your specific projector setup. Just make your selection of parameters and all possible configurations are displayed. Image 5-1: Digital cinema lens calculator Take into account that when the projector is tilted the Screen Width you have to fill in should be larger than the physical screen width due to the keystone distortion of the projected image.
  • Page 62 Lenses & lens holder Image 5-2 Take the lens assembly out of its packing material and remove the lens caps on both sides. Place the lens holder in the “unlocked” position by moving the lens lock handle (1) towards the lens power supply socket (2).
  • Page 63 Lenses & lens holder Image 5-4: Mount lens Insert the lens until the connector seats into the socket. • the pin (3) on the lens holder matches with the sleeve in the lens. • the connector seats into the socket (2) Warning: Do not release the Lens yet, as the Lens may fall out of the Lens Holder.

  • Page 64: Lens Removal

    Lenses & lens holder Image 5-6 Perform a lens HOME & RETURN operation. (See user guide of the “Communicator” chapter Installation > Advanced > Lens parameters) Note: The HOME & RETURN operation enables the projector to determine the reference positions of the motorized ZOOM and FOCUS of the installed lens.

  • Page 65: Lens Shift, Zoom & Focus

    Lenses & lens holder Image 5-8: Remove lens It's recommended to place the Lens caps of the original Lens packaging, back on both sides of the removed Lens to protect the optics of the Lens. It's recommended to place the foam rubber of the original projector packaging, back into the Lens opening to prevent intrusion of dust.
  • Page 66 Lenses & lens holder +50% +50% -50% -30% +30% -30% -50% +30% Image 5-9 DMD. Field of view. How to shift the lens of the DPxK-32B? Use the up and down arrow keys on the local keypad to shift the lens vertically and use the left and right arrow keys on the local keypad to shift the lens horizontally.

  • Page 67: Back Focal Length Adjustment

    Lenses & lens holder 5.6 Back Focal Length adjustment When to adjust the Back Focal Length? If a lens is used with a throw ratio suited for the application, (lens selection depends on projection distance and screen size) typically one would NEVER need to adjust the Back Focal Length of the projector. A Back Focal Length adjustment is only required in case the Focus range of the installed lens does not capture the projection screen either for FLAT and/or for SCOPE.
  • Page 68 Lenses & lens holder Image 5-14 Zoom the lens for maximum image on the screen (WIDE). Is it possible to focus the center of the projected image? ► If yes, the Back Focal Length is OK. ► If no, the Back Focal Length needs realignment. Proceed with the next procedure. How to adjust the Back Focal Length? Unlock and loosen the 4 set screws (reference 11 Image 5-15) of the Lens Holder by 1 centimeter.
  • Page 69 Lenses & lens holder Note: This is the nominal position of the Lens Holder. Caution: Do not remove any of the Scheimpflug adjustment nuts completely from the threaded rod. Otherwise the lens holder front plate with lens will fall off. Image 5-17 Zoom the lens for maximum image on the screen (WIDE) and focus the center of the projected image using the motorized focus control (Local Keypad).
  • Page 70 Lenses & lens holder Image 5-19 Zoom the lens for minimum image on the screen (TELE) and focus the center of the projected image using the motorized focus control (Local Keypad). Image 5-20 Is it possible to focus the center of the projected image using the motorized focus control (Local Keypad) ? Ensure that the lens is zoomed for minimum image on the screen (TELE).

  • Page 71: Scheimpflug Adjustment

    Lenses & lens holder 5.7 Scheimpflug adjustment What has to be done ? The lens holder has to be adjusted so that the “sharp focus plane” of the projected image falls together with the plane of the screen (Fp1→Fp2). This is achieved by changing the distance between the DMD plane and the lens plane (Lp1→Lp2).
  • Page 72 Lenses & lens holder 1, 2 and 3 are adjustment points. 4 is a locking point and NOT used during Scheimpflug adjustment. Required tools • Allen key 3 mm • Nut driver 13 mm • Nut driver 10 mm How to adjust Project a green focus pattern.
  • Page 73 Lenses & lens holder Image 5-26: Left bottom focusing Sharpen bottom right corner of the screen by adjusting nut 2. Image 5-27: Right bottom focusing Sharpen top right corner of the screen by adjusting nut 3 R5905754 /13 DPxK-32B...

  • Page 74: Fixation Of The Lens Holder Front Plate

    Lenses & lens holder Image 5-28: Corner focusing Repeat from go to step 6 until the projected focus pattern is as sharp as possible in the center, left, right, top and bottom of the screen. Continue with the Fixation of the lens holder front plate procedure. 5.8 Fixation of the Lens Holder front plate When fixing the Lens Holder front plate After performing the procedure for Scheimpflug adjustment or Back Focal Length adjustment the Lens Holder...
  • Page 75 Lenses & lens holder Turn in the three set screws indicated with reference 11 Image 5-30 without disturbing the projected image. Tighten lightly . Do not turn in the set screw at the lower left of the Lens Holder! Note: Ensure that the edges of the projected test pattern remain in place on the screen. Any movement of the image will affect the Scheimpflug adjustment.
  • Page 76 Lenses & lens holder R5905754 /13 DPxK-32B...

  • Page 77: Input & Communication

    Input & communication Overview • Introduction • Local keypad of the DPxK-32B • Integrated Cinema Processor (ICP) • HD-SDI Input Module (optional) • Quad 3G-SDI Input Module (optional) • Integrated Media Block/Server (optional) • Cinema Controller of the DPxK-32B R5905754 /13 DPxK-32B...

  • Page 78: Introduction

    Image 6-1 Fan Control Board (FCB). Barco Cinema Controller. Integrated Cinema Processor (ICP). Barco ICMP (inserted in ICP slot and optional Optional slot for either IMB, IMS or HD-SDI input slot). module. CAUTION: A unit may only be removed from the card cage by qualified service personnel.

  • Page 79: Integrated Cinema Processor (Icp)

    The zoom keys (8) allow you to zoom in or out the projected image on the screen. 6.3 Integrated Cinema Processor (ICP) In case the projector is equipped with a Barco ICMP no ICP board is inserted. All ICP functionality is integrated in the Barco ICMP.
  • Page 80 Input & communication LEDs and ports on the Integrated Cinema Processor POWER STAT STAT STAT STAT CINEMA CONT Image 6-3 ICP is powered. CINEMA port selected. When on, LED 7 will be ICP software state, normal operation is green out. blinking.

  • Page 81: Hd-Sdi Input Module (Optional)

    Input & communication 6.4 HD-SDI Input Module (optional) Not available for purchase at Barco for use in Taiwanese market. Depending on the projector configuration the projector card cage is either equipped with an ICP or ICMP. In case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally inserted into the slot below the ICP.
  • Page 82 Input & communication Source: 2K General settings Advanced settings Port Port type Mode Scan type Color Pixel mapping Calibration space 3G-level B-Dual link 4:4:4 12 Progressive XYZ/ 3G-level A-Single bits/color link 3G-level B-Dual link HDSDI 4:4:4 10 Progressive HDSDI-Dual link Single Duallink AB bits/color...
  • Page 83 Input & communication Source: 2K-3D General settings Advanced settings Port Port type Mode Scan type Color Pixel mapping Calibration space Progressive SF- YCbCr HDSDI - Single 1st field dominant Interleaved Dual (separate left / right eye) Progressive SF - YCbCr HDSDI - Single 2nd field dominant...

  • Page 84: Quad 3G-Sdi Input Module (Optional)

    Input & communication Source: 2K-HFR General settings Advanced settings Port Port type Mode Scan type Color Pixel mapping Calibration space Progressive SF - 2nd field dominant 3GSDI HFR 4:2:2 12 Progressive YCbCr 3G - Level A - Single bits/color Interleaved 3G - Level B - Interleaved 4:4:4 10...
  • Page 85 Input & communication When using all 4 four inputs to create the image connect the quadrants of the image to the inputs as indicated on the drawing. Image 6-6: Quadrant connection To configure the input, consult the Communicator manual Source formats General settings Advanced settings Source...
  • Page 86 Input & communication General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space Progressive - field bit normal Progressive - field bit inverted Progressive SF - 2nd field dominant Progressive SF- 1st field dominant 4:4:4 12 Progressive XYZ/...
  • Page 87 Input & communication General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space Progressive SF- YCbCr 3G - Level B - Single 1st field dominant Dual stream Dual (separate left / right eye) Progressive SF - YCbCr 3G - Level B - Single...
  • Page 88 Input & communication General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space Dual (separate left / right eye) 3G - Level B - Single Interleaved Dual (separate left / right eye) 2K-HFR A or 3G-SDI link - 4:2:2 10 Progressive...
  • Page 89 Input & communication General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space 3G-SDI HS- 4:2:2 10 Progressive YCbCr 3G - Level A - Single bits/color Single Link Progressive - field bit normal Progressive - field bit inverted Progressive SF - 2nd field...

  • Page 90: Integrated Media Block/Server (Optional)

    6.6 Integrated Media Block/Server (optional) Not available for purchase at Barco for use in Taiwanese market. Depending on the projector configuration the projector card cage is either equipped with an ICP or ICMP. In case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally inserted into the slot below the ICP.

  • Page 91: Cinema Controller Of The Dpxk-32B

    Input & communication 6.7 Cinema Controller of the DPxK-32B Location of the communication ports RS 232 IN 3D INTERFACE PERIPHERAL PORT DVI IN A DVI IN B USB 2.0 GENERAL INTERFACE I/0 Image 6-9 Functionality Local Area Network (LAN: 10/100/1000 base-T) port Local Area Network (LAN: 10/100/1000 base-T) with built-in Ethernet switch (port 1 and port 2).
  • Page 92 Input & communication GENERAL PURPOSE INPUT/OUTPUT (GPIO) port This 37 pin connector (reference 6 Image 6-9) can be used to send or receive trigger signals from other devices. These input/output pins can be programmed by macros created with the Communicator software.
  • Page 93 Input & communication DVI Input formats Source Input Scan type Color space Sampling Color depth Vertical rate standard Single DVI VESA Progressive 4:4:4 8 bit (640x480) Single DVI VESA Progressive 4:4:4 8 bit (640x480) Single DVI VESA Progressive 4:4:4 8 bit (800x600) Single DVI VESA...
  • Page 94 Input & communication R5905754 /13 DPxK-32B...

  • Page 95: Icmp

    ICMP HDMI 1.4 specifications • ICMP status LEDs • ICMP HDD status LEDs • ICMP device certificate • ICMP configuration via Communicator • ICMP reset • Obtaining the Barco ICMP certificate • Removing a HDD from the ICMP R5905754 /13 DPxK-32B...
  • Page 96 ICMP • Installing a HDD into the ICMP R5905754 /13 DPxK-32B...

  • Page 97: Icmp Introduction

    As an integrated component of the projector, installation and maintenance of the ICMP requires the same skills and the same precautions as an intervention on the projector itself. For order info see www.barco.com. Front face of the ICMP The last produced model is equipped with two HDMI 2.0 as video source.

  • Page 98: Icmp Hdd

    The ICMP (reference 1) is inserted into the former ICP slot and IMB slot next to the Barco Cinema Controller (reference 2). ICMP location in the Card Cage of a DPxk B-series, C-series, BLP-series or CLP series projector.
  • Page 99 HDD models validated by Barco Only the original HDD spare parts provided by Barco or models validated by Barco (see list below) can be used in the ICMP. All deviations from this rule void warranty.

  • Page 100: Icmp Communication Ports

    ICMP 7.3 ICMP communication ports Location of the communication ports Image 7-7: ICMP (with HDMI 2.0). Functionality AUDIO-AES 1-8 (9-16) ICMP outputs sixteen audio signals equitably distributed over these two RJ45 connectors, which can be configured independently. The mapping of audio channels (content) on each audio output (AES outputs of the ICMP) is performed by configuring the ICMP via the Communicator software.

  • Page 101: Icmp Source Input Ports

    ICMP USB 3.0 The ICMP can be connected to a USB 3.0 Media to load content. The USB port can be used to load content (DCP), or keys (KDM), or software update. NOTE: These ports are recommended for fast ingest when connected to an appropriate USB 3.0 source. Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the cables, connectors and communications protocols used in a bus for connection, communication, and power supply between computers and electronic devices.

  • Page 102: Icmp Displayport Specifications

    ICMP Functionality HDMI A (B) HDMI 2.0 connector to connect a video source. NOTE: It is recommended to use the HDMI 2.0 ports for faster transfer of video and audio data. 3G-SDI A (B) SDI connector to connect a video source. HDMI HDMI 1.4 connector to connect a video source.
  • Page 103 ICMP 2D Formats / Single DP Color depth Display Mode Port 1920 x 1080 @ 60 fps 8 bpc, 10 bpc Single 1920 x 1200 @ 60 fps 8 bpc, 10 bpc Single 2048 x 1080 @ 48, 60 fps 8 bpc, 10 bpc Single 2048 x 1536 @ 60 fps...

  • Page 104: Icmp Sdi Specifications

    ICMP 7.6 ICMP SDI specifications 3G-SDI Serial Digital Interface (SDI) is a serial link standardized by ITU-R BT.656 and the Society of Motion Picture and Television Engineers (SMPTE). SDI transmits uncompressed digital video over 75-ohm coaxial cable within studios, and is seen on most professional video infrastructure equipment. The first revision of the standard, SMPTE 259M, was defined to carry digital representation of analog video such as NTSC and PAL over a serial interface and is more popularly known as standard- definition (SD) SDI.
  • Page 105 ICMP In direct mapping (level A) this is used to achieve higher frame rates. (50, 59.940 and 60 fps streams are supported). Dual Stream 3G HD-SDI signal Dual Stream 3G HD 4:2:2 Signal #1 3Gb/s HD 4:2:2 Signal #2 Dual Stream 3G is a specific variant of the 3G signal which combines two completely separate 4:2:2 image streams into a single 3G signal.
  • Page 106 ICMP Source Display Rate Scan Type SMPTE Standard Frame Rate Resolution SMPTE 274M 1920 x 1080 23.976 23.976 Progressive SMPTE 428-8 2048 x 1080 Y Cb Cr 4:2:2 12-Bit only Y Cb Cr 4:4:4 10 or 12-Bit 29.970 29.970 RGB (XYZ) 4:4:4 10 or 12-Bit SMPTE 274M 1920 x 1080 23.976...

  • Page 107: Icmp Hdmi 2.0 Specifications

    ICMP Source Display Rate Scan Type SMPTE Standard Frame Rate Resolution SMPTE 296M 1280 x 720 23.976 23.976 Progressive Y Cb Cr 4:4:4 10-Bit RGB (XYZ) 4:4:4 10-Bit 29.970 29.970 59.940 59.940 SMPTE 274M 1920 x 1080 Progressive 59.940 59.940 Y Cb Cr 4:2:2 10-Bit SMPTE 274M 1920 x 1080...
  • Page 108 ICMP Full Range and Limited Range Quantization are supported for all specified formats. BT.709 and DCI-P3 are supported for all formats. For HDR content (UHD and 4K only) the BT.2020 color coding is supported. All video streams should have a progressive scan order, with the exception of 1920x1080i 60 fps (interlaced scan).
  • Page 109 ICMP Color coding Bit depth Format Frame Rate 1920x1080 2048x1080 119.88 YCbCr 4:4:4 YCbCr 4:2:2 3840x2160 23.976 4096x2160 24 25 YCbCr 4:4:4 29.97 YCbCr 4:2:2 3840x2160 4096x2160 59.94 YCbCr 4:4:4 YCbCr 4:2:2 HDMI 2.0 Supported 3D (Frame Packing) Formats Color coding Bit depth Format Frame Rate...

  • Page 110: Icmp Hdmi 1.4 Specifications

    ICMP HDMI 2.0 Supported Dual (Twin) Link Formats (2D formats only) Color coding Bit depth Format Frame Rate 1920x1080 23.976 2048x1080 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 3840x2160 23.976 4096x2160 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 In Dual (Twin) Link both HDMI2 inputs (port A & port B) should have to same Format, Frame Rate and Color coding.
  • Page 111 ICMP HDMI 1.4 specifications HDMI1.4a, including HDCP1.4 HDMI 1.4 Supported 2D Formats (progressive) Color coding Bit depth Format Frame Rate 720x480 YCbCr 4:4:4 YCbCr 4:2:2 720x576 YCbCr 4:4:4 YCbCr 4:2:2 1280x720 23.976 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 119.88 1680x720 23.976 YCbCr 4:4:4 YCbCr 4:2:2...
  • Page 112 ICMP Color coding Bit depth Format Frame Rate 2560x1080 23.976 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 3840x2160 23.976 4096x2160 YCbCr 4:4:4 YCbCr 4:2:2 29.97 HDMI 1.4 Supported 2D (Interlaced) Formats Color coding Bit depth Format Frame Rate 720x576 1920x1080 29.97 59.94 HDMI 1.4 Supported 3D (Frame Packing) Formats Color coding...

  • Page 113: Icmp Status Leds

    ICMP HDMI 1.4 Supported Audio Formats Sample Rate Sample coding Bit depth Format 2 channels L-PCM 5.1 channels L-PCM 7.1 channels L-PCM 7.9 ICMP status LEDs ICMP status LEDs and Reset button LEDs on ICMP front panel give information on the status of the device. Image 7-10 Power / Error LED Ready LED...

  • Page 114: Icmp Hdd Status Leds

    ICMP 7.10 ICMP HDD status LEDs ICMP HDD status LEDs Image 7-11 HDD I/O LED RAID LED Status overview HDD I/Oand RAID LEDs: HDD I/O ICMP HDD Status RAID HDD idle / Disk in RAID OK. Blinking Green HDD I/O activity / Disk in RAID OK. Blinking Green Blinking Red HDD I/O activity / RAID rebuilding.

  • Page 115: Icmp Device Certificate

    Purpose of the Barco ICMP device certificate The device certificate (*.pem) of the Barco ICMP is a digital certificate signed by Barco which is required when ordering the KDM to play a DCP that is ingested on the ICMP. The device certificate is stored inside the ICMP and on a web server.
  • Page 116 ICMP Studios Device manufacturer Barco signed X.509 device certificate (PKI CA) BARCO-ICMP-0123456789.pem Content distributors (Key supplier) .pem 0123456789 ICMP Communicator, Commander, Web Commander. Image 7-12 Trusted Device List (TDL) The Goal of the TDL is to maintain timely and accurate information on participating auditoriums so that participating subscribers can obtain information needed to issue KDMs.

  • Page 117: Icmp Configuration Via Communicator

    • Verify internal clock of the ICMP. All installation and maintenance operations on the ICMP are performed via Communicator, the Barco configuration software. Please refer to the Communicator user guide for further information. R5905754 /13 DPxK-32B...

  • Page 118: Icmp Reset

    ICMP About Default settings The restore of factory setting is a feature that allows removing all settings performed on the ICMP and replaces them with the default values set at the factory. Please refer to the Communicator user guide for further information.

  • Page 119: Obtaining The Barco Icmp Certificate

    WARNING: Resetting the ICMP with the hardware reset button may cause damage to the content on the HDDs. A re-configuration of the whole system may be required! 7.14 Obtaining the Barco ICMP certificate Required tools Smartphone (with auto-focus) or control software (e.g. Communicator, Commander or WEB Commander) Using the CertID label to download the ICMP certificate Scan the QR code (reference 1) on the front face of the ICMP with a smartphone.

  • Page 120: Removing A Hdd From The Icmp

    ICMP use the Communicator to download the ICMP certificate from the ICMP main board. For detailed instructions see user guide of the Communicator. 7.15 Removing a HDD from the ICMP In case the ICMP has to be returned to factory (e.g. for repair) the non defective HDDs should be removed and kept.

  • Page 121: Installing A Hdd Into The Icmp

    This procedure assumes that the HDD slot of the ICMP is empty. If not, see procedure “Removing a HDD from the ICMP”, page 120. CAUTION: Always use a new empty spare part HDD approved by Barco to replace a malfunction HDD. Do not use a HDD from another ICMP HDD set.
  • Page 122 ICMP Image 7-20 Switch on the projector. In case you replace one HDD (e.g. degraded mode) the ICMP automatically starts with the RAID recovery process. The red LED of the HDD which has to be rebuilt is blinking. This process takes about 200 GB per hour.

  • Page 123: Communicator Touch Panel

    Communicator Touch Panel Overview • Introduction • Installation of the touch panel interface R5905754 /13 DPxK-32B...

  • Page 124: Introduction

    Communicator Touch Panel 8.1 Introduction Communicator Touch Panel for digital cinema projectors The Communicator Touch Panel is designed for multi-user command and control, the Communicator enables users to learn quickly and operate efficiently - using an elegant and flexible touch panel interface. The interface's commonality means that operators can intuitively use any model in the product line, without restriction, and its user-friendly nature translates directly into a short and enjoyable learning curve.

  • Page 125: Installation Of The Touch Panel Interface

    Communicator Touch Panel E Power input 12 VDC, 1.5A RS232 port (sub-D) G Ethernet port (RJ45) CAUTION: For more information about the use of the Communicator Touch Panel, consult its user guide. 8.2 Installation of the touch panel interface Required tools •...
  • Page 126 Communicator Touch Panel Image 8-4: Mount touch panel Image 8-5: Touch panel mounted Place the touch panel interface on the mounting plate of the swivel arm and fasten the two wing nuts (W) as illustrated. Image 8-6: Mount touch panel Connect the circular plug of the multi cable with the circular socket at the rear side of the DPxK-32B.
  • Page 127 Communicator Touch Panel Connect the DC plug, the RJ45 Ethernet plug and the D-SUB plug into their respective sockets on the touch panel interface. Image 8-8: Connections R5905754 /13 DPxK-32B...
  • Page 128 Communicator Touch Panel R5905754 /13 DPxK-32B...

  • Page 129: Starting Up

    Starting up About this chapter This chapter contains the switch ON and switch OFF procedures of the DPxK-32B. These procedures enumerate all the important points which have to be checked prior to switching ON the projector. This is to ensure a safe start up of the projector. Overview •...

  • Page 130: Switching On The Dpxk-32B Series Projector

    Starting up 9.1 Switching ON the DPxK-32B series projector How to switch on Make sure that the DPxK-32B projector is installed upon a stable pedestal. See chapter “Positioning the DPxK-32B at port window”, page 24. Make sure that the exhaust system is properly installed. See chapter “Installation of the exhaust system”, page Make sure that the right lens is installed for your application.

  • Page 131: Removal And Installation Of The Projector Covers

    Removal and installation of the projector covers WARNING: All procedures in this chapter may only be performed by “qualified service technicians” . WARNING: Disconnect the power to the circuit mains terminals and unplug the power cord at UPS INLET, unless otherwise specified in the procedure. Overview •...
  • Page 132 Removal and installation of the projector covers Location of the covers Image 10-1: Location of the covers Lamp cover Input cover Front cover Side cover Rear cover All cover can be individually removed. R5905754 /13 DPxK-32B...

  • Page 133: Removal Of The Lamp Cover

    Removal and installation of the projector covers 10.1 Removal of the lamp cover Required tools Flat screwdriver How to remove Release both captive screws on top of the lamp cover. Image 10-2: Lamp cover, fasting screws Push both lock to each other to release the locks and pull at the same time the bottom side of the cover away form the projector.

  • Page 134: Removal Of The Rear Cover

    Removal and installation of the projector covers Image 10-4: Lamp cover, removal 10.2 Removal of the rear cover Required tools Flat screwdriver How to remove Release both captive screws almost at the bottom of the rear cover using a flat screw driver (1). R5905754 /13 DPxK-32B...

  • Page 135: Removal Of The Input Cover

    Removal and installation of the projector covers Image 10-5: Rear housing removal Remove the rear cover of the projector doing the following: gently pull out the top covers of the rear cover (2). then move the rear cover away from the projector. 10.3 Removal of the input cover Required tools Flat screwdriver...
  • Page 136 Removal and installation of the projector covers Image 10-6: Input cover, fixation Remove the input cover as follow: Pull the bottom side of the cover to you until the cover is unlocked. Slide the full cover away from the projector. R5905754 /13 DPxK-32B...

  • Page 137: Removal Of The

    Removal and installation of the projector covers Image 10-7: Input cover removal 10.4 Removal of the front cover Required tools Flat screwdriver How to remove Check if the lens is removed. Remove the rubber dust ring from the lens holder. R5905754 /13 DPxK-32B...
  • Page 138 Removal and installation of the projector covers Image 10-8: Release cover removal Release the captive screw at the middle bottom of the front cover. Remove the front cover as follow: standing in front of the projector, pull the top side of the cover to you until it is unlocked. slide the cover away from the projector.

  • Page 139: Removal Of The Side Cover

    Removal and installation of the projector covers 10.5 Removal of the side cover Required tools Flat screwdriver How to remove Release both captive screws on top of the side cover. Image 10-10: Captive screws Push both lock to each other to release the locks and pull at the same time the bottom side of the cover away form the projector.

  • Page 140: Installation Of The

    Removal and installation of the projector covers Image 10-11: Unlock side cover Take off the cover. Image 10-12: Side cover 10.6 Installation of the front cover Required tools Flat screwdriver How to install Ensure that no lens is mounted. Execute the next steps to install the front cover: Hook the bottom side of the cover to the projector.
  • Page 141 Removal and installation of the projector covers Image 10-13: Mount front cover Secure the front cover by locking the captive screw in the middle at the bottom of the front cover. Image 10-14: Secure front cover Reinstall the rubber dust ring around the lens holder. R5905754 /13 DPxK-32B...

  • Page 142: Installation Of The Input Cover

    Removal and installation of the projector covers 10.7 Installation of the input cover Required tools Flat screwdriver How to install Place the top side of the cover on its place. Image 10-15: Mount input cover Gently move the bottom side of the cover towards the projector and push the bottom side until the locking studs click in the receivers.

  • Page 143: Installation Of The Lamp Cover

    Removal and installation of the projector covers 10.8 Installation of the lamp cover Required tools Flat screwdriver How to install Place the top side of the cover on its place. Image 10-17: Mount lamp cover Close the cover as follow: Gently move the bottom side of the cover towards the projector Push both lock to each other and push at the same time the cover against the projector frame.

  • Page 144: Installation Of The Rear Cover

    Removal and installation of the projector covers Image 10-18: Secure lamp cover 10.9 Installation of the rear cover Required tools Flat screwdriver How to install Install the rear cover of the projector doing the following: Bring the rear cover towards its final position. Gently push the locking studs into the receivers (1).

  • Page 145: Installation Of The Side Cover

    Removal and installation of the projector covers Image 10-19: Mount rear cover Secure the cover by fastening the captive screw at the bottom of the rear cover (2). 10.10 Installation of the side cover How to install Place the top of the side cover on its place. Close the cover as follow: Gently move the bottom side of the cover towards the projector Push both lock to each other and push at the same time the cover against the projector frame.
  • Page 146 Removal and installation of the projector covers Image 10-20 Secure the cover by fasting both captive screws. Image 10-21: Lock side cover R5905754 /13 DPxK-32B...

  • Page 147: Maintenance

    Maintenance About this chapter This chapter describes how to remove the dust filters Overview • Remove and clean the front dust filter • Remove and clean both bottom dust filters • Cleaning the lens • Cleaning the exterior of the projector •...

  • Page 148: Remove And Clean The Front Dust Filter

    Maintenance 11.1 Remove and clean the front dust filter WARNING: Take care: the metal filters of the projector are fragile. Clean with care! How to remove Remove the input cover. Slide out the filter frame. Image 11-1: Front dust filter Clean the dust filter Remove most contamination gently with a vacuum cleaner in an other room or outside.

  • Page 149: Remove And Clean Both Bottom Dust Filters

    Maintenance Image 11-2: Up indication Push the filter completely in. Reinstall the input cover. 11.2 Remove and clean both bottom dust filters How to remove Remove the side cover. Slide out the bottom front dust filter. Image 11-3: Bottom front dust filter Slide out the bottom back dust filter.

  • Page 150: Cleaning The Lens

    Maintenance Clean the dust filter Remove most contamination with a vacuum cleaner in an other room or outside. Blow remaining dust away with compressed air in an other room or outside. These dust filters are fragile. Clean them gently! Mount the dust filters Insert the dust filter with the handle upwards.

  • Page 151: Check Cooling Liquid Level

    Maintenance 11.5 Check cooling liquid level What should be done ? The projector is liquid cooled. It is important that the liquid level is checked at regular intervals. We advise to check every 3 months. The liquid level must be between Min. and Max. Significant drop in liquid level indicates a major leakage and requires immediate attention.

  • Page 152: Authorization To Clear Security Warning On The Projector

    Maintenance Image 11-6: Cooling liquid refill Fill the reservoir with cooling liquid until the level is equal with the Max indication on the reservoir. Close the reservoir again. Turn the filler cap clockwise to close the reservoir. Reinstall the side cover. CAUTION: Never fill above Max level mark ! 11.7 Authorization to clear security warning on the projector...
  • Page 153 Maintenance • In case of an incorrect code entry, the color of the backlight of the numeric keys changes to red for 1 second and then back to blue. • In case of a correct code entry, the color of the backlight of the numeric keys 1 to 10 changes to green for 1 second and then back to blue.
  • Page 154 Maintenance R5905754 /13 DPxK-32B...

  • Page 155: Convergence

    Convergence About this chapter This chapter describes how to prepare the projector for convergence adjustment and how to adjust the convergence. Overview • Open the sealed compartment • Close the sealed compartment • Convergence controls • Red on blue convergence •...

  • Page 156: Open The Sealed Compartment

    Convergence 12.1 Open the sealed compartment This procedure assumes that the side cover of the projector is already removed. CAUTION: This procedure may only be done by a qualified and trained service technician. Required tools 3 mm Allen wrench How to open the sealed compartment Remove both hexagon head cap screws (1).

  • Page 157: Close The Sealed Compartment

    Convergence Image 12-2: Sealed cover, remove A security warning will be displayed on the projector. Execute the procedure “Authorization to clear security warning on the projector”. 12.2 Close the sealed compartment Required tools 3 mm Allen wrench How to close the sealed compartment Hook the cover plate on the studs.

  • Page 158: Convergence Controls

    Convergence Image 12-4: Sealed cover, fixation 12.3 Convergence controls Definitions-Abbreviations • X: Horizontal direction on the screen, with origin in the centre of the screen and + to the right • Y: Vertical direction on the screen, with origin in the centre of the screen and + to the top •...

  • Page 159: Red On Blue Convergence

    Convergence Convergence Test pattern For the manual correction of the DMD convergence, a typical convergence test pattern is generated. For a 4K projector, use the 4K test pattern. Image 12-6: Convergence test pattern Work Instructions: • GREEN and RED DMD’s are to be adjusted with reference to the BLUE dmd. •...

  • Page 160: Green On Blue Convergence

    Convergence Converging the RED pattern onto the BLUE pattern Start with aligning the RED DMD in the vertical directions [1] and [2] and then proceed with the horizontal direction [3] To translate RED vertically in the Y + direction, turn both [1] and [2] clockwise. Turn screws in equal increments.
  • Page 161 Convergence For clockwise rotations of GREEN, turning [5] anti-clockwise would generally suffice. If much rotation is required, [4] may also be turned in the opposite direction. Slight corrections to Y may be required after rotation. For anti-clockwise rotations of GREEN, turning [5] clockwise would generally suffice. If much rotation is required, [4] may also be turned in the opposite direction.
  • Page 162 Convergence R5905754 /13 DPxK-32B...

  • Page 163: A Specifications

    Specifications About this chapter This chapter gives an overview of the specification of the projector as well as the dimensions, the center of gravity and the dimensions of the optional pedestal. Overview • Specifications of the DP2K-32B • Specifications of the DP4K-32B •...

  • Page 164: Specifications Of The Dp2K-32B

    Specifications A.1 Specifications of the DP2K-32B Overview Digital MicroMirror Device™ 3 x 1.2” DC2K dark metal devices Native resolution 2,048 x 1,080 pixels Housing Hermetically sealed DMDs and optical assembly Lamp 3kW - 7kW Light output 33,000 lumens Screen size Up to 32m / 105ft wide Contrast ratio 2,000:1...

  • Page 165: Specifications Of The Dp4K-32B

    Specifications Ambient temperature 35°C / 95°F Max. Options ACS-2048 3D add-ons Touch screen monitor Pedestal Auro 11.1 audio decoder Live 3D: RealD Live or Sensio RealD Ghostbusting A.2 Specifications of the DP4K-32B Overview Digital MicroMirror Device™ 3 x 1.38” DC4K dark metal devices Native resolution 4,096 x 2,160 pixels Housing...

  • Page 166: Specifications Of The Icmp

    Closed captioning devices: Support for SMPTE 430-10 * 4K 24fps is standard. For 4K 60 fps / 4K 3D on ICMP upgrade modules a license is required. Newly-built 4K Barco Alchemy projectors have the license standard included. Barco Web Commander...

  • Page 167: Dimensions Of The Dpxk-32B

    ICMP License for HDMI2.0 HDR Licence for Dual Projector TMS support Barco Alchemy is supported by the following Theater Management System (TMS) brands: AAM Screenwriter, Ymagis Melody, CFG-Barco, Unique RosettaBridge, ADDE, CinéDigital Manager, GDC, Proyecson, Real Image, Sony, Hollywoodsoftware/Comscore TCC, Kinoton A.4 Dimensions of the DPxK-32B...
  • Page 168 Specifications 207.5 37.5 41.5 381.5 min. 31 Image A-1: Dimensions in mm R5905754 /13 DPxK-32B...

  • Page 169: Dimensions Of The Universal Pedestal

    Specifications A.5 Dimensions of the universal pedestal Dimensions Image A-2: Dimensions given in millimeters. A.6 Technical Regulations Certificates Image A-3: Image A-5: CE Image A-6: ETL Image A-7: CCC Image A-8: Image A-4: Rohs EAC mark mark mark mark CEBEC mark R5905754 /13 DPxK-32B...
  • Page 170 Specifications R5905754 /13 DPxK-32B...

  • Page 171: B Pin Configurations

    Pin configurations Overview • About General Purpose Inputs & Outputs (GPIO) • Pin configurations of the communication ports • Pin configurations of the ICMP communication ports • Pin configurations of the inputs R5905754 /13 DPxK-32B...

  • Page 172: About General Purpose Inputs & Outputs (Gpio)

    GPIO ports. General Purpose inputs The Barco Cinema Controller and the Barco ICMP have each eight (8) opto-isolated general purpose inputs available. These inputs are used to trigger the execution of macro files. For more explanation about the association of a macro to a GPI, consult the user guide of the Communicator.

  • Page 173: Pin Configurations Of The Communication Ports

    Pin configurations • Generate Rising Edge – generate a rising edge on the external GPO port if the present state of the output is low. If the present state of the external GPO is high, no edge will be generated. •...
  • Page 174 Pin configurations General Purpose IN/OUT General Purpose In/Out 3D Input Reference P 3D Input Reference N 3D Display Reference P 3D Display Reference N GPIN 3 P (reserved) GPIN 3 N (reserved) GPIN 4 P (reserved) GPIN 4 N (reserved) GPIN 5 P GPIN 5 N GPIN 6 P...

  • Page 175: Pin Configurations Of The Icmp Communication Ports

    Pin configurations Name +24V 3D connector Name Name +12V +12V Grnd 3D Input Reference - Grnd 3D Display Reference + RS232 RX 3D Display Reference - RS232 TX CONN_3D MODE - CONN_3D_MODE + CONN_SYNC - CONN_SYNC + 3D Input Reference + B.3 Pin configurations of the ICMP communication ports RJ-45 pin configuration...
  • Page 176 Pin configurations AUDIO-AES 9-16 AES pair RJ-45 pin Audio channel 15, 16 General Purpose Output: GPO 1-4 RJ-45 pin Definition EXT_GPOUT_1_P EXT_GPOUT_1_N EXT_GPOUT_2_P EXT_GPOUT_2_N EXT_GPOUT_3_P EXT_GPOUT_3_N EXT_GPOUT_4_P EXT_GPOUT_4_N GPO 5-8 RJ-45 pin Definition EXT_GPOUT_5_P EXT_GPOUT_5_N EXT_GPOUT_6_P EXT_GPOUT_6_N EXT_GPOUT_7_P EXT_GPOUT_7_N EXT_GPOUT_8_P EXT_GPOUT_8_N General Purpose Input: GPI 1-4...
  • Page 177 Pin configurations GPI 1-4 RJ-45 pin Definition EXT_GPIN_4_P EXT_GPIN_4_N GPI 5-8 RJ-45 pin Definition EXT_GPIN_5_P EXT_GPIN_5_N EXT_GPIN_6_P EXT_GPIN_6_N EXT_GPIN_7_P EXT_GPIN_7_N EXT_GPIN_8_P EXT_GPIN_8_N About 568A and 568B on an Ethernet connector RJ-45 TIA/EIA-568A and -568B are two standards for connecting Category 3 and Category 5 wire to connectors. Both are appropriate for high speed data, though 568B is somewhat more common for installed wiring and 568A is more common in jumpers.

  • Page 178: Pin Configurations Of The Inputs

    Pin configurations B.4 Pin configurations of the inputs DVI-D DVI IN A & B RX2- DDC Data RX0 Shield RX2+ RX2 Shield RX1- RX1+ Hot Plug Detect TMDS Clock Shield RX1 Shield RX0- TMDS RXC+ DDC Clock RX0+ TMDS RXC- R5905754 /13 DPxK-32B...

  • Page 179: C Environmental Information

    Environmental information Overview • Disposal information • China Rohs compliance • Taiwan RoHS compliance • Turkey RoHS compliance • Hazards • Contact information • Production address • Download Product Manual R5905754 /13 DPxK-32B...

  • Page 180: Disposal Information

    Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
