12.4 Red on blue convergence

Necessary tools
No tools.
Converging the RED pattern onto the BLUE pattern
Start with aligning the RED DMD in the vertical directions [1] and [2] and then proceed with the horizontal direction [3]
1. To translate RED vertically in the Y + direction, turn both [1] and [2] clockwise. Turn screws in equal increments.
2. To translate RED vertically in the Y - direction, turn both [1] and [2] anti-clockwise. Turn screws in equal increments.
3. To translate RED horizontally in the X + direction, turn [3] clockwise.
4. To translate RED horizontally in the X - direction, turn [3] anti-clockwise.
5. For clockwise rotations of RED, turning [1] anti-clockwise would generally suffice. If much rotation is required, [2] may also be
turned in the opposite direction. Slight corrections to Y may be required after rotation.
6. For anti-clockwise rotations of RED, turning [1] clockwise would generally suffice. If much rotation is required, [2] may also be
turned in the opposite direction. Slight corrections to Y may be required after rotation.
Red

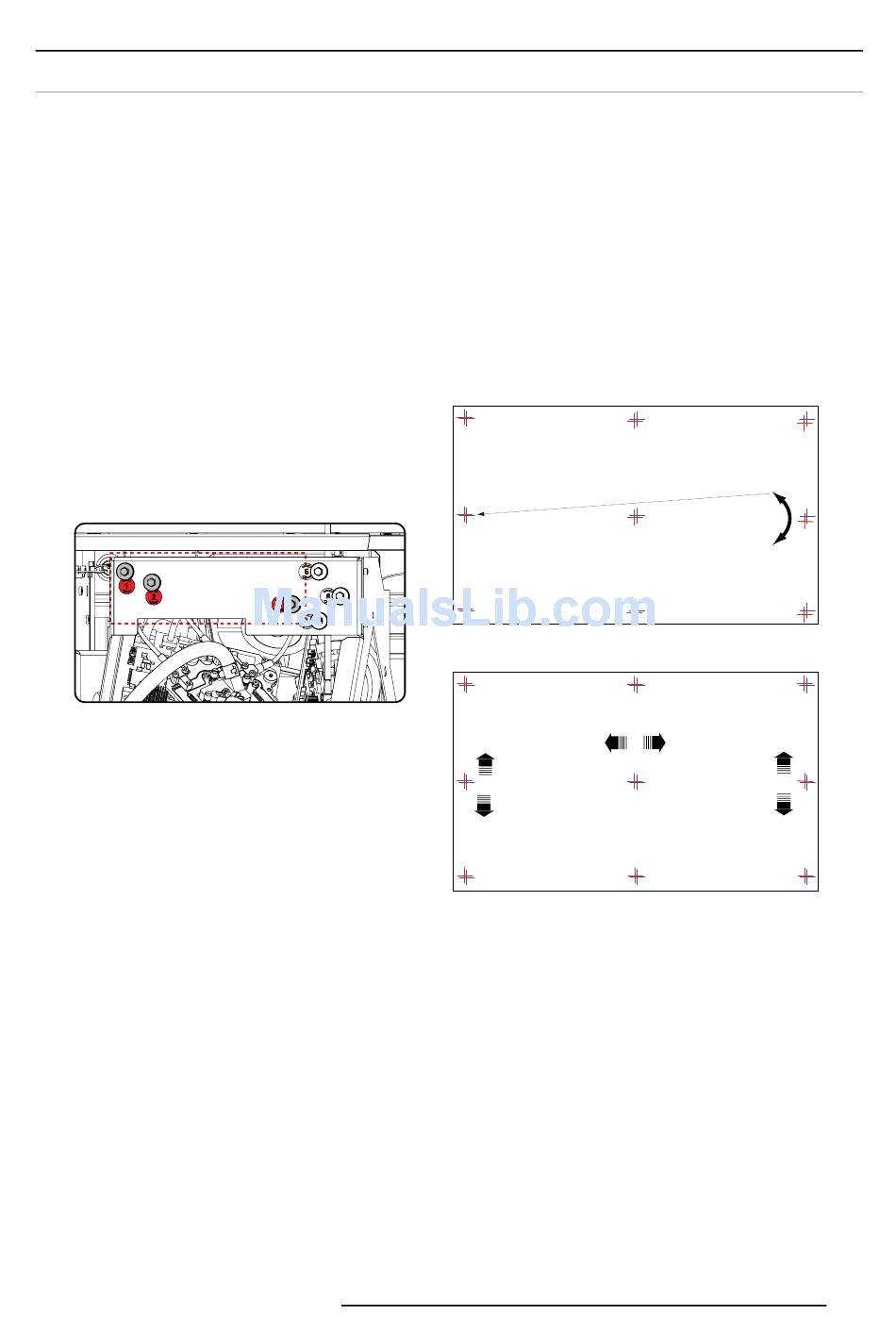

Image 12-7
Red on blue convergence
R5905963 PROMETHEUS SERIES 09/03/2015
3
2
12. Convergence
1
1 1
1
