7. ICMP
7.4

ICMP source input ports

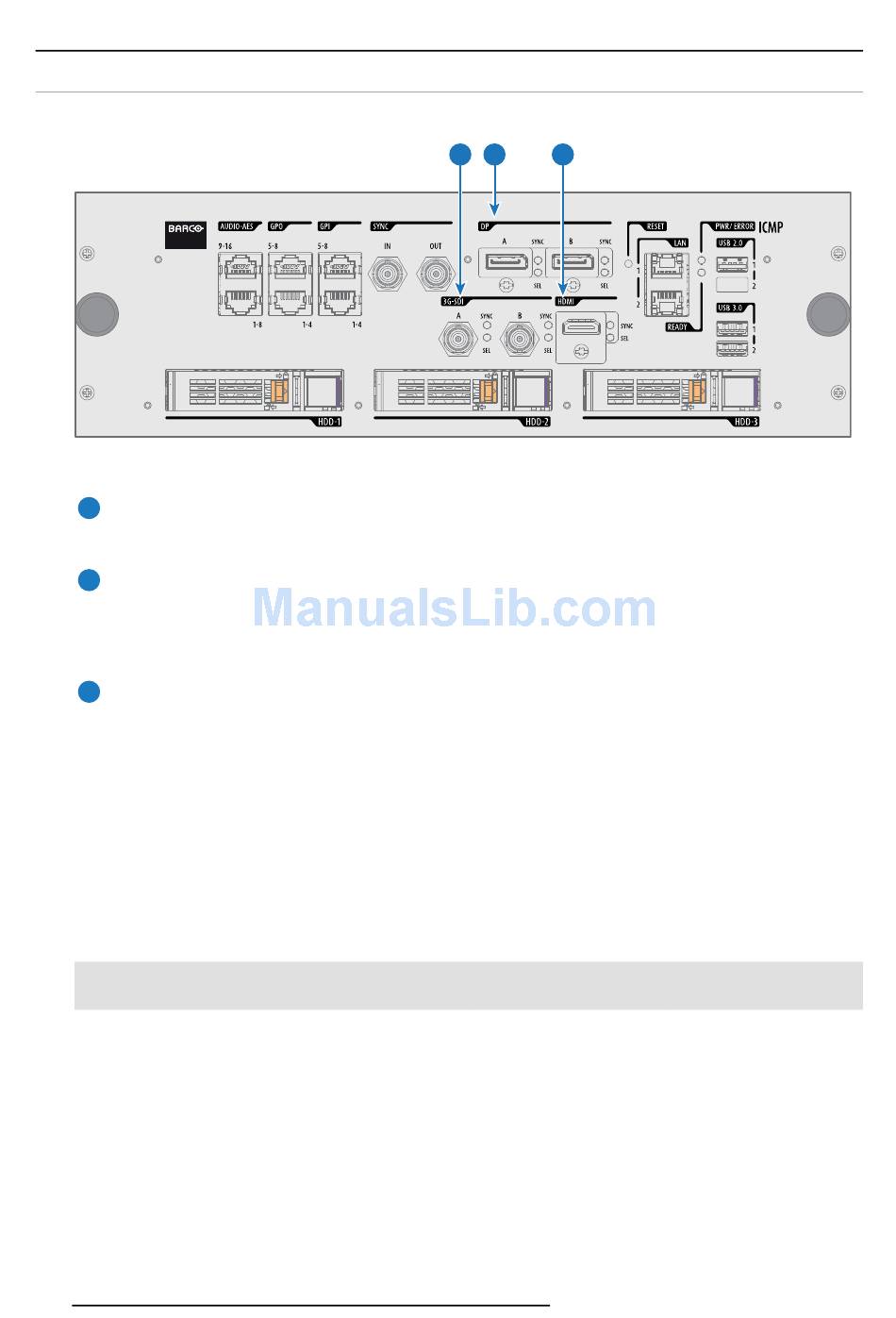

Location of the source input ports
Image 7-6
Functionality
DisplayPort A (B)
8
DisplayPort connector to connect a video source.
3G-SDI A (B)
9
SDI connector to connect a video source.
HDMI
10
HDMI connector to connect a video source.
DisplayPort specifications
Supported Modes:
• DP1.1a, 4-lanes RBR/HBR
• Audio : none
• Content Protection : HDCP1.4
• Colordepth : 8 bit/color and 10 bit/color.
• 3D-stereo mode : frame sequential (embedded stereosync on DP required from the source)
DisplayPort A and DisplayPort B accept the following video-timings:
Standard timings
@ EDID
640 x 480 @60Hz
800 x 600 @60Hz
1600 x 1200 @60Hz
1920 x 1200 @60Hz
2048 x 1536 @60Hz
1280 x 800 @60Hz
1280 x 720 @60Hz
1680 x 1050 @60Hz
110
9 8
Color depth
(bpc)
8, 10
8, 10
8, 10
8, 10
8, 10
8, 10
8, 10
8, 10
10
Display Mode
(A, B)
Single
Single
Single
Single
Single
Single
Single
Single
