8. Communicator Touch Panel
W

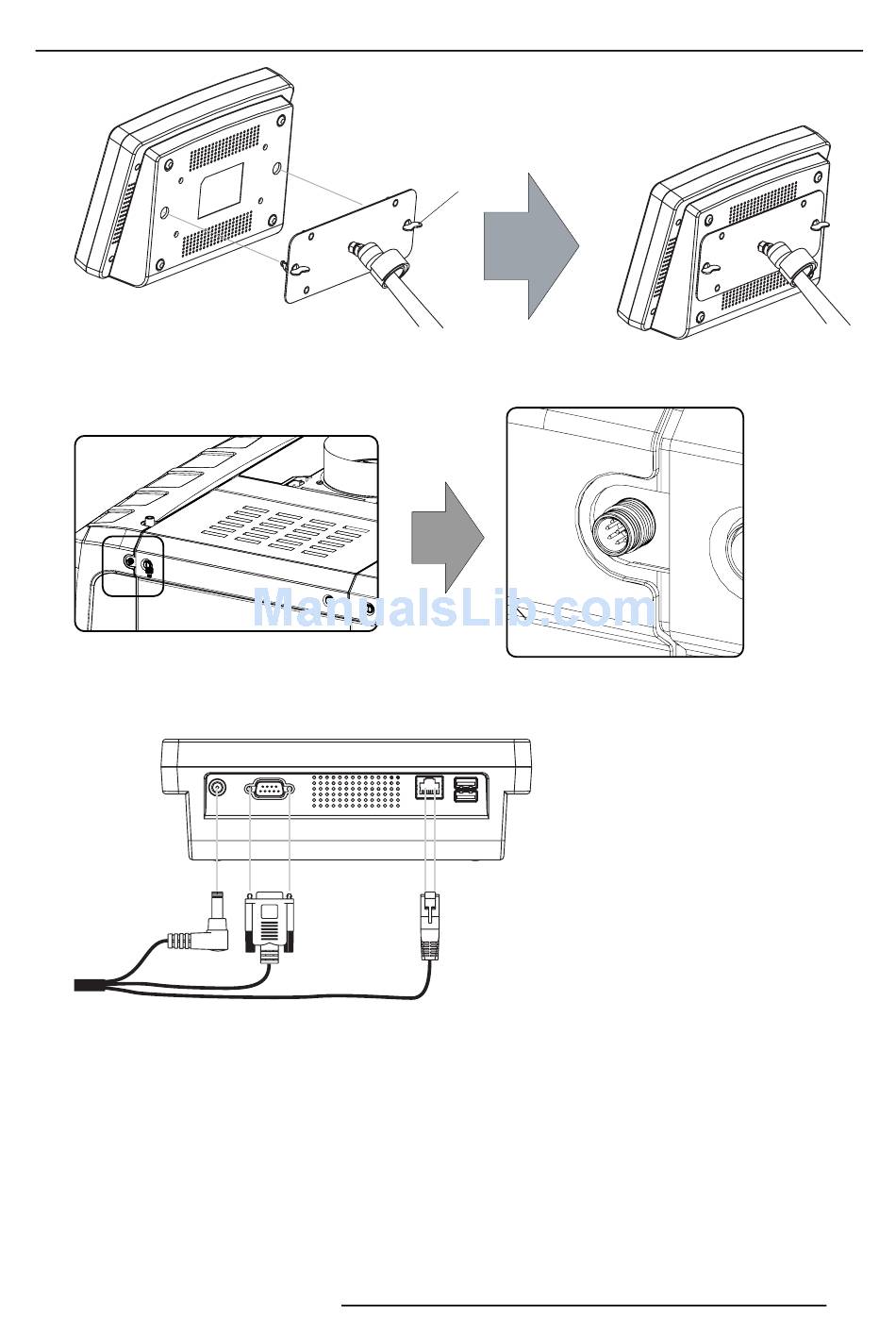

Image 8-6
Mount touch panel
4. Connect the circular plug of the multi cable with the circular socket at the rear side of the Prometheus.
Image 8-7
5. Attach the multi cable to the swivel arm using the two Velcro strips.
6. Connect the DC plug, the RJ45 Ethernet plug and the D-SUB plug into their respective sockets on the touch panel interface.
Image 8-8
Connections
