Access to the power connection

Necessary tools
Flat screw driver 6 mm
How to access
1. Remove the back cover.
2. Loosen both captive screws (1).

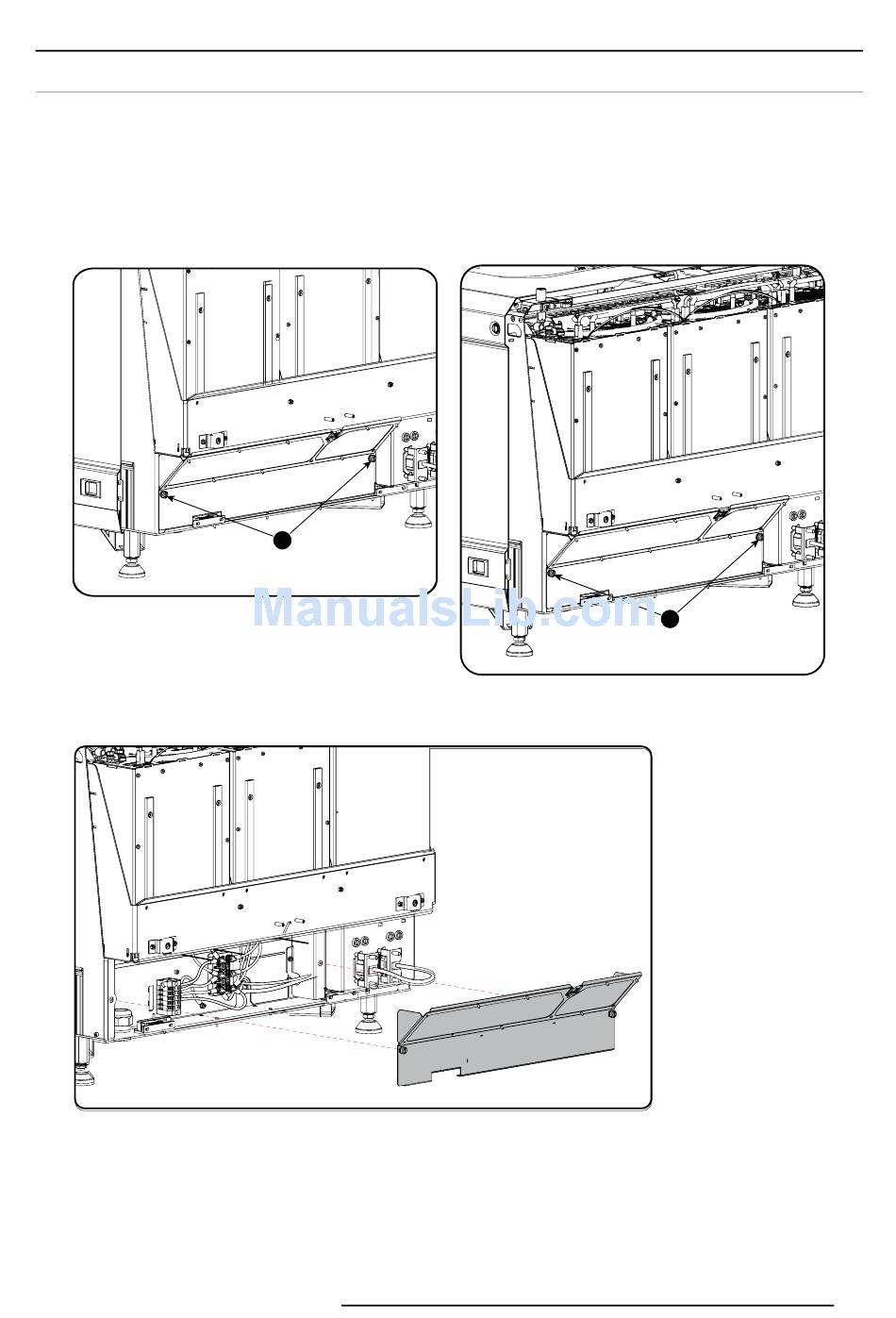

Image 3-7
Power connection cover, captive screws
3. Slide off the power connection cover.
Image 3-9
Terminal strip accessible
The terminal strip and connection plate is accessible.
