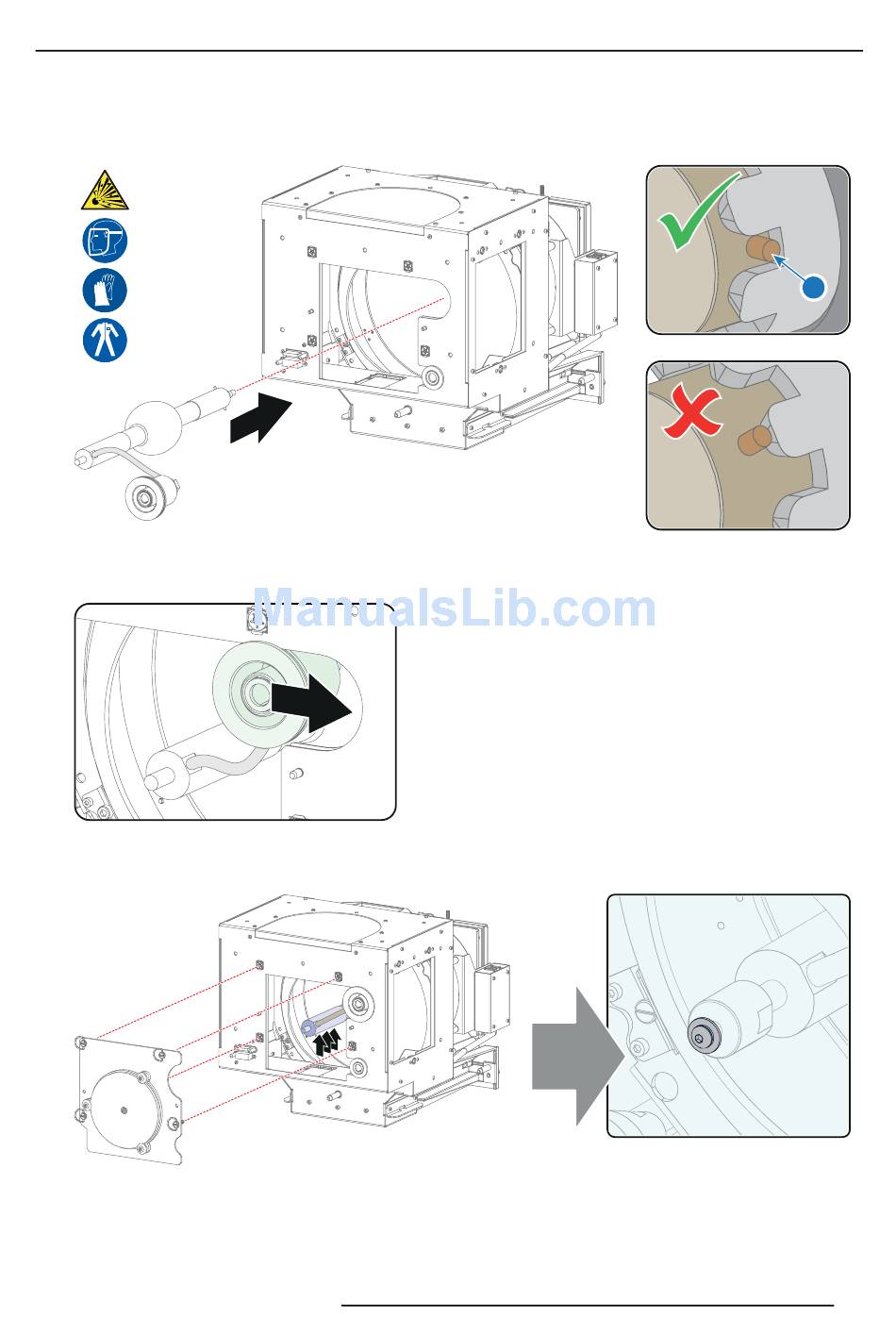

4. Remove the protective packing from the xenon lamp and gently insert the xenon lamp into the Lamp House as illustrated. Lamp
cathode first, Make sure that the wire of the lamp anode is upwards oriented. While inserting the lamp, rotate it slightly, engaging
the pins (reference 11 image 4-30) of the cathode adapter in the foreseen slots. This is to ensure the lamp cathode is completely
inserted. Keep supporting the anode of the lamp with one hand once the xenon lamp is in position.
Caution: Ensure that you wear protective clothing, a full face shield and protective gloves.
Image 4-30
5. Slide the anode connector in its position on the Lamp House as illustrated.
Caution: Avoid any tension on the anode wire, ensuring there is no mechanical stress on the lamp.
Image 4-31
6. Install the UV blocker assembly as illustrated. Use the opening at the side of the Lamp House to guide the anode pin of the
xenon lamp into the anode supporting mechanism of the UV blocker.
Image 4-32
7. Secure the UV blocker by fastening the four quarter turn screws (reference 5 image 4-33) as illustrated.
Note: Ensure that the quarter turn screws turning wires are flush with the cover or interference will occur while inserting the
Lamp House into the projector.
