12. Convergence

12.2 Close the sealed compartment

Necessary tools
3 mm Allen wrench
How to close the sealed compartment
1. Hook the cover plate on the studs.

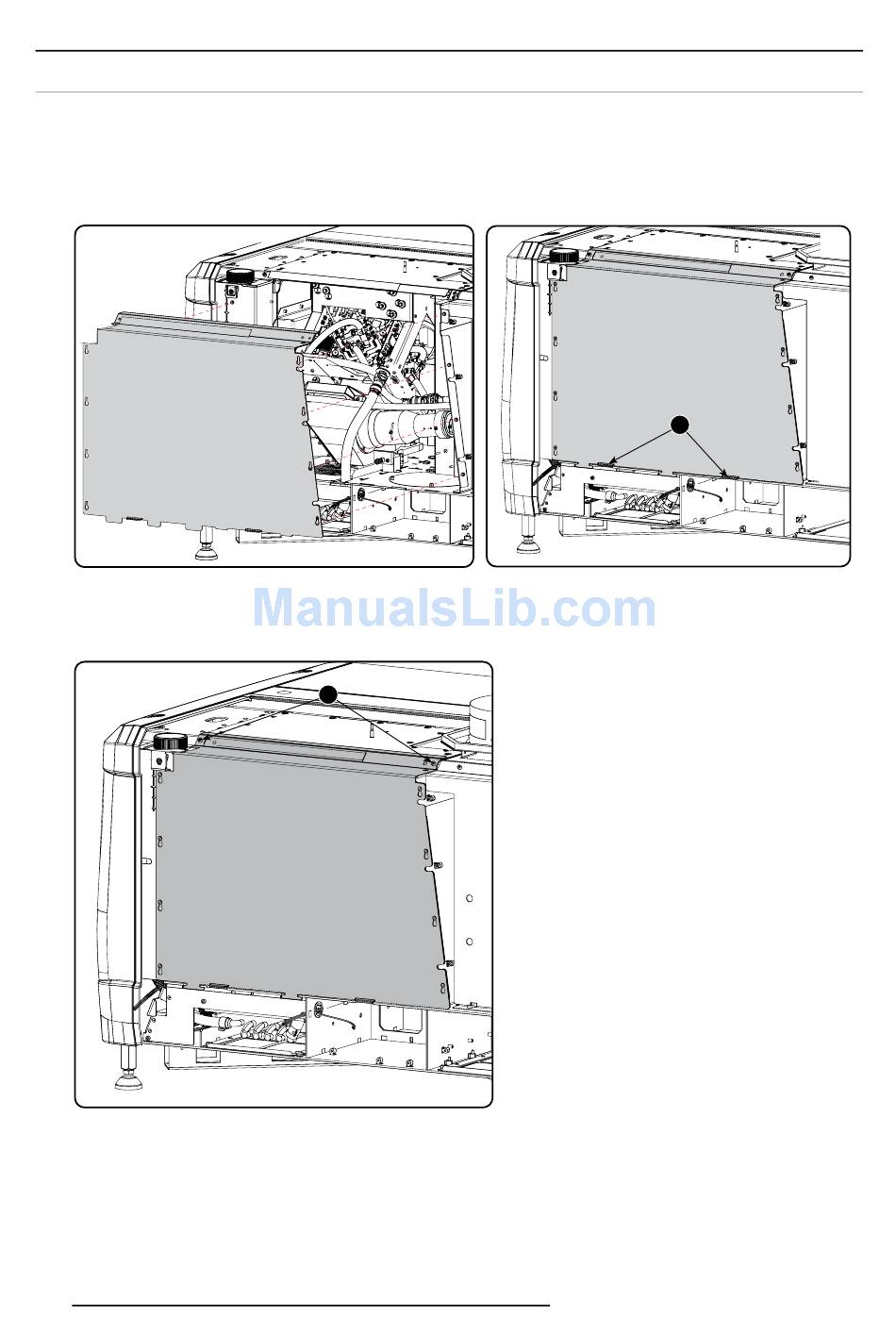

Image 12-3
Sealed cover, mount
2. Slide the cover downwards by pushing on both lips until it is in its correct position.
3. Drive in both fixation screws (1).
Image 12-4
Sealed cover, fixation
