ICMP HDD status LEDs

ICMP HDD status LEDs
Image 7-8

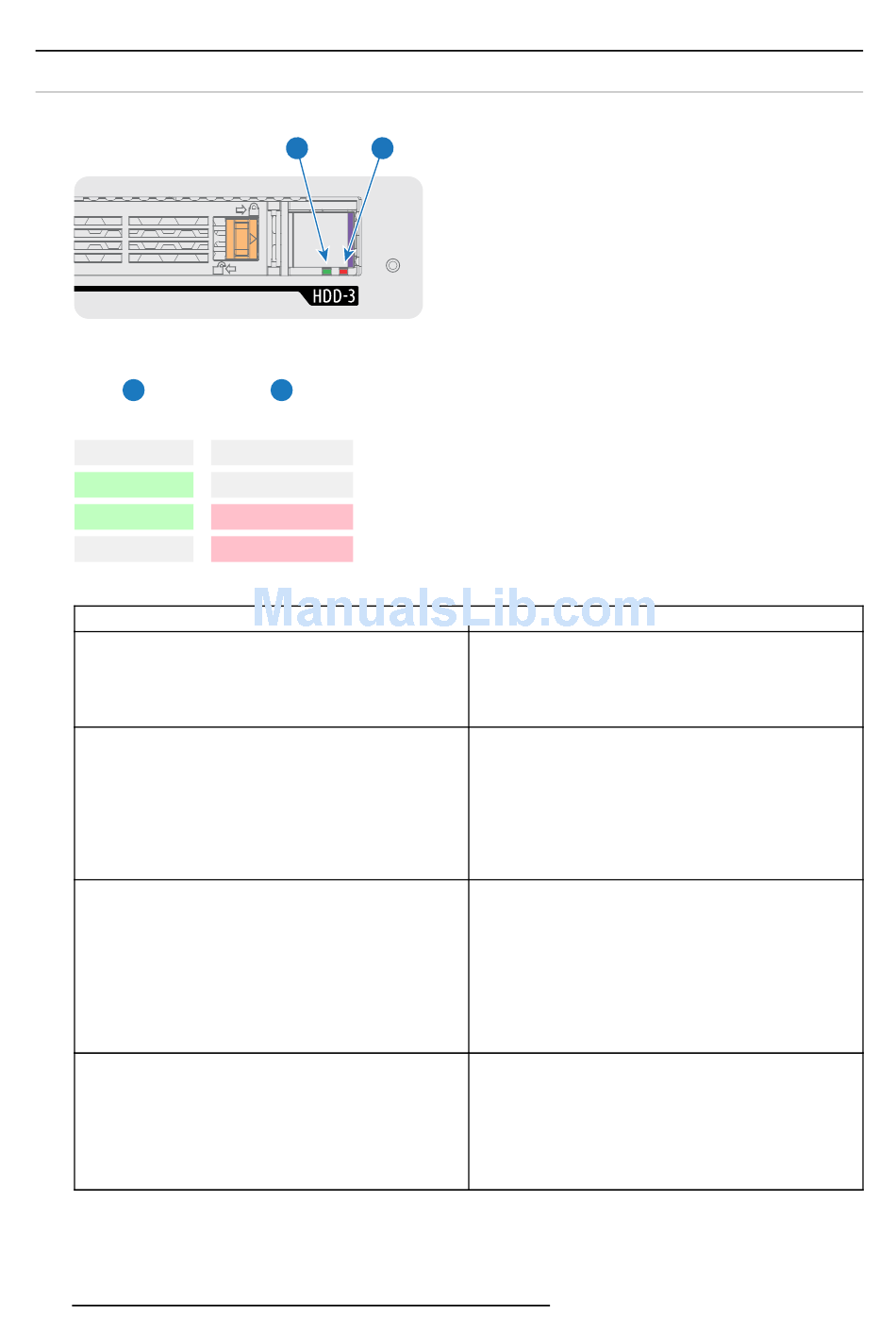

Status overview PWR/ERROR and READY LEDs:
4
HDD I/O
Off
Blinking Green
Blinking Green
Off
Troubleshooting
Situation
One disk failed (red LED) + RAID degraded.
The ongoing event is not interrupted.
Note: The disk status (RAID degraded) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
One disk failed (red LED) + Error 10580 "local storage not
available".
Note: The disk status (Error code) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
Multiple disks failed (multiple red LEDs) + RAID broken.
Note: The disk status (RAID broken) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
All HDD LEDs remain off + Error 10580 "local storage not
available".
Note: The disk status (Error code) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
114
4 5
5
RAID ICMP HDD Status
Off HDD idle / Disk in RAID OK.
Off HDD I/O activity / Disk in RAID OK.
Blinking Red HDD I/O activity / RAID rebuilding.
Red HDD idle / Disk error. See troubleshooting table below for curative actions.
Solution
Hot swap the defect HDD with an original HDD spare part. No
need to switch off the power. Ensure to insert the HDD firmly.
See procedure "Installing a HDD into the ICMP", page 118.
Result: As soon the new HDD is detected by the ICMP the
rebuild of the RAID is started (Blinking red LED).
1. Switch off the power.
2. Replace the defect HDD with an original HDD spare part.
See procedure "Removing a HDD form the ICMP", page
117, and "Installing a HDD into the ICMP", page 118.
Ensure to insert the HDD firmly.
3. Switch on the power.
Result: As soon the new HDD is detected by the ICMP the
rebuild of the RAID is started (Blinking red LED).
1. Switch off the power.
2. Replace all defect HDDs with original HDD spare parts.
See procedure "Removing a HDD form the ICMP", page
117, and "Installing a HDD into the ICMP", page 118.
Ensure to insert the HDDs firmly.
3. Switch on the power.
4. Start "RAID Initialize". See user guide of the
Communicator.
Result: a new empty RAID is created.
1. Switch off the power.
2. Reseat all HDDs. See procedure "Removing a HDD
form the ICMP", page 117, and "Installing a HDD into the
ICMP", page 118. Ensure to insert the HDDs firmly.
3. If problem remains try "RAID Initialize". See user guide of
the Communicator. Note that all content will be lost!
4. If problem remains contact Service for further instructions.
R5905963 PROMETHEUS SERIES 09/03/2015
