Δ

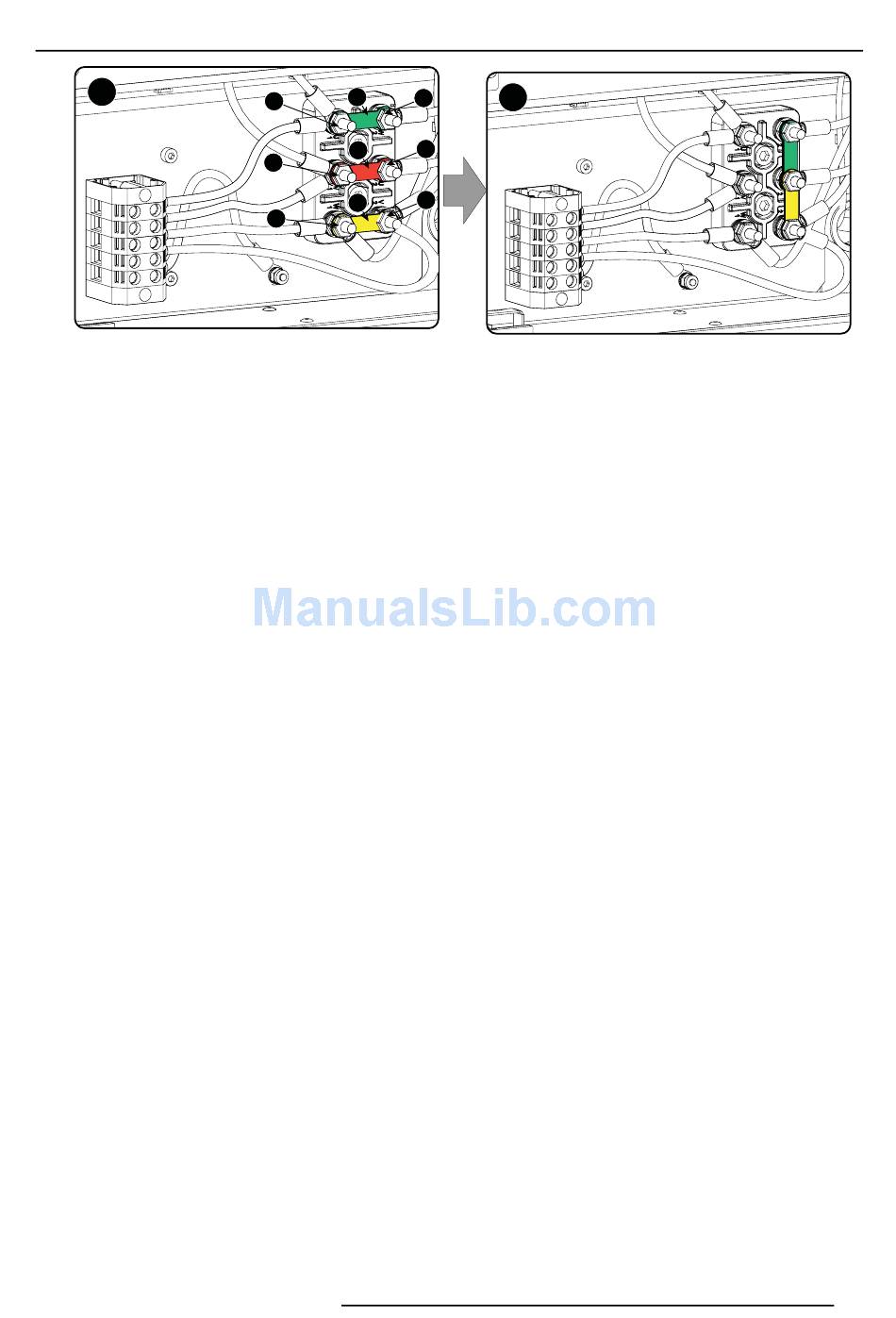

Image 3-12
Δ to Υ connection
2. Take off the mounted links (A, B and C).
3. Connect the right pins together. Place 2 links between the upper pin and the middle pin (A, B)and 1 link between the middle pin
and the lower pin (C).
R5905963 PROMETHEUS SERIES 09/03/2015
A
4
1
5
B
2
6
C
3
Y
