10. Removal and installation of the projector covers

10.2 Removal of the rear cover

Necessary tools
Flat screwdriver
How to remove
1. Release both captive screws almost at the bottom of the rear cover using a flat screw driver (1).
2
2
1
1

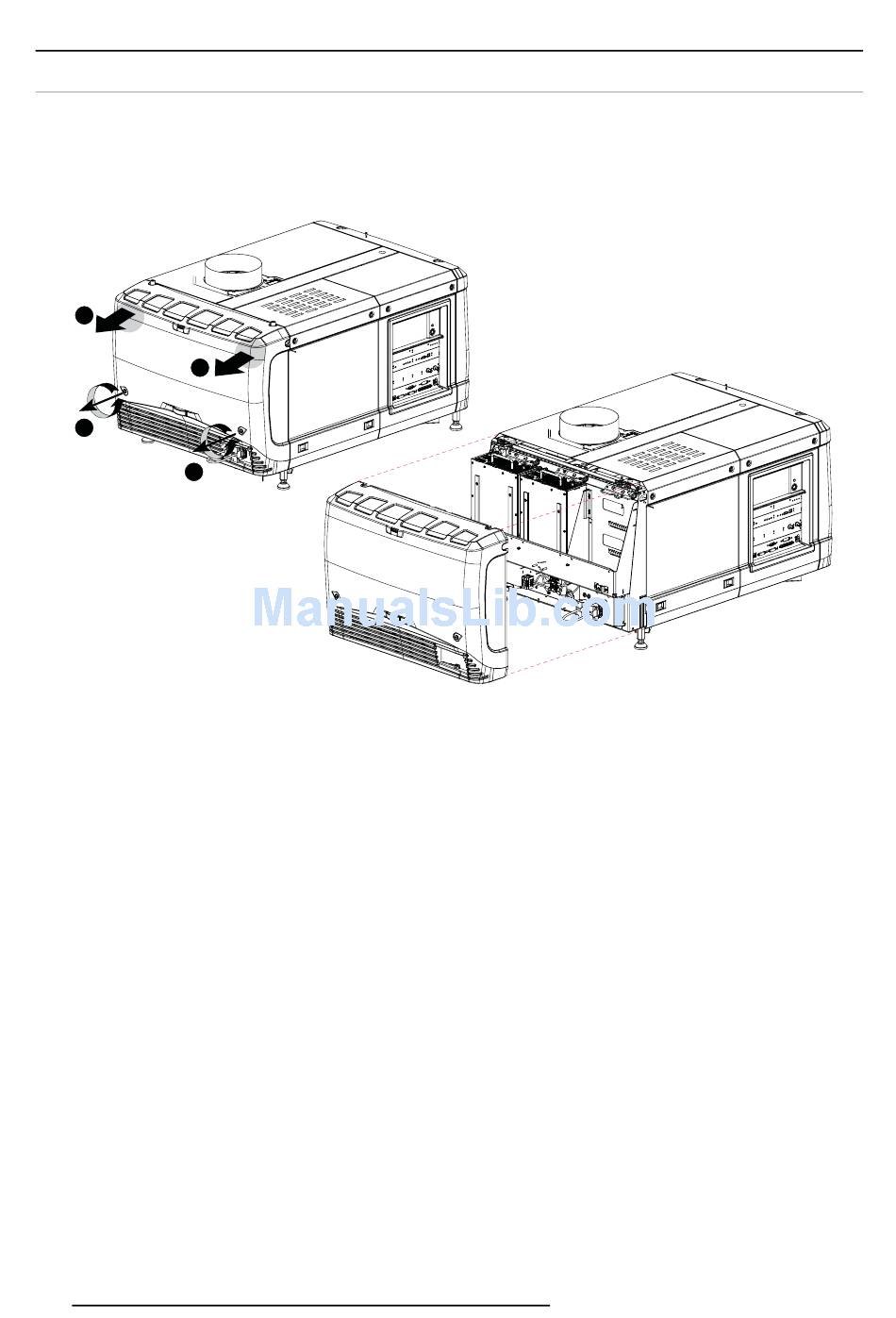

Image 10-5
Rear housing removal
2. Remove the rear cover of the projector doing the following:
a) gently pull out the top covers of the rear cover (2).
b) then move the rear cover away from the projector.
