5.3

Lens installation

How to install a lens?

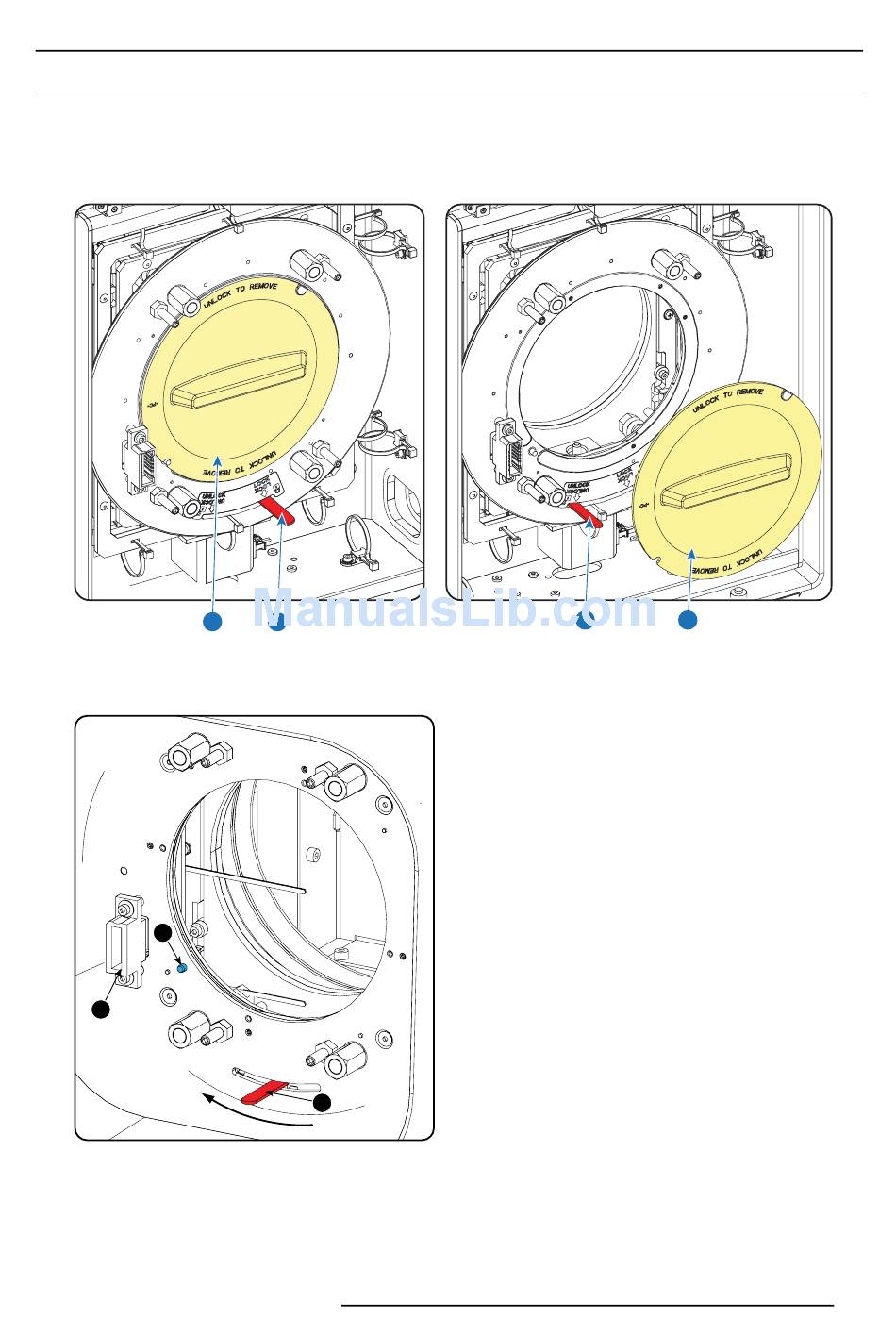

1. Remove the plastic lens holder cover.
a) Put the lock (1) into the unlock position.
b) Take out the plastic cover.
Image 5-16
2. Take the lens assembly out of its packing material and remove the lens caps on both sides.
3. Place the lens holder in the "unlocked" position by moving the lens lock handle (1) towards the lens power supply socket (2).
3
2
Image 5-17
Unlock lens holder
4. Ensure that the lens holder stands in the On-Axis position (horizontal and vertical mid position).
Note: The lens holder is placed default in the On-Axis position at factory.
5. Gently insert the lens in such a way that the lens connector matches the socket.
R5905963 PROMETHEUS SERIES 09/03/2015
2 1
1
5. Lenses & lens holder
1 2
