5. Lenses & lens holder
5.8
Fixation of the Lens Holder front plate
When fixing the Lens Holder front plate
After performing the procedure for Scheimpflug adjustment or Back Focal Length adjustment the Lens Holder front plate must be
secured in such a way that it doesn't disturb the result of the adjustment.
Necessary tools
•
10mm nut driver.
•
3mm Allen wrench.
•
13mm nut driver.
How to fix the Lens Holder front plate
Start the fixation as follows (steps must be followed strictly) :

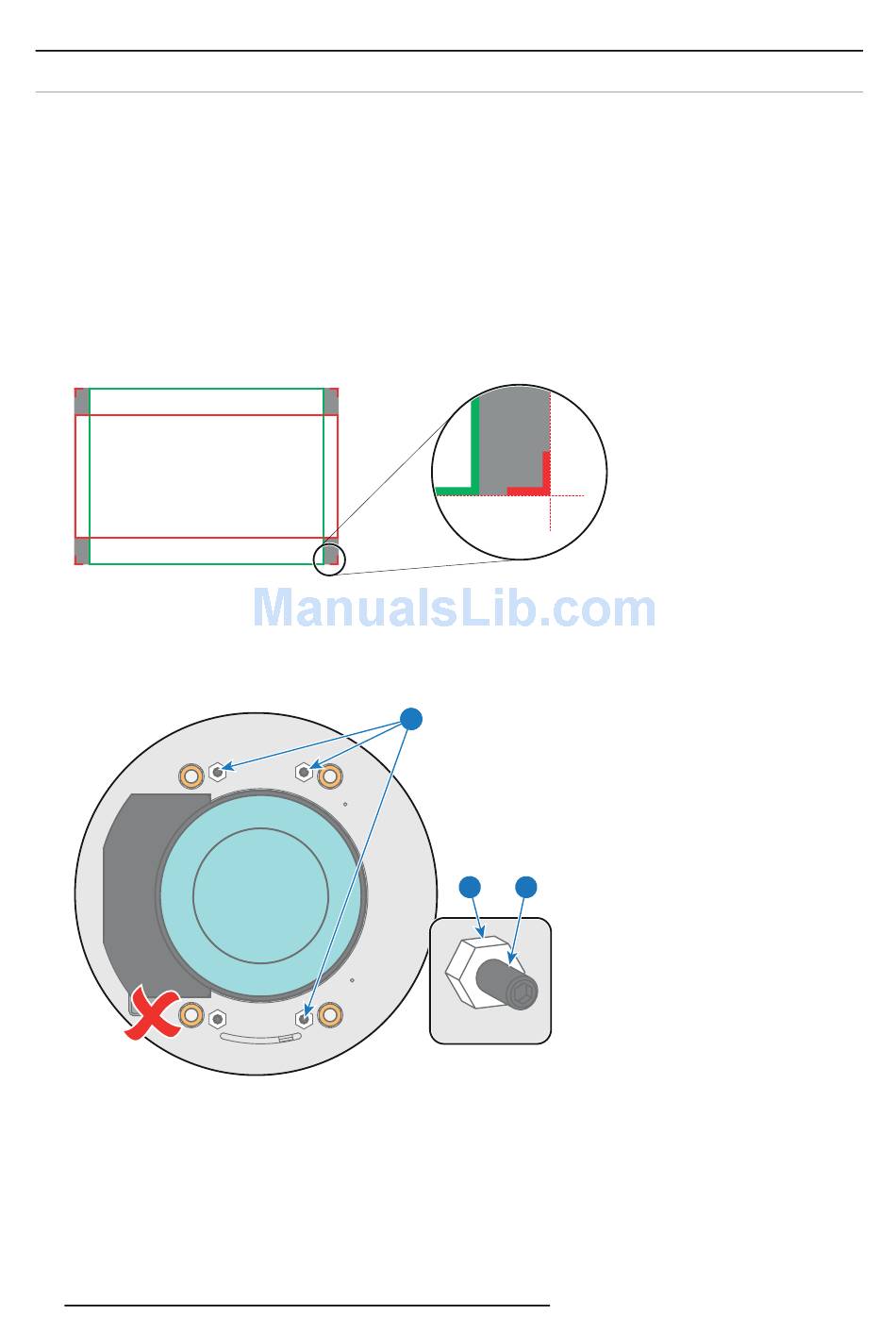

1. Project the framing test pattern for FLAT & SCOPE.
2. Zoom the projected image until the edges of the projected test pattern matches with the edges of the projection screen.
Image 5-42
3. Turn in the three set screws indicated with reference 11 image 5-43 without disturbing the projected image. Tighten lightly . Do
not turn in the set screw at the lower left of the Lens Holder!
Note: Ensure that the edges of the projected test pattern remain in place on the screen. Any movement of the image will affect
the Scheimpflug adjustment.
4. Fasten the lock nut (reference 21 image 5-43) of the three set screws. Use a 10mm nut driver. Ensure the image doesn't move.
Image 5-43
5. Gently turn (by hand) the Scheimpflug adjustment nut at the lower left of the Lens Holder (reference 4 image 5-44) against the
Lens Holder front plate without disturbing the projected image.
6. Turn in the set screw at the lower left of the Lens Holder (reference 14 image 5-44) without disturbing the projected image. Use
a 3mm Allen wrench.
Note: Ensure that the edges of the projected test pattern remain in place on the screen. Any movement of the image will affect
the Scheimpflug adjustment.
Tip:
Fasten the set screw and the Scheimpflug nut alternately, without disturbing the projected image, until the Scheimpflug
nut and set screw are completely tightened.
86
FLAT
SCOPE
11
21
11
R5905963 PROMETHEUS SERIES 09/03/2015
