Barco Prometheus I Safety & Instruction Manual

Prometheus series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Prometheus series
Installation & safety manual
R5905963/00
09/03/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prometheus I and is the answer not in the manual?

Questions and answers

Related Manuals for Barco Prometheus I

Summary of Contents for Barco Prometheus I

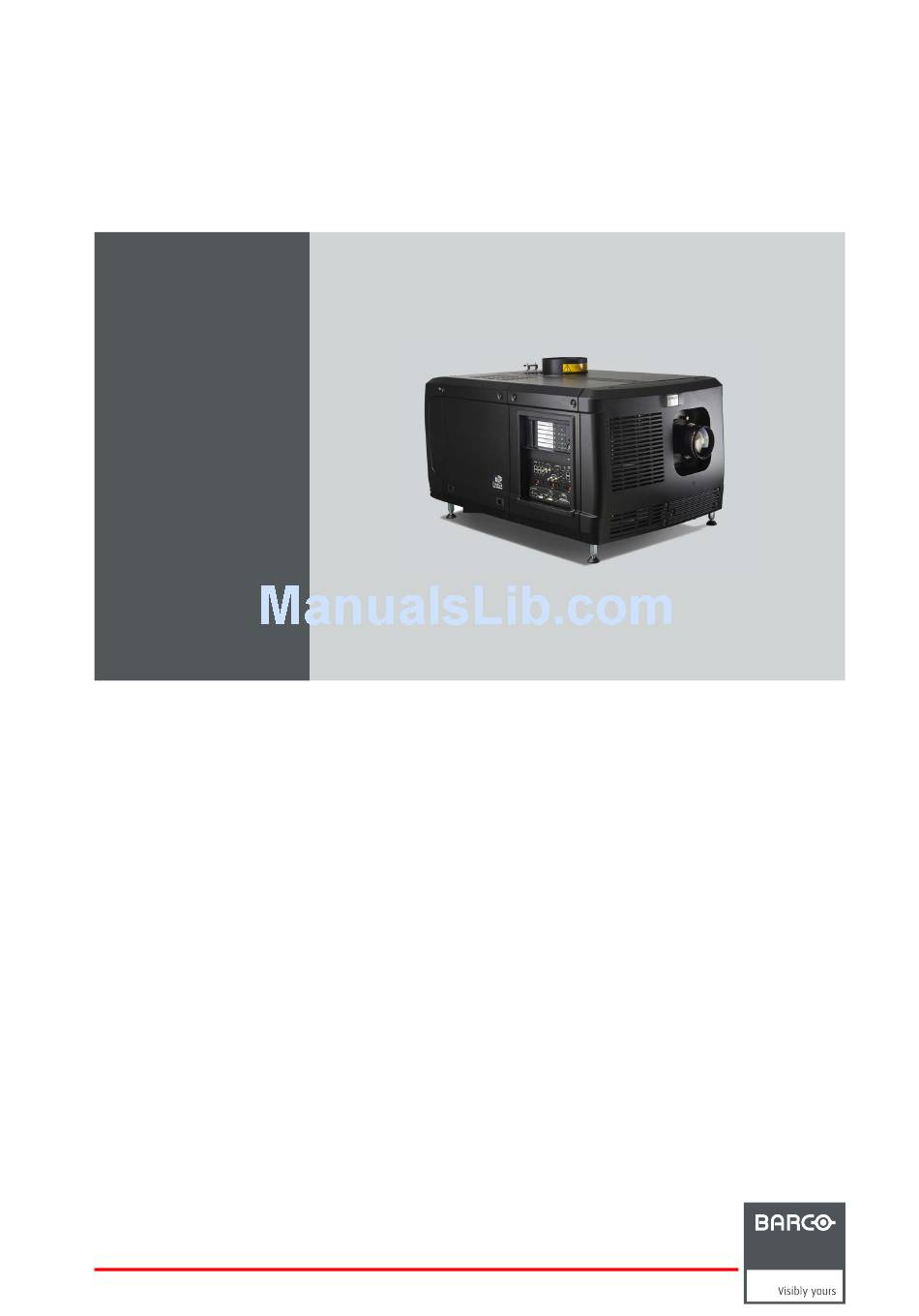

  • Page 1 Prometheus series Installation & safety manual R5905963/00 09/03/2015...
  • Page 2 Barco nv Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/en/support Visit us at the web: www.esterline.com Printed in Belgium...

  • Page 3: Software License Agreement

    The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
  • Page 4 GNU-GPL code If you would like a copy of the GPL source code contained in this product shipped to you on CD, please contact Barco. The cost of preparing and mailing a CD will be charged.

  • Page 5: Table Of Contents

    Connecting the Prometheus I projector with the power net ....... .
  • Page 6 13.1 Specifications of the Prometheus I........

  • Page 7: Safety

    Prometheus. Clarification of the term “Prometheus series” used in this document When referring in this document to the term “Prometheus series” means that the content is applicable for following Barco products: •...

  • Page 8: General Considerations

    Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments shall be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 9: Safety Training To Be Provided By The Installer

    1. Safety Safety training to be provided by the installer ARNING The installer is responsible that the user is instructed. The user will sign a document to confirm that the instructions have been received and understood. Users definition The Prometheus is intended for persons who have been instructed and trained by a skilled person (installer or service personnel) to identify energy sources that may cause injury and to take precautions to avoid unintentional contact with or exposure to those energy sources.

  • Page 10: Important Safety Instructions

    This product is equipped with a barrier strip for the connection of a power line. The configuration depends on the projector: Prometheus I: three-terminal barrier strip for the connection of a mono phase power line with a separate earth ground PE.
  • Page 11 1. Safety To prevent personal injury • Leave an exclusion zone around all external surfaces of the projector. See "Safety training to be provided by the installer", page • Isolate electrically before replacing the lamp or lamp house. Caution: hot lamp (house). •...
  • Page 12 If the product exhibits a distinct change in performance, indicating a need for service. • When replacement parts are required, be sure the service personnel has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.
  • Page 13 1. Safety AUTION Xenon compact arc lamps are highly pressurized. When ignited, the normal operating temperature of the bulb increases the pressure to a level at which the bulb may explode if not handled in strict accordance to the manufacturer’s instructions. The bulb is stable at room temperature, but may still explode if dropped or otherwise mishandled.

  • Page 14: Light Beam Hazard Distance (Hd)

    1. Safety Light beam Hazard Distance (HD) Light beam Hazard Distance (HD) is the distance from the source at which the intensity or the energy per surface unit becomes lower than the applicable safety limit. The light beam can thus be considered as dangerous if the operator is closer from the source than the HD.
  • Page 15 1. Safety Image 1-2 R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 16: Hd In Function Of The Lens Throw Ratio (Tr)

    Prometheus I Hazard Distance HD HB lens HD HC lens Image 1-3 HD in meter for the Prometheus I equipped with ’HD HB’ or ’HD HC’ type lens Prometheus II Hazard Distance HD HB lens HD HC lens Image 1-4 HD in meter for the Prometheus II equipped with ’HD HB’...

  • Page 17: General

    Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guar- antee. Observing the specification mentioned in this chapter is critical for projector performance. Neglecting this can result in loss of warranty.

  • Page 18: Safety Training To Be Provided By The Installer

    2. General Safety training to be provided by the installer ARNING The installer is responsible that the user is instructed. The user will sign a document to confirm that the instructions have been received and understood. Users definition The Prometheus is intended for persons who have been instructed and trained by a skilled person (installer or service personnel) to identify energy sources that may cause injury and to take precautions to avoid unintentional contact with or exposure to those energy sources.

  • Page 19: Installation Requirements

    /min (350 CFM) measured at the exhaust output of the projector. Main Power requirements Projector Power requirements Prometheus I 200-240 VAC, 50-60Hz, 30A at 200 VAC (mono phase) Prometheus II 230/400V 3W+N+PE 16A 50-60Hz (Y connection) or 208V 3W+PE 27A 50-60Hz (Δ connection) The power cord required to connect the projector with the power net is not delivered with the projector.

  • Page 20: Projector Weight

    No interference to radio communication in neighbor buildings possible if a separation distance of 30 m (32.8 yards) is provided. Barco offers a pedestal for the Prometheus. This universal pedestal allows a solid and easy setup of the projector. The universal pedestal has a separate compartment to install the UPS unit for the Prometheus.

  • Page 21: Unpacking The Projector

    2. General Unpacking the projector What has to be done ? Upon delivery, the projector is packed in a carton box upon a wooden pallet and secured with banding and fastening clips. Fur- thermore, to provide protection during transportation, the projector is surrounded with foam. Once the projector has arrived at the installation site, it needs to be removed from the carton box and wooden pallet in a safe manner without damaging the projector.
  • Page 22 2. General Image 2-2 Remove outer carton 3. Remove the inner carton box. Image 2-3 Remove inner carton 4. Loosen the banding by pulling the free end of the banding loop in the clip. Take off the upper carton plate (1) Remove from the wooden pallet (2) R5905963 PROMETHEUS SERIES 09/03/2015...
  • Page 23 2. General Image 2-4 Remove wooden pallet 5. Take the projector from the wooden board by gripping the bottom of the projector and place the projector on the pedestal. Image 2-5 Remove projector R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 24: Initial Inspection

    This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents and scratches, and that the operating panel is not scratched or cracked. The Barco Sales and Service office should be notified as soon as possible if this is not the case.

  • Page 25: Installation Process Overview

    27. 3. Electrical connection with the power net. See chapter "Connecting the Prometheus I projector with the power net", page 32 or "Connecting the Prometheus II projector with the power net", page 33. For the Power input set up chapter (only for Prometheus II), see "Power input setup (only for Prometheus II)", page 30.
  • Page 26 2. General 15.Projection of a digital cinema movie. In case the projector is equipped with an ICMP, download the ICMP device certificate, request KDM and DCP from your content supplier, ingest KDM and DCP, and play out the movie. for detailed instructions see chapter "ICMP", page 105, and user guide of the Communicator and/or (Web) Commander.

  • Page 27: Physical Installation

    Access to the power connection • Power input setup (only for Prometheus II) • Connecting the Prometheus I projector with the power net • Connecting the Prometheus II projector with the power net • Power loop through to the projector electronics •...

  • Page 28: Positioning The Prometheus At Port Window

    Image 3-1 Positioning at port window Barco offers a pedestal for the Prometheus. This universal pedestal allows a solid and easy setup of the projector. The universal pedestal has a separate compartment to install the UPS unit (if available) for the Prometheus.

  • Page 29: Projector Tilting

    3. Physical installation SCREEN CENTER SCREEN CENTER Image 3-2 Projector centering 3. Proceed to level the projector by adjusting the feet of the projector as follows: Loosen the nuts (A), using a wrench of 24 mm, on the threaded rod. Adjust the height of the 4 legs (B) to level the projector, using a 17 mm wrench.
  • Page 30 3. Physical installation 90° Inclined screen Image 3-4 Projector tilting Barco offers a pedestal for the Prometheus. This universal pedestal allows you to easily tilt the projector forward up to 6°. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 31: Installation Of The Exhaust System

    3. Physical installation Installation of the exhaust system ARNING THE USE OF AN EXHAUST SYSTEM IS MANDATORY ! ARNING Never look into the exhaust output. High luminance and UV radiation could result in damage to the eye. The installation of an exhaust system is mandatory before operating the projector. AUTION The exhaust system must be capable of removing minimum 10m /min (350 CFM), measured at the...
  • Page 32 3. Physical installation Ensure good condition of the lamp house blower. Keep the blower inlet clean for unrestricted air flow. To ensure maximum lamp life, operate the lamp house blower and the exhaust system for at least ten minutes after extinguishing the lamp. Optional electrical connection of the fan to the projector The exhaust fan may electrically be connected with the projector.

  • Page 33: Access To The Power Connection

    3. Physical installation Access to the power connection Necessary tools Flat screw driver 6 mm How to access 1. Remove the back cover. 2. Loosen both captive screws (1). Image 3-7 Power connection cover, captive screws Image 3-8 Power connection cover, captive screws 3.

  • Page 34: Power Input Setup (Only For Prometheus Ii)

    3. Physical installation Power input setup (only for Prometheus II) About the power input The projector power input can be configured for a power supply of 230/400V 3W+N+PE 16A 50-60Hz (Y connection) or 208V 3W+PE 27A 50-60Hz (Δ connection). Before operating the projector, place the links in the correct position depending on the local power supply.
  • Page 35 3. Physical installation Δ Image 3-12 Δ to Υ connection 2. Take off the mounted links (A, B and C). 3. Connect the right pins together. Place 2 links between the upper pin and the middle pin (A, B)and 1 link between the middle pin and the lower pin (C).

  • Page 36: Connecting The Prometheus I Projector With The Power Net

    3. Physical installation Connecting the Prometheus I projector with the power net ARNING The total electrical installation should be protected by an appropriate rated and readily accessi- ble disconnect switch, circuit breakers and ground fault current interrupters. The installation shall be done according to the local electrical installation codes.

  • Page 37: Connecting The Prometheus Ii Projector With The Power Net

    3. Physical installation Connecting the Prometheus II projector with the power net ARNING The total electrical installation should be protected by an appropriate rated and readily accessi- ble disconnect switch, circuit breakers and ground fault current interrupters. The installation shall be done according to the local electrical installation codes.
  • Page 38 3. Physical installation Always connect the ground wire (PE) with the connector indicated with PE on the terminal barrier strip. If a neutral conductor is available, connect always to the connector indicated with N on the terminal barrier strip Warning: Always connect first the PE wire.

  • Page 39: Power Loop Through To The Projector Electronics

    How to loop through the power 1. Plug in the short power cable (1) which was delivered with the projector. Warning: Always use the Barco short power cable which is delivered with the projector. Image 3-16 Power loop through connection 2.

  • Page 40: Connecting A Ups To The Projector Electronics

    3. Physical installation Connecting a UPS to the projector electronics ARNING Only use UPS units which are suitable for the Prometheus. See chapter ”General”, “Installation requirements” for more information about the requirements of the UPS. How to connect the UPS 1.

  • Page 41: Lamp & Lamp House

    4. Lamp & Lamp House 4. LAMP & LAMP HOUSE About this chapter This chapter describes how to insert a lamp house in the projector and how to replace a lamp inside the lamp house. ARNING DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY PHASE OF XENON LAMP HANDLING OR SERVICE.

  • Page 42: Introduction

    Introduction Lamp and Lamp House The Prometheus I projector is delivered with a manual or motorized S/M Lamp House without lamp, the Prometheus II projector is delivered with a manual or motorized XL Lamp House without lamp. The xenon bulb lamp is delivered separately and has to be installed on site by a qualified service technician.
  • Page 43 4. Lamp & Lamp House Parts identification manual Lamp House Image 4-3 Air inlet cathode cooling. Adjustment screw horizontal lamp alignment. Positioning pin. Connection Lamp Info module. Positioning pin. UV blocker. Cathode connection with SPG. Anode connection with SPG. Removable front cover. Air out let.

  • Page 44: Supported Xenon Lamps For The S/M Lamp House

    Prior to install the lamp it’s important to check with the Communicator software if the lamp is listed in the list of supported lamps for this projector. Supported lamp types and their respective anode/cathode adapters for the S/M Lamp House: Lamp type Cathode adapter S/M Lamp House Barco Order No. Supplier 4kW DHP OSRAM XBO R865555K R9855937...

  • Page 45: Supported Xenon Lamps For The Xl Lamp House

    Supported lamp types and their respective anode/cathode adapters for the XL Lamp House: Lamp type / Cathode adapter Anode adapter Anode adaptation Barco Order No. bushing Supplier 3000W DHS OFR R8436061K R859987K...
  • Page 46 Image 4-5 Cathode adapters for manual Lamp House R8436101K R8436081K R859984K R8436111K R8436061K Image 4-6 The shortest cathode adapter R8436101K is no longer needed for xenon lamps supported by Barco. For that this adapter has become obsolete. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 47: Removal Of The Lamp House

    4. Lamp & Lamp House Removal of the Lamp House ARNING This procedure may only be performed by qualified technical service personnel. ARNING The Lamp House is very hot after operation. To avoid burns, let the projector cool down for at least 15 minutes before proceeding to remove the Lamp House.

  • Page 48: Removal Of The Xenon Lamp From Manual S/M Lamp House

    4. Lamp & Lamp House Removal of the xenon lamp from manual S/M Lamp House ARNING DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY PHASE OF XENON LAMP HANDLING OR SERVICE. ONLY TRAINED AND QUALIFIED TECHNICAL SERVICE PERSONNEL ARE ALLOWED TO HANDLE THE XENON LAMP.
  • Page 49 4. Lamp & Lamp House Image 4-9 3. Release the four quarter turn screws (reference 5 image 4-10) of the UV blocker assembly as illustrated. Make sure that the anode support remains in its position while releasing the screws. Image 4-10 4.
  • Page 50 4. Lamp & Lamp House 6. Gently remove the xenon lamp together with the anode socket out of the Lamp House. Do not use excessive force upon the xenon lamp. Normally the xenon lamp will easily slide out the cathode socket of the Lamp House. Warning: Supporting the xenon lamp with one hand while pulling it out with other hand prevents it from bumping against the chassis of the Lamp House.
  • Page 51 4. Lamp & Lamp House 9. Remove the cathode adapter from the xenon lamp by releasing the hexagon socket head cap screw (reference 9 image 4-16) of the adapter as illustrated. Use a 5mm Allen wrench. Note: Some xenon lamps have a cathode pin with screw threat (reference 10 image 4-16). Image 4-16 Reinstall the UV blocker assembly and the side cover in case you do not intend to install another xenon lamp immediately in the Lamp House.

  • Page 52: Removal Of The Xenon Lamp From Manual Xl Lamp House

    4. Lamp & Lamp House Removal of the xenon lamp from manual XL Lamp House ARNING DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY PHASE OF XENON LAMP HANDLING OR SERVICE. ONLY TRAINED AND QUALIFIED TECHNICAL SERVICE PERSONNEL ARE ALLOWED TO HANDLE THE XENON LAMP.
  • Page 53 4. Lamp & Lamp House Image 4-18 3. Release the four quarter turn screws (reference 5 image 4-19) of the UV blocker assembly as illustrated. Make sure that the anode support remains in its position while releasing the screws. Image 4-19 4.
  • Page 54 4. Lamp & Lamp House 6. Gently remove the xenon lamp together with the anode socket out of the Lamp House. Do not use excessive force upon the xenon lamp. Normally the xenon lamp will easily slide out the cathode socket of the Lamp House. Warning: Supporting the xenon lamp with one hand while pulling it out with other hand prevents it from bumping against the chassis of the Lamp House.
  • Page 55 4. Lamp & Lamp House Image 4-24 9. Remove the cathode adapter from the xenon lamp by releasing the hexagon socket head set screw (reference 9 image 4-25) of the adapter as illustrated. Use a 2.5mm Allen wrench. Note: Some xenon lamps have a cathode pin with screw threat (reference 10 image 4-25. Image 4-25 10.Remove the anode adapter from the xenon lamp by releasing the hexagon socket head set screw (reference 13 image 4-26) of the lamp adapter as illustrated.
  • Page 56 4. Lamp & Lamp House Reinstall the UV blocker assembly and the side cover in case you do not intend to install another xenon lamp immediately in the Lamp House. AUTION Expired xenon lamps. Dispose of expired bulbs that are beyond warranty in the following manner: wrap the bulb tightly in several layers of canvas or heavy cloth.

  • Page 57: Installation Of The Xenon Lamp In Manual S/M Lamp House

    4. Lamp & Lamp House Installation of the xenon lamp in manual S/M Lamp House ARNING DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY PHASE OF XENON LAMP HANDLING OR SERVICE. ONLY TRAINED AND QUALIFIED TECHNICAL SERVICE PERSONNEL ARE ALLOWED TO HANDLE THE XENON LAMP.
  • Page 58 4. Lamp & Lamp House 2.5Nm Image 4-27 2. Install the anode wire lug (reference 6 image 4-28) upon the anode socket as illustrated. Use an 8mm Allen torque key set to 9Nm (6.64lbf*ft) to secure the bolt (reference 8 image 4-28). Place a flat washer (reference 7 image 4-28) between the bolt and the wire lug.
  • Page 59 4. Lamp & Lamp House 4. Remove the protective packing from the xenon lamp and gently insert the xenon lamp into the Lamp House as illustrated. Lamp cathode first, Make sure that the wire of the lamp anode is upwards oriented. While inserting the lamp, rotate it slightly, engaging the pins (reference 11 image 4-30) of the cathode adapter in the foreseen slots.
  • Page 60 4. Lamp & Lamp House Image 4-33 8. Install the side cover of the Lamp House and fasten the three quarter turn screws (reference 4 image 4-34) of the cover. Note: Please ensure that the quarter turn screws turning wires are flush with the cover or interference will occur while inserting the Lamp House into the projector.
  • Page 61 4. Lamp & Lamp House A realignment of the xenon lamp in its reflector is required after the installation of the xenon lamp in the Lamp House. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 62: Installation Of The Xenon Lamp In Manual Xl Lamp House

    4. Lamp & Lamp House Installation of the xenon lamp in manual XL Lamp House ARNING DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY PHASE OF XENON LAMP HANDLING OR SERVICE. ONLY TRAINED AND QUALIFIED TECHNICAL SERVICE PERSONNEL ARE ALLOWED TO HANDLE THE XENON LAMP.
  • Page 63 4. Lamp & Lamp House 2.5Nm Image 4-36 2. Requires the xenon lamp an anode adapter? Tip: See supported xenon bulb lamps to know if your lamp requires an anode adapter. If yes, install the appropriate lamp anode adapter on the anode of the xenon lamp. Fasten the set screw (reference 13 image 4-37) of the anode adapter with a torque of 2.5Nm (1.84 lbf*ft).
  • Page 64 4. Lamp & Lamp House 25 Nm Image 4-38 Tip: Write down the serial number of the xenon lamp. You will need this while updating the lamp parameters after installation of the xenon lamp. The serial number of the xenon lamp is engraved in the neck of the xenon lamp. 4.
  • Page 65 4. Lamp & Lamp House If yes, insert the anode adaptation bushing (reference 12 image 4-40 and image 4-43) into the integrated anode support of the UV blocker. If no, make sure that there is no anode adaptation bushing inserted into the anode support. Image 4-40 7.
  • Page 66 4. Lamp & Lamp House Image 4-43 10.Secure the UV blocker by fastening the four quarter turn screws (reference 5 image 4-44) as illustrated. Note: Ensure that the quarter turn screws turning wires are flush with the cover or interference will occur while inserting the Lamp House into the projector.
  • Page 67 4. Lamp & Lamp House 5 Nm 5 Nm Image 4-46 AUTION The “LAMP INFO” parameters which are stored on a chip inside the Lamp House MUST be updated after each installation of an xenon lamp inside the Lamp House. Neglecting this update will result in poor performance and short life time of the xenon lamp.

  • Page 68: Check If Anode Support Must Be Provided With A Plain Washer

    4. Lamp & Lamp House Check if anode support must be provided with a plain washer Necessary tools • 2.5mm Allen wrench. • 19mm open-end wrench. Necessary parts Plain washer, stainless steel, ØD = 18mm, Ød = 6.4mm, thickness = 1.6mm. (V3673807). How to check if the anode support must be provided with a plain washer? 1.

  • Page 69: Installation Of The Lamp House

    4. Lamp & Lamp House 4.10 Installation of the Lamp House ARNING This procedure may only be performed by qualified technical service personnel. AUTION Due to its high internal pressure, the lamp may explode in either hot or cold states if improperly handled.

  • Page 70: Resetting The Lamp Parameters

    4. Lamp & Lamp House 4.11 Resetting the lamp parameters AUTION The “LAMP INFO” parameters MUST be updated after each installation of a xenon lamp inside the Lamp House. Neglecting this update will result in poor performance and short life time of the xenon lamp. For a new lamp, how to reset the values 1.

  • Page 71: Realignment Of The Lamp In Its Reflector (Manual Lamp House)

    4. Lamp & Lamp House 4.12 Realignment of the lamp in its reflector (manual Lamp House) Each xenon lamp installation requires a realignment of the lamp in its reflector for optimal performance of the xenon lamp in the Prometheus. Furthermore, it is recommended to realign the lamp after the first run time of 100 and 200 hours.
  • Page 72 4. Lamp & Lamp House 6. Adjust the X-axis (ref X image 4-53), the Y-axis (ref Y image 4-53) and the Z-axis (ref Z image 4-53) for maximum current light output (Footlambert Measured). Carefully turn the thumbscrew for maximum light output. Once over the maximum, turn slightly in opposite direction to reach the maximum light output again.

  • Page 73: Lenses & Lens Holder

    5. Lenses & lens holder 5. LENSES & LENS HOLDER About this chapter This chapter gives an overview of available lenses for the Prometheus and explains how you can select the best suited lens for your specific situation using the lens calculator. Also, it is explained how to install and remove a lens from the projector lens holder and how you can shift, zoom and focus the lens.

  • Page 74: Available Lenses

    Available lenses Which lenses are available for my projector? The table below is subject to changes and was last updated on 15/04/2013. Consult Barco’s web site and click on myBarco for the most recent information about available lenses. Product Number...
  • Page 75 5. Lenses & lens holder Image 5-7 Image 5-8 Image 5-9 R9855945 R9855964 R9856300 Image 5-10 Image 5-11 Image 5-12 R9855946 R9855947 R9856294 Image 5-13 Image 5-14 R9856297 R9856300 R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 76: Lens Selection

    5. Lenses & lens holder Lens selection Which lens do I need? 1. Go to Barco’s website on www.barco.com and click on myBarco 2. Login on. If you are not yet registered create a login and password. With the created login and password, it is possible to enter myBarco.

  • Page 77: Lens Installation

    5. Lenses & lens holder Lens installation How to install a lens? 1. Remove the plastic lens holder cover. a) Put the lock (1) into the unlock position. b) Take out the plastic cover. Image 5-16 2. Take the lens assembly out of its packing material and remove the lens caps on both sides. 3.
  • Page 78 5. Lenses & lens holder Image 5-18 Mount lens 6. Insert the lens until the connector seats into the socket. the pin (3) on the lens holder matches with the sleeve in the lens. the connector seats into the socket (2) Warning: Do not release the Lens yet, as the Lens may fall out of the Lens Holder.
  • Page 79 5. Lenses & lens holder 9. Perform a lens HOME & RETURN operation. (See user guide of the Communicator chapter Installation > Advanced > Lens parameters) Note: The HOME & RETURN operation enables the projector to determine the reference positions of the motorized ZOOM and FOCUS of the installed lens.

  • Page 80: Lens Removal

    5. Lenses & lens holder Lens removal How to remove a lens? 1. Support the lens with one hand while you unlock the lens holder by sliding the lock handle towards the “unlocked” position as illustrated. Image 5-21 Unlock lens 2.

  • Page 81: Lens Shift, Zoom & Focus

    5. Lenses & lens holder Lens shift, zoom & focus Motorized lens adjustment The Prometheus is equipped with a motorized lens shift functionality and a motorized zoom & focus functionality. Maximum shift range The lens can be shifted with respect to the DMD which result in a shifted image on the screen (Off-Axis). A 100% shift means that the centre point of the projected image is shifted by half the screen size.

  • Page 82: Back Focal Length Adjustment

    5. Lenses & lens holder Back Focal Length adjustment When to adjust the Back Focal Length? If a lens is used with a throw ratio suited for the application, (lens selection depends on projection distance and screen size) typically one would NEVER need to adjust the Back Focal Length of the projector. A Back Focal Length adjustment is only required in case the Focus range of the installed lens does not capture the projection screen either for FLAT and/or for SCOPE.
  • Page 83 5. Lenses & lens holder How to adjust the Back Focal Length? 1. Unlock and loosen the 4 set screws (reference 11 image 5-28) of the Lens Holder by 1 centimeter. Use a 10mm nut driver for the lock nuts (reference 21 image 5-28) and use a 3mm Allen wrench for the set screws. Image 5-28 2.
  • Page 84 5. Lenses & lens holder FOCUS Image 5-31 5. Is it possible to focus the center of the projected image using the motorized focus control (Local Keypad) ? Ensure that the lens is zoomed for maximum image on the screen (WIDE). If yes, nominal position is good for sharp focus in the middle of the projected image.
  • Page 85 5. Lenses & lens holder If yes, the Back Focal Length is correctly adjusted. If no, repeat with step 4. 9. Is the projected image in the corners as sharp as in the middle? If yes, proceed with the procedure "Fixation of the Lens Holder front plate", page 86. If no, Scheimpflug adjustment is required.

  • Page 86: Scheimpflug Adjustment

    5. Lenses & lens holder Scheimpflug adjustment What has to be done ? The lens holder has to be adjusted so that the “sharp focus plane” of the projected image falls together with the plane of the screen (Fp1→Fp2). This is achieved by changing the distance between the DMD plane and the lens plane (Lp1→Lp2). The closer the lens plane comes to the DMD plane the further the sharp focus plane will be.

  • Page 87: How To Adjust

    5. Lenses & lens holder Necessary tools • Allen key 3 mm • Nut driver 13 mm • Nut driver 10 mm How to adjust 1. Project a green focus pattern. For a 4K projector, use the 4K test pattern. Otherwise, use the 2K test pattern. Image 5-37 2.
  • Page 88 5. Lenses & lens holder Image 5-39 Left bottom focusing 7. Sharpen bottom right corner of the screen by adjusting nut 2. Image 5-40 Right bottom focusing 8. Sharpen top right corner of the screen by adjusting nut 3 R5905963 PROMETHEUS SERIES 09/03/2015...
  • Page 89 5. Lenses & lens holder Image 5-41 Corner focusing 9. Repeat from step 6 until the projected focus pattern is as sharp as possible in the center, left, right, top and bottom of the screen. 10.Continue with the Fixation of the lens holder front plate procedure. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 90: Fixation Of The Lens Holder Front Plate

    5. Lenses & lens holder Fixation of the Lens Holder front plate When fixing the Lens Holder front plate After performing the procedure for Scheimpflug adjustment or Back Focal Length adjustment the Lens Holder front plate must be secured in such a way that it doesn’t disturb the result of the adjustment. Necessary tools •...
  • Page 91 5. Lenses & lens holder Image 5-44 7. Fasten the lock nut at the lower left of the Lens Holder. Use a 10mm nut driver. R5905963 PROMETHEUS SERIES 09/03/2015...
  • Page 92 5. Lenses & lens holder R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 93: Input & Communication

    6. Input & communication 6. INPUT & COMMUNICATION Overview • Introduction • Local keypad of the Prometheus • Integrated Cinema Processor (ICP) • HD-SDI Input Module (optional) • Quad 3G-SDI Input Module (optional) • Integrated Media Block/Server (optional) • Cinema Controller of the Prometheus R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 94: Introduction

    Optional slot for either IMB, IMS or HD-SDI input module. Barco Cinema Controller. Barco ICMP (inserted in ICP slot and optional slot). AUTION A unit may only be removed from the card cage by qualified service personnel. Removing one of the boards (except for the Cinema Controller) will result in an authorization request upon starting.

  • Page 95: Local Keypad Of The Prometheus

    6. Input & communication Local keypad of the Prometheus Identification of the keys Image 6-2 Local keypad Marker area for macro name Numeric keyboard Standby key Dowser open/close switch Test pattern toggle switch Lens shift up/down, left/right Lens focus Lens zoom Numeric keys All the numeric keys (2) of the local keypad have a blue backlight during normal operation.

  • Page 96: Integrated Cinema Processor (Icp)

    6. Input & communication Integrated Cinema Processor (ICP) In case the projector is equipped with a Barco ICMP no ICP board is inserted. All ICP functionality is integrated in the Barco ICMP. LEDs and ports on the Integrated Cinema Processor...

  • Page 97: Hd-Sdi Input Module (Optional)

    6. Input & communication HD-SDI Input Module (optional) Depending on the projector configuration the projector card cage is either equipped with an ICP or ICMP. In case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally inserted into the slot below the ICP.
  • Page 98 6. Input & communication Source: 2K General settings Advanced settings Port Port type Mode Pixel mapping Scan type Color Calibration space 4:4:4 10 Progressive HDSDI Duallink HDSDI-Dual link Single bits/color Progressive - field bit normal Progressive - field bit inverted Progressive SF - 2nd field dominant Progressive SF- 1st...
  • Page 99 6. Input & communication Source: 2K-3D General settings Advanced settings Port Port type Mode Pixel mapping Scan type Color Calibration space 3G - Level B - Single Interleaved Dual (separate left / right eye) 4:4:4 12 Progressive XYR/RGB 3G - Level A - Single bits/color Interleaved...

  • Page 100: Quad 3G-Sdi Input Module (Optional)

    6. Input & communication Quad 3G-SDI Input Module (optional) Location and source input ports QUAD 3G/SDI INPUT SYNC OK SYNC OK SYNC OK SYNC OK Image 6-5 The following input combinations are possible : A, B, A+B, A+B+C+D When using all 4 four inputs to create the image connect the quadrants of the image to the inputs as indicated on the drawing. Image 6-6 Quadrant connection To configure the input, consult the Communicator manual...
  • Page 101 6. Input & communication Source formats General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space A or B HD-SDI Single 4:2:2 10 Progressive YCbCr HD-SDI-Single link Single link bits/color Progressive - field bit normal Progressive - field bit inverted...
  • Page 102 6. Input & communication General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space 2K-3D A or B 3G-SDI link - 3D 4:2:2 10 Progressive YCbCr 3G - Level B - Dual Single bits/color stream Dual (separate left / right eye)
  • Page 103 6. Input & communication General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space 4:4:4 10 Progressive 3G - Level A - Single bits/color Interleaved 3G - Level B - Interleaved 4:4:4 12 Progressive XYZ/RGB 3G - Level A - Single...
  • Page 104 6. Input & communication General settings Advanced settings Source Port Port type Mode Scan type Color Pixel mapping Calibration space 3G - Level B - Quad Link Progressive SF - 2nd XYZ/RGB 3G - Level A - Quad Single field dominant Link 3G - Level B - Quad Link...

  • Page 105: Integrated Media Block/Server (Optional)

    6. Input & communication Integrated Media Block/Server (optional) Depending on the projector configuration the projector card cage is either equipped with an ICP or ICMP. In case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally inserted into the slot below the ICP.

  • Page 106: Cinema Controller Of The Prometheus

    6. Input & communication Cinema Controller of the Prometheus Location of the communication ports RS232 IN 3D INTERFACE PERIPHERAL PORT 10 / 100 / 1000 BASE-T DVI INPUT GENERAL PURPOSE IN/OUT DVI A DVI B SYNC OK SYNC OK Image 6-9 Communication ports 10/100/1000 base-T RS232 IN...
  • Page 107 6. Input & communication Location of the source input ports (DVI) RS232 IN 3D INTERFACE PERIPHERAL PORT 10 / 100 / 1000 BASE-T DVI INPUT GENERAL PURPOSE IN/OUT DVI A DVI B SYNC OK SYNC OK Image 6-10 DVI-D input, port A, Single link + HDCP DVI-D input, port B, Single link + HDCP In case an ICMP is installed the DVI ports of the Cinema Controller are not operational.
  • Page 108 6. Input & communication 2048 2048 DVI-A DVI-B 8 bit 8 bit 24 Hz 24 Hz Image 6-11 DVI-4K R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 109: Icmp

    This chapter describes the ICMP in general, the HDDs, the input ports and the communication ports. Furthermore, the status LEDs are described and the importance of the device certificate is illustrated. Image 7-1 Barco ICMP with video mezzanine. Overview •...

  • Page 110: Icmp Introduction

    The Card Cage can be different depending the projector type but it always consists of a button module and several removable units. The ICMP (reference 1) is inserted into the former ICP slot and IMB slot above the Barco Cinema Controller (reference 2).

  • Page 111: Icmp Hdd

    7. ICMP ICMP HDD About ICMP HDD The three HDDs (local storage) in the ICMP, are set up in a RAID 5 configuration. This storage technique, that combines multiple HDD components into a logical unit, manages enough redundancy information to continue to operate properly after the loss of one HDD.

  • Page 112: Icmp Communication Ports

    7. ICMP ICMP communication ports Location of the communication ports Image 7-5 Functionality AUDIO-AES 1-8 (9-16) ICMP outputs sixteen audio signals equitably distributed over these two RJ45 connectors, which can be configured independently. The mapping of audio channels (content) on each audio output (AES outputs of the ICMP) is performed by configuring the ICMP via the Communicator software.
  • Page 113 7. ICMP Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the cables, connectors and communications protocols used in a bus for connection, communication, and power supply between computers and electronic devices. USB 2.0 (also called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed"...

  • Page 114: Icmp Source Input Ports

    7. ICMP ICMP source input ports Location of the source input ports Image 7-6 Functionality DisplayPort A (B) DisplayPort connector to connect a video source. 3G-SDI A (B) SDI connector to connect a video source. HDMI HDMI connector to connect a video source. DisplayPort specifications Supported Modes: •...
  • Page 115 7. ICMP Detailed timings Color depth Display Mode Display Mode @ EDID (bpc) (A, B) 2D / 3D 2048 x 2160 @60Hz (aka 8, 10 A+B span 2D + 3D 4K@60Hz using A+B span) 1920 x 1080 @60Hz 8, 10 Single 2D + 3D Includes NTSC refresh rates = (Hz*1000)/1001...
  • Page 116 7. ICMP DisplayPort Digital display interface developed by the Video Electronics Standards Association (VESA). This royalty-free interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to transmit audio, USB, and other forms of data.

  • Page 117: Icmp Reset Button And Status Leds

    7. ICMP ICMP reset button and status LEDs ICMP status LEDs and Reset button LEDs on ICMP front panel give information on the status of the device. Image 7-7 Status overview PWR/ERROR and READY LEDs: PWR/ERROR READY ICMP Status Turned off Board reset Blinking Green Boot loader...

  • Page 118: Icmp Hdd Status Leds

    7. ICMP ICMP HDD status LEDs ICMP HDD status LEDs Image 7-8 Status overview PWR/ERROR and READY LEDs: HDD I/O RAID ICMP HDD Status HDD idle / Disk in RAID OK. Blinking Green HDD I/O activity / Disk in RAID OK. Blinking Green Blinking Red HDD I/O activity / RAID rebuilding.
  • Page 119 7. ICMP In case the ICMP has to be returned to factory (e.g. for repair) the non defective HDDs should be removed and kept. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 120: Icmp Configuration Via Communicator

    • Verify internal clock of the ICMP. All installation and maintenance operations on the ICMP are performed via Communicator, the Barco config- uration software. Please refer to the Communicator user guide for further information. About Default settings The restore of factory setting is a feature that allows removing all settings performed on the ICMP and replaces them with the default values set at the factory.

  • Page 121: Removing A Hdd Form The Icmp

    7. ICMP Removing a HDD form the ICMP In case the ICMP has to be returned to factory (e.g. for repair) the non defective HDDs should be removed and kept. How to remove a HDD ? 1. Switch off the projector. Note: In case only one HDD fails it is allowed to hot swap the HDD.

  • Page 122: Installing A Hdd Into The Icmp

    This procedure assumes that the HDD slot of the ICMP is empty. If not, see procedure "Removing a HDD form the ICMP", page 117. AUTION Always use a new empty spare part HDD from Barco to replace a malfunction HDD. Do not use a HDD from another ICMP HDD set. How to install a HDD ? 1.
  • Page 123 7. ICMP In case you replace one HDD (e.g. degraded mode) the ICMP automatically starts with the RAID recovery process. The red LED of the HDD which has to be rebuilt is blinking. This process takes about 3 to 5 hours. Once the RAID is completed the red LED turns off.
  • Page 124 7. ICMP R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 125: Communicator Touch Panel

    8. Communicator Touch Panel 8. COMMUNICATOR TOUCH PANEL Overview • Introduction • Installation of the touch panel interface R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 126: Introduction

    8. Communicator Touch Panel Introduction Communicator Touch Panel for digital cinema projectors The Communicator Touch Panel is designed for multi-user command and control, the Communicator enables users to learn quickly and operate efficiently - using an elegant and flexible touch panel interface. The interface’s commonality means that operators can intuitively use any model in the product line, without restriction, and its user-friendly nature translates directly into a short and enjoyable learning curve.
  • Page 127 8. Communicator Touch Panel AUTION For more information about the use of the Communicator Touch Panel, consult its user guide. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 128: Installation Of The Touch Panel Interface

    8. Communicator Touch Panel Installation of the touch panel interface Necessary tools • 17 mm wrench • 10 mm wrench How to install the touch panel interface 1. Assemble the mounting plate and the swivel arm together as illustrated. First place the nut (N) upon the rod of the mounting plate, then add the lock washer (L), then fasten the mounting plate and the swivel arm together.
  • Page 129 8. Communicator Touch Panel Image 8-6 Mount touch panel 4. Connect the circular plug of the multi cable with the circular socket at the rear side of the Prometheus. Image 8-7 5. Attach the multi cable to the swivel arm using the two Velcro strips. 6.
  • Page 130 8. Communicator Touch Panel R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 131: Starting Up

    9. Starting up 9. STARTING UP About this chapter This chapter contains the switch ON and switch OFF procedures of the Prometheus. These procedures enumerate all the important points which have to be checked prior to switching ON the projector. This is to ensure a safe start up of the projector. Overview •...

  • Page 132: Switching On The Prometheus

    9. Starting up Switching ON the Prometheus How to switch on 1. Make sure that the Prometheus is installed upon a stable pedestal. 2. Make sure that the exhaust system is properly installed. 3. Make sure that the right lens is installed for your application. 4.

  • Page 133: Switching Off The Prometheus

    9. Starting up Switching OFF the Prometheus How to switch OFF the Prometheus? 1. Press the standby button on the local keypad or use the Communicator Touch Panel to switch the projector from operation to standby. As a result the lamp turns off but the fans remain turning to cool down the projector. 2.
  • Page 134 9. Starting up R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 135: Removal And Installation Of The Projector Covers

    10. Removal and installation of the projector covers 10. REMOVAL AND INSTALLATION OF THE PROJECTOR COVERS ARNING All procedures in this chapter may only be performed by “qualified service technicians” . ARNING Disconnect the power to the circuit mains terminals and unplug the power cord at UPS INLET, unless otherwise specified in the procedure.

  • Page 136: Removal Of The Lamp Cover

    10. Removal and installation of the projector covers 10.1 Removal of the lamp cover Necessary tools Flat screwdriver How to remove 1. Release both captive screws on top of the lamp cover. Image 10-2 Lamp cover, fasting screws 2. Push both lock to each other to release the locks and pull at the same time the bottom side of the cover away form the projector. Image 10-3 Lamp cover, locks 3.
  • Page 137 10. Removal and installation of the projector covers Image 10-4 Lamp cover, removal R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 138: Removal Of The Rear Cover

    10. Removal and installation of the projector covers 10.2 Removal of the rear cover Necessary tools Flat screwdriver How to remove 1. Release both captive screws almost at the bottom of the rear cover using a flat screw driver (1). Image 10-5 Rear housing removal 2.

  • Page 139: Removal Of The Input Cover

    10. Removal and installation of the projector covers 10.3 Removal of the input cover Necessary tools Flat screwdriver How to remove 1. Release both captive screws at the top of the input cover using a flat screw driver. Image 10-6 Input cover, fixation 2.
  • Page 140 10. Removal and installation of the projector covers Image 10-7 Input cover removal R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 141: Removal Of The

    10. Removal and installation of the projector covers 10.4 Removal of the front cover Necessary tools Flat screwdriver How to remove 1. Check if the lens is removed. 2. Remove the rubber dust ring from the lens holder. Image 10-8 Release cover removal 3.
  • Page 142 10. Removal and installation of the projector covers Image 10-9 Remove front cover R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 143: Removal Of The Side Cover

    10. Removal and installation of the projector covers 10.5 Removal of the side cover Necessary tools Flat screwdriver How to remove 1. Release both captive screws on top of the side cover. Image 10-10 Captive screws 2. Push both lock to each other to release the locks and pull at the same time the bottom side of the cover away form the projector. Image 10-11 Unlock side cover 3.
  • Page 144 10. Removal and installation of the projector covers Image 10-12 Side cover R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 145: Installation Of The

    10. Removal and installation of the projector covers 10.6 Installation of the front cover Necessary tools Flat screwdriver How to install 1. Ensure that no lens is mounted. 2. Execute the next steps to install the front cover: a) Hook the bottom side of the cover to the projector. b) Gently push the top side of the cover into position.
  • Page 146 10. Removal and installation of the projector covers Image 10-14 Secure front cover 4. Reinstall the rubber dust ring around the lens holder. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 147: Installation Of The Input Cover

    10. Removal and installation of the projector covers 10.7 Installation of the input cover Necessary tools Flat screwdriver How to install 1. Place the top side of the cover on its place. Image 10-15 Mount input cover 2. Gently move the bottom side of the cover towards the projector and push the bottom side until the locking studs click in the receivers.

  • Page 148: Installation Of The Lamp Cover

    10. Removal and installation of the projector covers 10.8 Installation of the lamp cover Necessary tools Flat screwdriver How to install 1. Place the top side of the cover on its place. Image 10-17 Mount lamp cover Close the cover as follow: a) Gently move the bottom side of the cover towards the projector b) Push both lock to each other and push at the same time the cover against the projector frame.
  • Page 149 10. Removal and installation of the projector covers Image 10-18 Secure lamp cover R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 150: Installation Of The Rear Cover

    10. Removal and installation of the projector covers 10.9 Installation of the rear cover Necessary tools Flat screwdriver How to install 1. Install the rear cover of the projector doing the following: a) Bring the rear cover towards its final position. b) Gently push the locking studs into the receivers (1).

  • Page 151: Installation Of The Side Cover

    10. Removal and installation of the projector covers 10.10 Installation of the side cover How to install 1. Place the top of the side cover on its place. Close the cover as follow: a) Gently move the bottom side of the cover towards the projector b) Push both lock to each other and push at the same time the cover against the projector frame.
  • Page 152 10. Removal and installation of the projector covers R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 153: Maintenance

    11. Maintenance 11. MAINTENANCE About this chapter This chapter describes how to remove the dust filters Overview • Remove and clean the front dust filter • Remove and clean both bottom dust filters • Cleaning the lens • Cleaning the exterior of the projector •...

  • Page 154: Remove And Clean The Front Dust Filter

    11. Maintenance 11.1 Remove and clean the front dust filter How to remove 1. Remove the input cover. 2. Slide out the filter frame. Image 11-1 Front dust filter Clean the dust filter 1. Remove most contamination with a vacuum cleaner in an other room or outside. 2.

  • Page 155: Remove And Clean Both Bottom Dust Filters

    11. Maintenance 11.2 Remove and clean both bottom dust filters How to remove 1. Remove the side cover. 2. Slide out the bottom front dust filter. Image 11-3 Bottom front dust filter 3. Slide out the bottom back dust filter. Image 11-4 Bottom back dust filter Clean the dust filter...

  • Page 156: Cleaning The Lens

    11. Maintenance 11.3 Cleaning the lens To minimize the possibility of damage to optical coatings, or scratches to lens surfaces follow the cleaning procedure as described here precisely. Necessary tools • Compressed air. • Clean Toraysee® cloth or any micro fiber lens cleaning cloth. •...

  • Page 157: Cleaning The Exterior Of The Projector

    11. Maintenance 11.4 Cleaning the exterior of the projector How to clean the exterior of the projector ? 1. Switch off the projector and unplug the projector from the mains power net. 2. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution.

  • Page 158: Check Cooling Liquid Level

    11. Maintenance 11.5 Check cooling liquid level What should be done ? The projector is liquid cooled. It is important that the liquid level is checked at regular intervals. We advise to check every 3 months. The liquid level must be between Min. and Max. Significant drop in liquid level indicates a major leakage and requires immediate attention.

  • Page 159: Cooling Liquid Refill

    11. Maintenance 11.6 Cooling liquid refill ARNING This procedure may only be performed by qualified technical service personnel. Order info cooling liquid B1909086K : bottle of 1 liter cooling liquid. Necessary parts Cooling liquid How to refill 1. Remove the side cover, see "Removal of the side cover", page 139. 2.

  • Page 160: Authorization To Clear Security Warning On The Projector

    11. Maintenance 11.7 Authorization to clear security warning on the projector When is an authorization required to clear the security warning? If a module has been removed or if the sealed compartment has been opened, an authorization will be required to clear the security warning.

  • Page 161: Convergence

    12. Convergence 12. CONVERGENCE About this chapter This chapter describes how to prepare the projector for convergence adjustment and how to adjust the convergence. Overview • Open the sealed compartment • Close the sealed compartment • Convergence controls • Red on blue convergence •...

  • Page 162: Open The Sealed Compartment

    12. Convergence 12.1 Open the sealed compartment This procedure assumes that the side cover of the projector is already removed. AUTION This procedure may only be done by a qualified and trained service technician. Necessary tools 3 mm Allen wrench How to open the sealed compartment 1.
  • Page 163 12. Convergence Image 12-2 Sealed cover, remove A security warning will be displayed on the projector. Execute the procedure “Authorization to clear security warning on the projector”. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 164: Close The Sealed Compartment

    12. Convergence 12.2 Close the sealed compartment Necessary tools 3 mm Allen wrench How to close the sealed compartment 1. Hook the cover plate on the studs. Image 12-3 Sealed cover, mount 2. Slide the cover downwards by pushing on both lips until it is in its correct position. 3.

  • Page 165: Convergence Controls

    12. Convergence 12.3 Convergence controls Definitions-Abbreviations • X: Horizontal direction on the screen, with origin in the centre of the screen and + to the right • Y: Vertical direction on the screen, with origin in the centre of the screen and + to the top •...
  • Page 166 12. Convergence Image 12-6 Convergence test pattern Work Instructions: • GREEN and RED DMD’s are to be adjusted with reference to the BLUE dmd. • Each adjustment allows for approximately 10 pixels (for 2K projectors) or 20 pixels (for 4K projectors) maximum displacement to either side of the nominal BLUE position •...

  • Page 167: Red On Blue Convergence

    12. Convergence 12.4 Red on blue convergence Necessary tools No tools. Converging the RED pattern onto the BLUE pattern Start with aligning the RED DMD in the vertical directions [1] and [2] and then proceed with the horizontal direction [3] 1.

  • Page 168: Green On Blue Convergence

    12. Convergence 12.5 Green on blue convergence Necessary tools No tools. Converging the GREEN pattern onto the BLUE pattern Next , align the GREEN DMD in the vertical directions [4] and [5] and then proceed with the horizontal direction [6]. 1.

  • Page 169: Specifications

    This chapter gives an overview of the specification of the projector as well as the dimensions, the center of gravity and the dimensions of the optional pedestal. Overview • Specifications of the Prometheus I • Specifications of the Prometheus II •...

  • Page 170: Specifications Of The Prometheus I

    13. Specifications 13.1 Specifications of the Prometheus I Overview Digital MicroMirror Device™ 3 x 1.38” DC4K dark metal devices Native resolution 4,096 x 2,160 pixels Housing Hermetically sealed DMD and optical assembly Lamp 2kW included (Xenon) Up to 4kW possible...

  • Page 171: Specifications Of The Prometheus Ii

    13. Specifications 13.2 Specifications of the Prometheus II Overview Digital MicroMirror Device™ 3 x 1.38" DC4K dark metal devices Native resolution 4,096 x 2,160 pixels Housing Hermetically sealed DMDs and optical assembly Lamp 3kW - 7kW (Xenon lamp) Light output 11,100 lumens Screen size Up to 7.5m / 24.6 ft wide...

  • Page 172: Specifications

    CLO (Constant Light Output) Powerful SNMP agent Motorized/memorized lens (focus, zoom & shift) Advanced patented DMD cooling Options Barco CineMate App (iOS & Android) - free ACS-2048 3D add-ons Touch screen monitor, inc. Barco Commander & Communicator Pedestal CineCare Web Auro 11.1 license**...

  • Page 173: Dimensions Of The Prometheus

    13. Specifications 13.3 Dimensions of the Prometheus Overview Dimensions are given mm. 207.5 37.5 41.5 381.5 min. 31 Image 13-1 Dimensions in mm R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 174: Dimensions Of The Universal Pedestal

    13. Specifications 13.4 Dimensions of the universal pedestal Dimensions 876,3 Image 13-2 Dimensions given in millimeters. R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 175: Technical Regulations

    13. Specifications 13.5 Technical Regulations Certificates RoHS Image 13-4 Image 13-5 Image 13-6 Image 13-3 Rohs Rohs OK CE mark EAC mark R5905963 PROMETHEUS SERIES 09/03/2015...
  • Page 176 13. Specifications R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 177: Pin Configurations

    14. Pin configurations 14. PIN CONFIGURATIONS Overview • About General Purpose Inputs & Outputs (GPIO) • Pin configurations of the communication ports • Pin configurations of the ICMP communication ports • Pin configurations of the inputs R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 178: About General Purpose Inputs & Outputs (Gpio)

    General Purpose outputs The Barco Cinema Controller and the Barco ICMP have each eight (8) opto-isolated outputs available. Four (4) of the outputs on the Cinema Controller are dedicated for TI. The other general purpose outputs can be controlled via software.
  • Page 179 14. Pin configurations Output transistor • Maximum output driving voltage : V = 70 V • Maximum current : I = 30 mA • Maximum power dissipation : 120 mW Output from projector Internal projector V..V..V GPOut P GPOut P Max 120 mW GPOut N GPOut N...

  • Page 180: Pin Configurations Of The Communication Ports

    14. Pin configurations 14.2 Pin configurations of the communication ports RS232IN RS232 IN 2 RXE- Receive Data (RD or RX or RXD) 3 TXE- Transmitted Data (TD or TX or TXD) 5 GND Signal Ground (GND) General Purpose IN/OUT General Purpose In/Out 3D Input Reference P 3D Input Reference N 3D Display Reference P...
  • Page 181 14. Pin configurations Name +24V 3D connector Name Name +12V +12V Grnd 3D Input Reference - Grnd 3D Display Reference + RS232 RX 3D Display Reference - RS232 TX CONN_3D MODE - CONN_3D_MODE + CONN_SYNC - CONN_SYNC + 3D Input Reference + R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 182: Pin Configurations Of The Icmp Communication Ports

    14. Pin configurations 14.3 Pin configurations of the ICMP communication ports RJ-45 pin configuration Image 14-3 Audio Channels: AUDIO-AES 1-8 Audio channel AES pair RJ-45 pin 1, 2 3, 4 5, 6 7, 8 AUDIO-AES 9-16 Audio channel AES pair RJ-45 pin 9, 10 11, 12...
  • Page 183 14. Pin configurations GPO 5-8 Definition RJ-45 pin EXT_GPOUT_6_P EXT_GPOUT_6_N EXT_GPOUT_7_P EXT_GPOUT_7_N EXT_GPOUT_8_P EXT_GPOUT_8_N General Purpose Input: GPI 1-4 Definition RJ-45 pin EXT_GPIN_1_P EXT_GPIN_1_N EXT_GPIN_2_P EXT_GPIN_2_N EXT_GPIN_3_P EXT_GPIN_3_N EXT_GPIN_4_P EXT_GPIN_4_N GPI 5-8 Definition RJ-45 pin EXT_GPIN_5_P EXT_GPIN_5_N EXT_GPIN_6_P EXT_GPIN_6_N EXT_GPIN_7_P EXT_GPIN_7_N EXT_GPIN_8_P EXT_GPIN_8_N...
  • Page 184 14. Pin configurations 568A and 568B may be used interchangeably in a system SO LONG AS both ends of a given cable are terminated the same way. 568A + 568B wiring is a crossover cable. 568A + 568A wiring is a straight cable. 568B + 568B wiring is a straight cable.

  • Page 185: Pin Configurations Of The Inputs

    14. Pin configurations 14.4 Pin configurations of the inputs DVI-D DVI IN A & B RX2- DDC Data RX0 Shield RX2+ RX1- RX2 Shield RX1+ Hot Plug Detect TMDS Clock Shield RX1 Shield RX0- TMDS RXC+ DDC Clock RX0+ TMDS RXC- R5905963 PROMETHEUS SERIES 09/03/2015...
  • Page 186 14. Pin configurations R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 187: Environmental Information

    A. Environmental information A. ENVIRONMENTAL INFORMATION Overview • Disposal information • RoHS compliance • Production address • Importers contact information R5905963 PROMETHEUS SERIES 09/03/2015...

  • Page 188: Disposal Information

    For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee...

  • Page 189: Rohs Compliance

    Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period” of Chinese Mainland.
  • Page 190 A. Environmental information Projector 零部件名稱 有毒有害物質或元素 铅（Pb） 镉（Cd 多溴联苯（PBB） 多 溴 二 苯 醚 汞（Hg） 六价铬（Cr6+） （PBDE） 电路板组件* 燈泡 電源模組 电源线 外部信号连接线 x 風扇 散熱模組 (金屬部 分) 讀卡器 喇叭 (電路板組件 除外) 附電池遙控器 (電 路板組件除外) *： 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等 ○：表示该有毒有害物质在该部件所有均质材料中的含量均在《电子信息产品中有毒有害物质的限量要求标准》规定的限量要求以下 ×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出《电子信息产品中有毒有害物质的限量要求标准》规定的限量要 求；但是上表中打“×”的部件，其含量超出是因为目前业界还没有成熟的可替代的技术，且符合歐盟RoHS指令的排外條款及電池指令 Turkey RoHS compliance Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.

  • Page 191: Production Address
