3.7

Power loop through to the projector electronics

This procedure explains how to provide the projector electronics with power in case no UPS unit is used.
Note that the projector is by default configured for use without UPS. So, the short power link cable is already
installed.
Necessary tools
No tools.
Necessary parts
Short power link cable with plug type C13/C14
How to loop through the power
1. Plug in the short power cable (1) which was delivered with the projector.
Warning: Always use the Barco short power cable which is delivered with the projector.

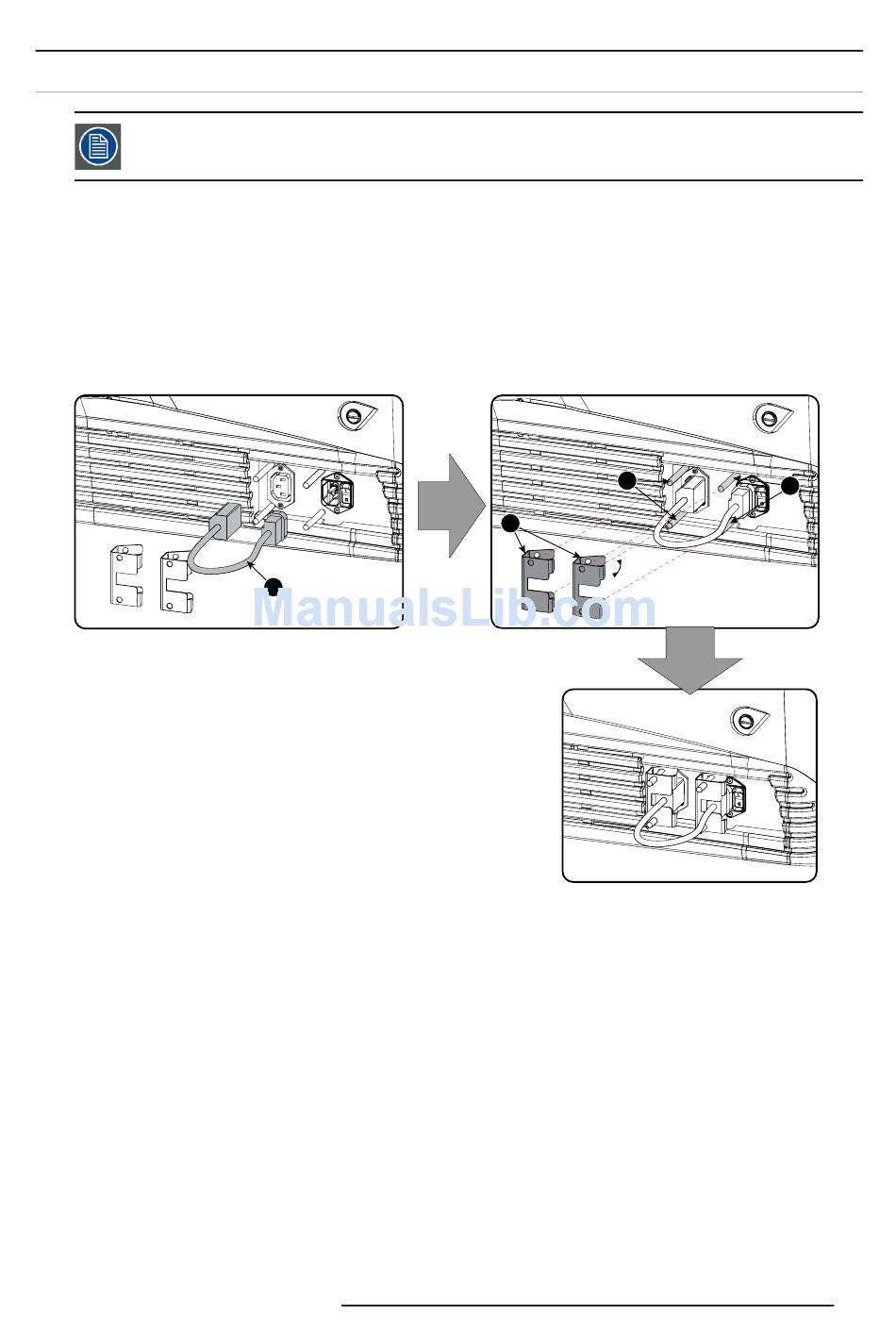

Image 3-16
Power loop through connection
2. Secure both plugs of the short cable with a fixation spring (2). Handle as follow:
- Squeeze the fixation spring together.
- Slide the fixation spring on the fixation pins (3) while squeezing together and push it against the power plug.
- Release the fixation spring.
R5905963 PROMETHEUS SERIES 09/03/2015
1
3
2
