10.3 Removal of the input cover

Necessary tools
Flat screwdriver
How to remove
1. Release both captive screws at the top of the input cover using a flat screw driver.

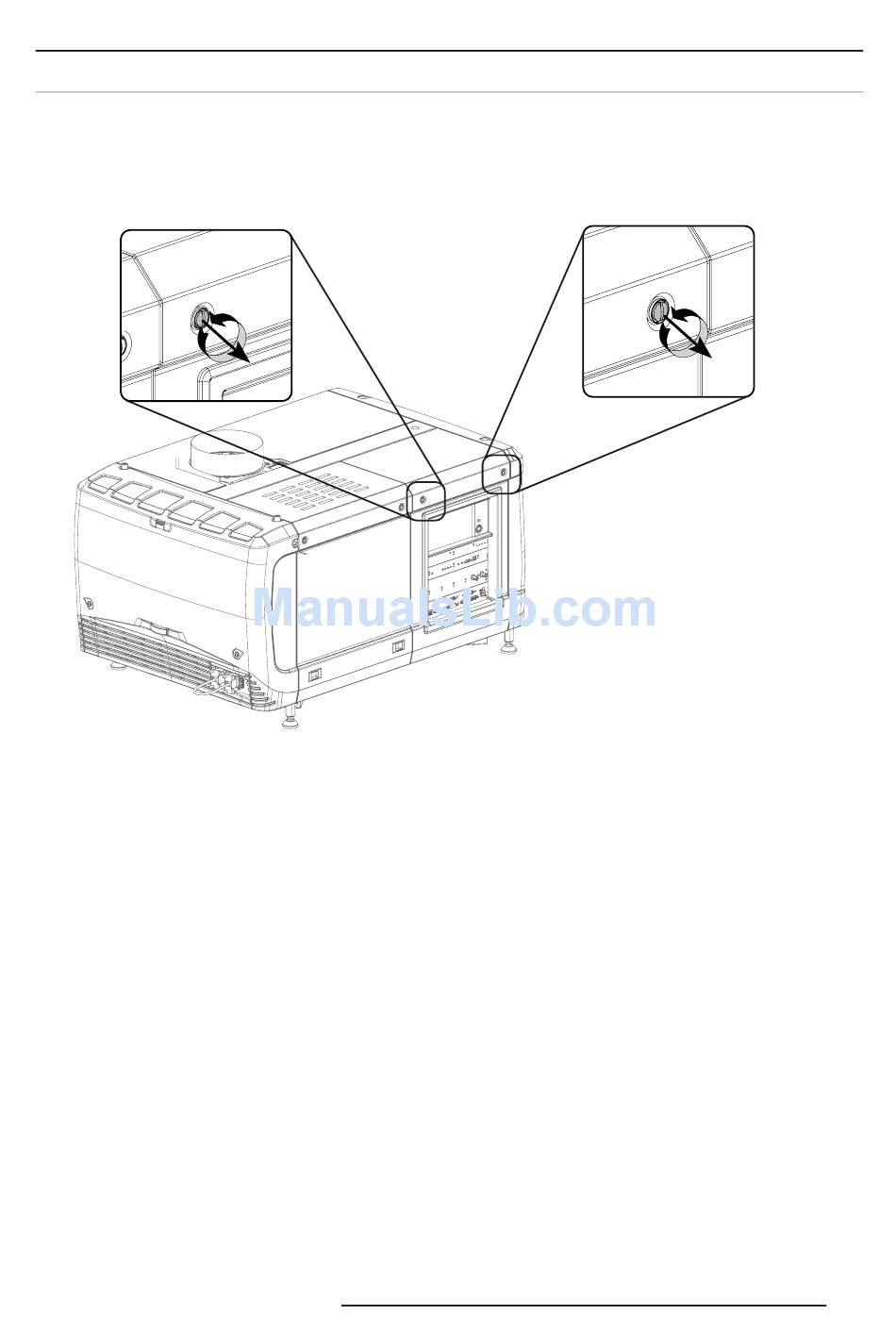

Image 10-6
Input cover, fixation
2. Remove the input cover as follow:
a) Pull the bottom side of the cover to you until the cover is unlocked.
b) Slide the full cover away from the projector.
