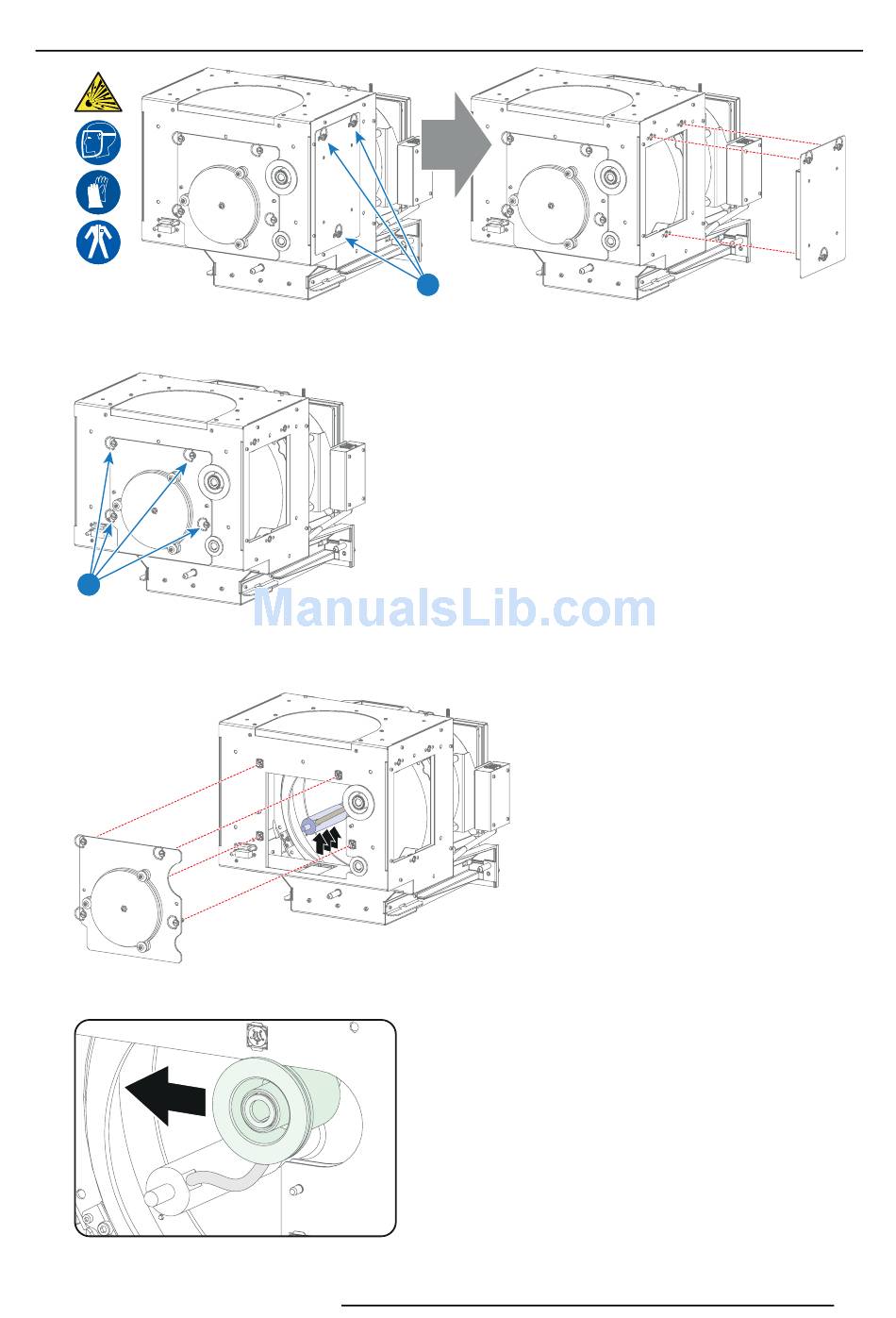

3. Release the four quarter turn screws (reference 5 image 4-19) of the UV blocker assembly as illustrated. Make sure that the
anode support remains in its position while releasing the screws.
5
Image 4-19
4. Support the xenon lamp inside the Lamp House with one hand while removing the UV blocker assembly from the lamp house.
Warning:
Supporting the xenon lamp with one hand prevents the xenon lamp from dropping and colliding with the chassis of
the Lamp House.
Image 4-20
5. Slide out the anode connector from the Lamp House. The anode connector remains attached with the lamp anode wire.
Image 4-21
R5905963 PROMETHEUS SERIES 09/03/2015
4
4. Lamp & Lamp House
49
