Integrated Cinema Processor (ICP)

In case the projector is equipped with a Barco ICMP no ICP board is inserted. All ICP functionality is integrated
in the Barco ICMP.
.
LEDs and ports on the Integrated Cinema Processor

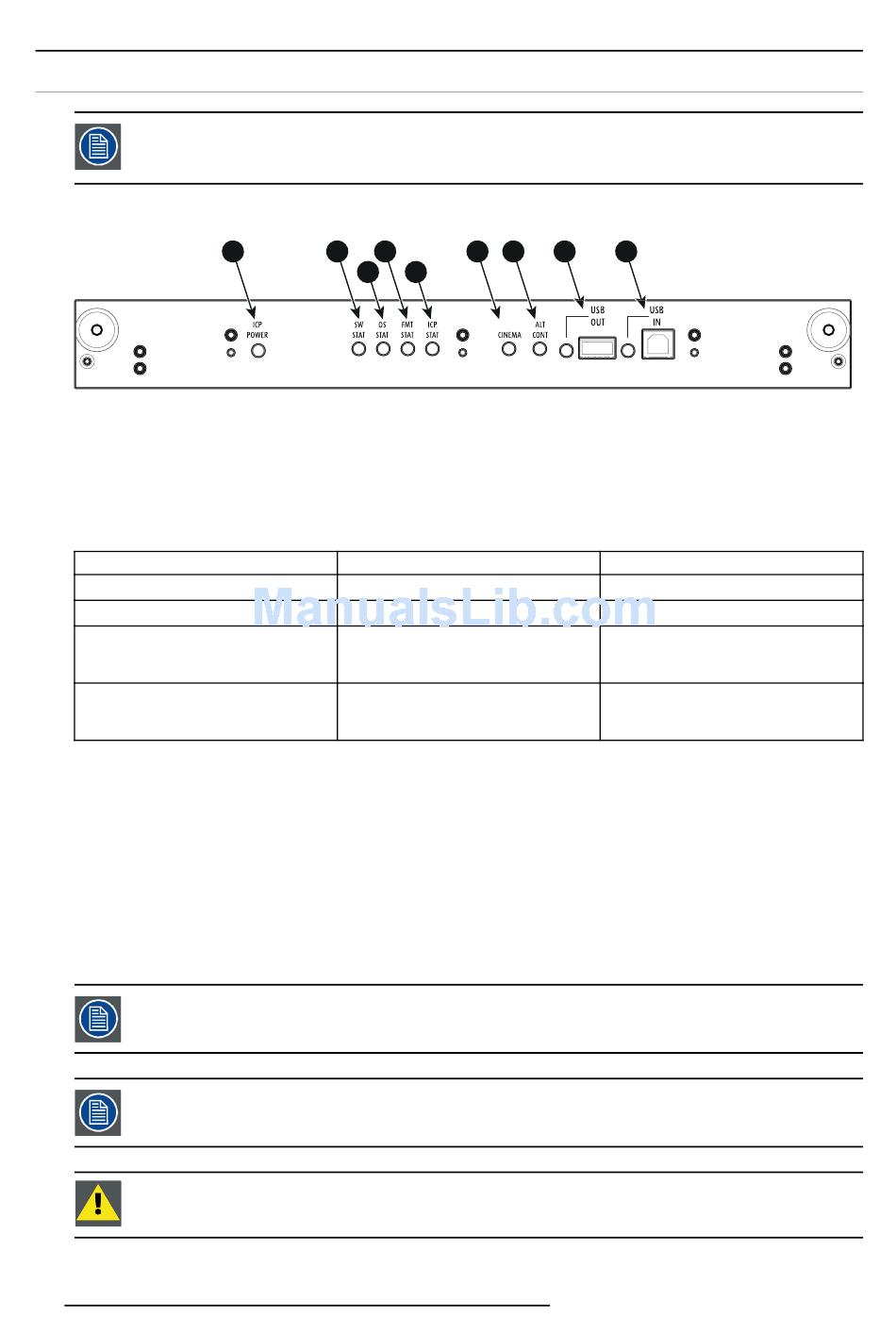

Image 6-3
1 ICP is powered.
2 ICP software state, normal operation is green blinking.
3 ICP operating system state, normally full green .
4 ICP FMT configuration state, normally full green.
5 ICP MAIN configuration state, normally full green.
6 CINEMA port selected. When on, LED 7 will be out.
7 ALTERNATIVE port selection. When on, LED 6 will be out. (note that this function is disabled. Led never lights up)
8 USB, for future use.
9 USB, for future use.
LED diagnostic
State description
Software state (LED reference 2)
Operating System state (LED reference 3) green
FMT FPGA state (LED reference 4)
ICP FPGA state (LED reference 5)
ICP functions:
• Stores all projector files. When board is replaced; clone package must be reloaded.
• Stores and generates test patterns.
• Scaling to native resolution, re-sizing, masking, line-insertion de-interlacing, subtitle overlay, color space conversion,
de-gamma, color correction
• Source Selection between alternative content and cinema content.
• Stores a Certificate and Private Key needed for Playback validation
• Contains a real time clock, which must be synchronized with the GMT/UTC time stored in the link decryptor module or Integrated
Media Block (see Communicator software)
• Handles unpacking of special video formats
The ICP board spare part kit is not default programmed for a Prometheus projector. When using this board in
a Prometheus projector the software must be re-installed after installation of the board.
When installing a new ICP board in a Prometheus projector the Spatial Color Calibration file must be reloaded
and activated. See chapter .
C
AUTION
92
1 2 4
3
ICP SW OS
POWER STAT STAT
Normal operation
flashing green
green
green
:
Make sure not to short circuit the battery on the board. That will destroy the board completely !
6 7 8
5
FMT ICP ALT
STAT STAT CINEMA CONT
R5905963 PROMETHEUS SERIES 09/03/2015
9
USB USB
OUT IN
Error state
red or orange
off, red or yellow
red : unable to configure the FPGA
yellow : FPGA is loaded with the Boot
application
red : unable to configure the FPGA
yellow : FPGA is loaded with the Boot
application
