7. ICMP
7.3

ICMP communication ports

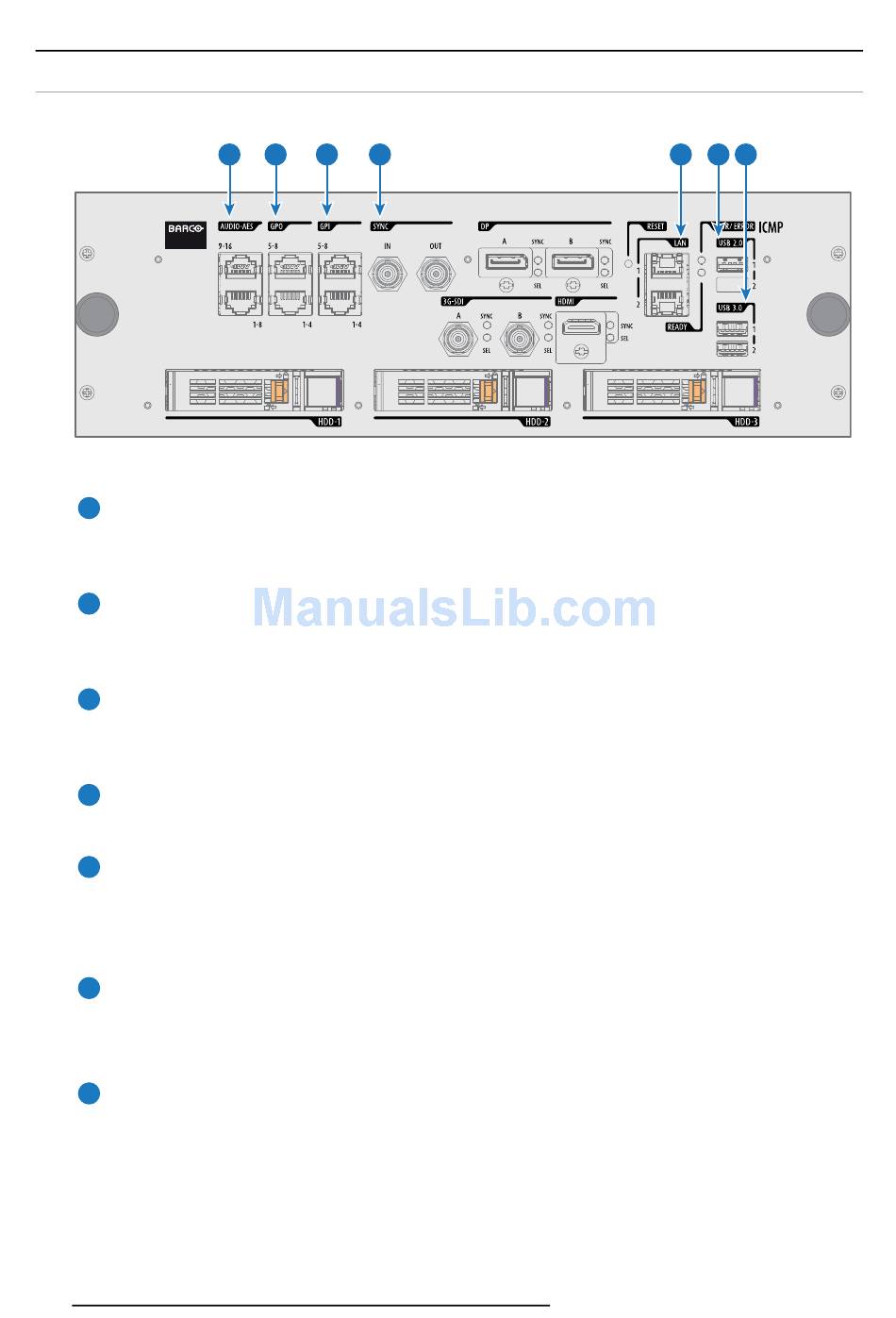

Location of the communication ports
Image 7-5
Functionality
1
AUDIO-AES 1-8 (9-16)
ICMP outputs sixteen audio signals equitably distributed over these two RJ45 connectors, which can be configured
independently. The mapping of audio channels (content) on each audio output (AES outputs of the ICMP) is performed by
configuring the ICMP via the Communicator software. Please refer to the Communicator user guide for further information.
GPO 1-4 (5-8)
2
These RJ45 connectors can be used to send trigger signals to other devices. The mapping of user Cues (output Cues) on
each General Purpose Output (GPO) is configured via the Communicator software. Please refer to the Communicator
user guide for further information.
GPI 1-4 (5-8)
3
These RJ45 connectors can be used to receive trigger signals from other devices. The mapping of the General Purpose
Input (GPI) on each input Cues is configured via the Communicator software. Please refer to the Communicator user
guide for further information.
SYNC IN / OUT
4
Synchronization signal IN and OUT: Reserved for multiple-projector projection.
LAN 1 (2)
5
The ICMP can be connected to a LAN (local area network) using one of the Ethernet ports. These LAN port are used
for 'content' transfer.
NOTE: These ports are optionally used to connect to external content storage sources. Control of the ICMP is done via the
same IP address as the projector.
USB 2.0
6
The ICMP can be connected to a USB 2.0 Media to load content. The USB port can be used to load content (DCP) or
keys (KDM).
NOTE: It is recommended to use the USB 3.0 ports for faster ingest.
USB 3.0
7
The ICMP can be connected to a USB 3.0 Media to load content. The USB port can be used to load content (DCP), or
keys (KDM), or software update.
NOTE: These ports are recommended for fast ingest when connected to an appropriate USB 3.0 source.
